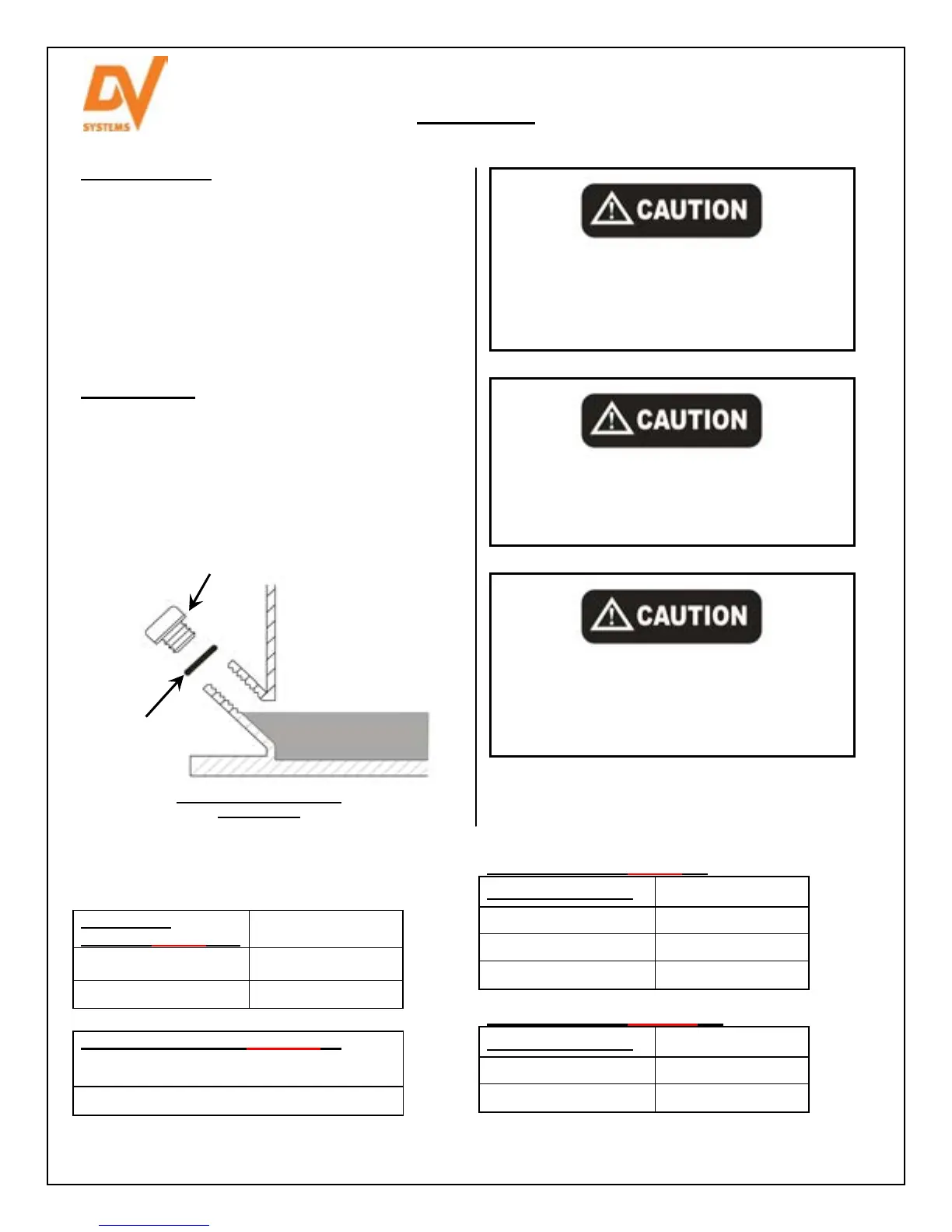

Lubrication
Oil Filler Plug
Each Compressor Unit built is extensively tested at the
factory before shipment. The Unit is shipped with the
original oil in it as used for testing purposes.
Check the oil level and for any oil leaks on a daily
basis. This must be done when the Unit is off. Top up
the Oil level on a monthly basis.
Use only DV Systems Premium Compressor Oil. Also,
do not mix the DV Systems oil with any other lubricant.
Oil Changes.
Drain the existing oil from the Unit. Running the Unit
prior to draining the oil will ensure that the oil will drain
relatively quickly.
Fill the Oil Reservoir to the bottom thread at the Oil
Filler Plug. Do not under or overfill. See drawing below.
Do not attempt to operate the Unit without
fir
st checking whether there is oil in the
Pump Crankcase. Add oil as required.
Serious damage may result from use,
however limited, without oil.
Use of improper oil may negatively affect
Compressor performance or shorten Unit life.
Resulting problems are not covered by the
DV Systems Warranty.
With limited Compressor use or installing in a
very humid environment, condensation
(water) may form in the Crankcase with the
oil. If this occurs, change the oil more often
than indicated on the Maintenance Schedule.
O Ring
Proper Oil Level
(to bottom thread of Oil Fill Port)
Section Through Crankcase
At Oil Fill Port
The following oils are available from your DV
Systems Distributor.
Premium Mineral Oils
Temperature
20 Weight: ‘PR-20-4’ Up to 90°F (32°C)
30 Weight: ‘PR-31-4’ Above 90°F (32°C)
is
used in high heat or high duty applications or
when Beltguard Aftercoolers are used.
20 Weight: ‘OJ-2000’
The following Maintenance Kits are available from
your DV Systems Distributor. The Kits include both
the Oil and Filters.
Kits c/w 20 Weight Mineral Oil
DV Systems Pumps Kit Part Number
123, 223 MK-223
247 MK-247
447 MK-447
Kits c/w 20 Weight Synthetic Oil
DV Systems Pumps Kit Part Number
247 MKS-247
447 MKS-447
