Assembly of the 4-BTV Antenna Vertical Sections

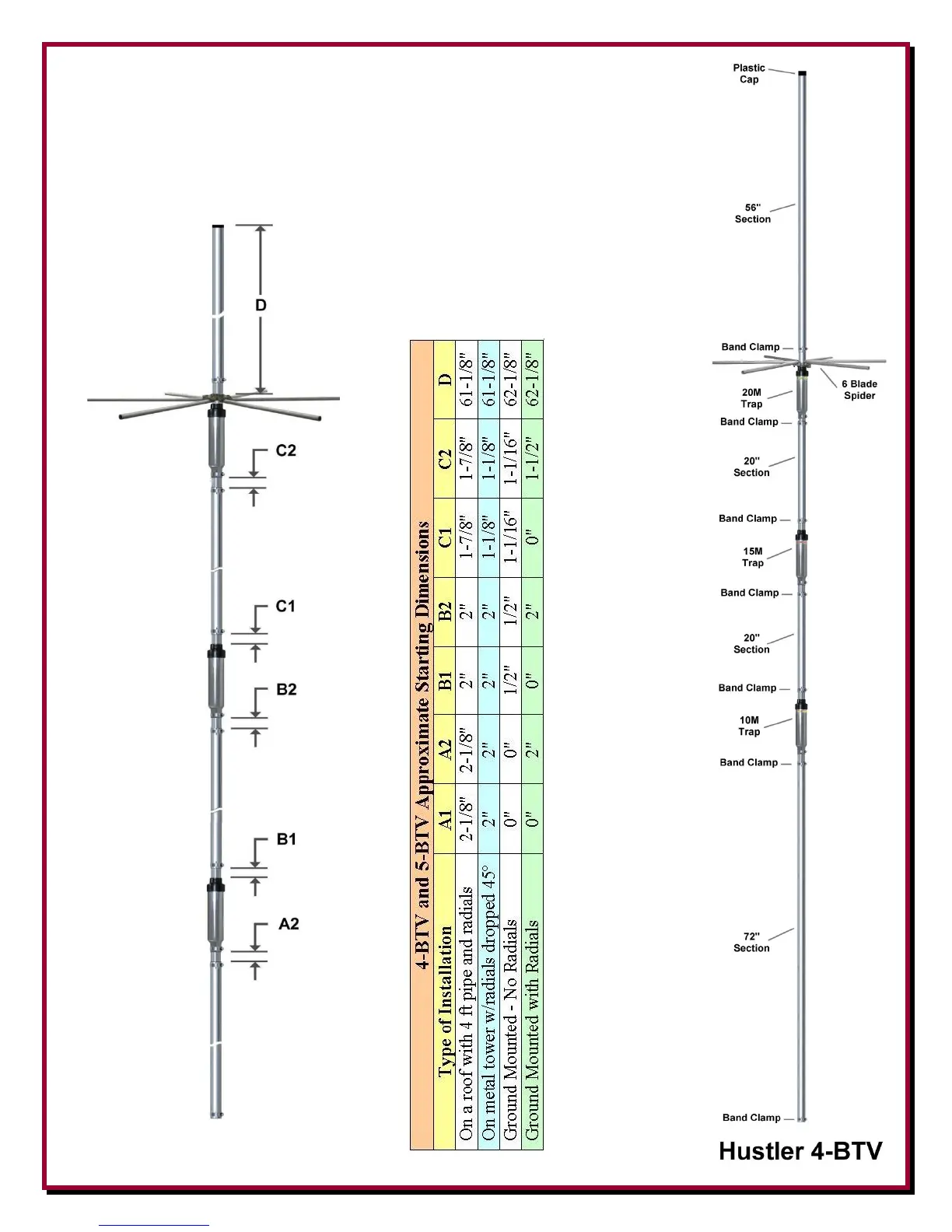

Assemble the 4-BTV as shown in these pictures.
The dimensions between the aluminum sections
and the traps are shown in the chart below.
The six bladed spider is mounted just
above the 20 Meter trap.
When completed, go to Page 27.
