- 29 -

Installing Radials & Feedline on the Hustler

Base

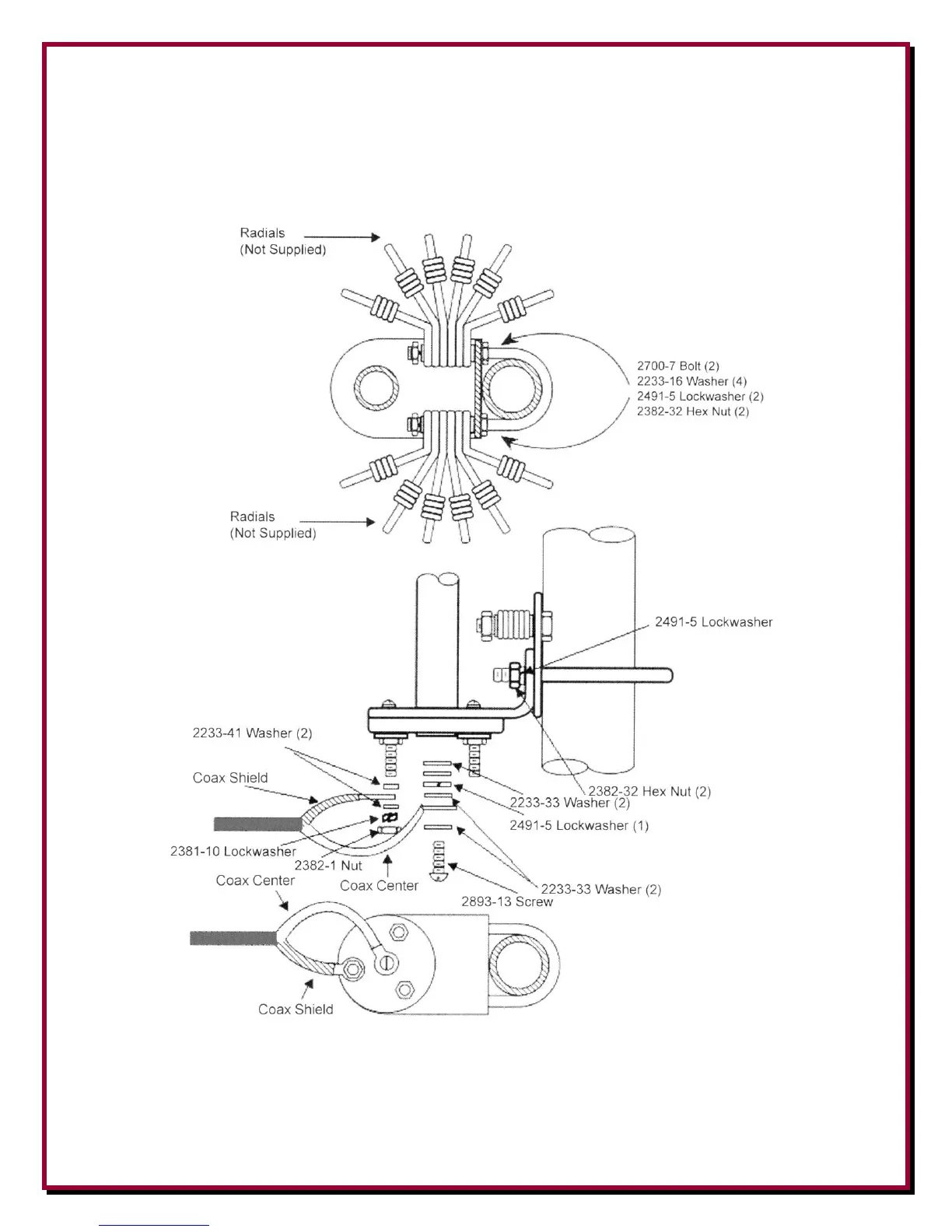

If you are connecting the radial wires directly to the antenna base, use the following drawing

showing the hardware required. This diagram also shows connecting the feedline direct to the

Hustler

base using the supplied lugs for coax connections.

For radial wires, the better alternative is to use an optional DXE-RADP-3 DX Engineering Radial

Plate.

Additionally, the feedline can be connected using other methods using DX Engineering custom

made feedline options as shown in Chapter 6.
