DX Engineering 5-BTV - Hustler Base Assembly Breakdown

- 26 -
Hustler
®
Base Assembly
The Hustler
®

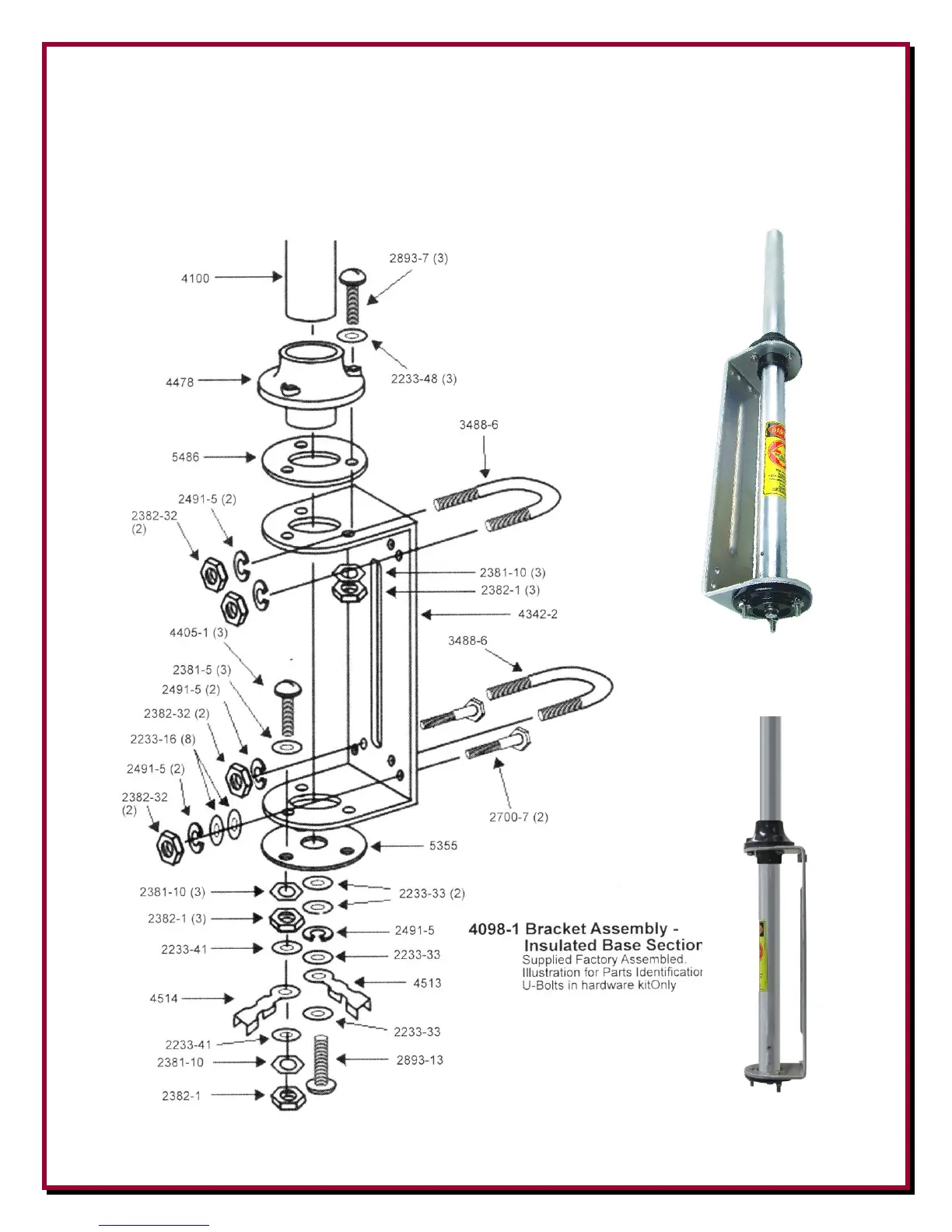

Base Assembly (HSR-4098-1) is pre-assembled from the factory. The following
diagram shows all the parts, including the parts that are used for basic mounting on a 1 inch to 1-3/4
inch OD mounting pipe using the included U-Bolts from New-Tronics.
