- 25 -
Assembly of the 6-BTV Antenna Vertical Sections

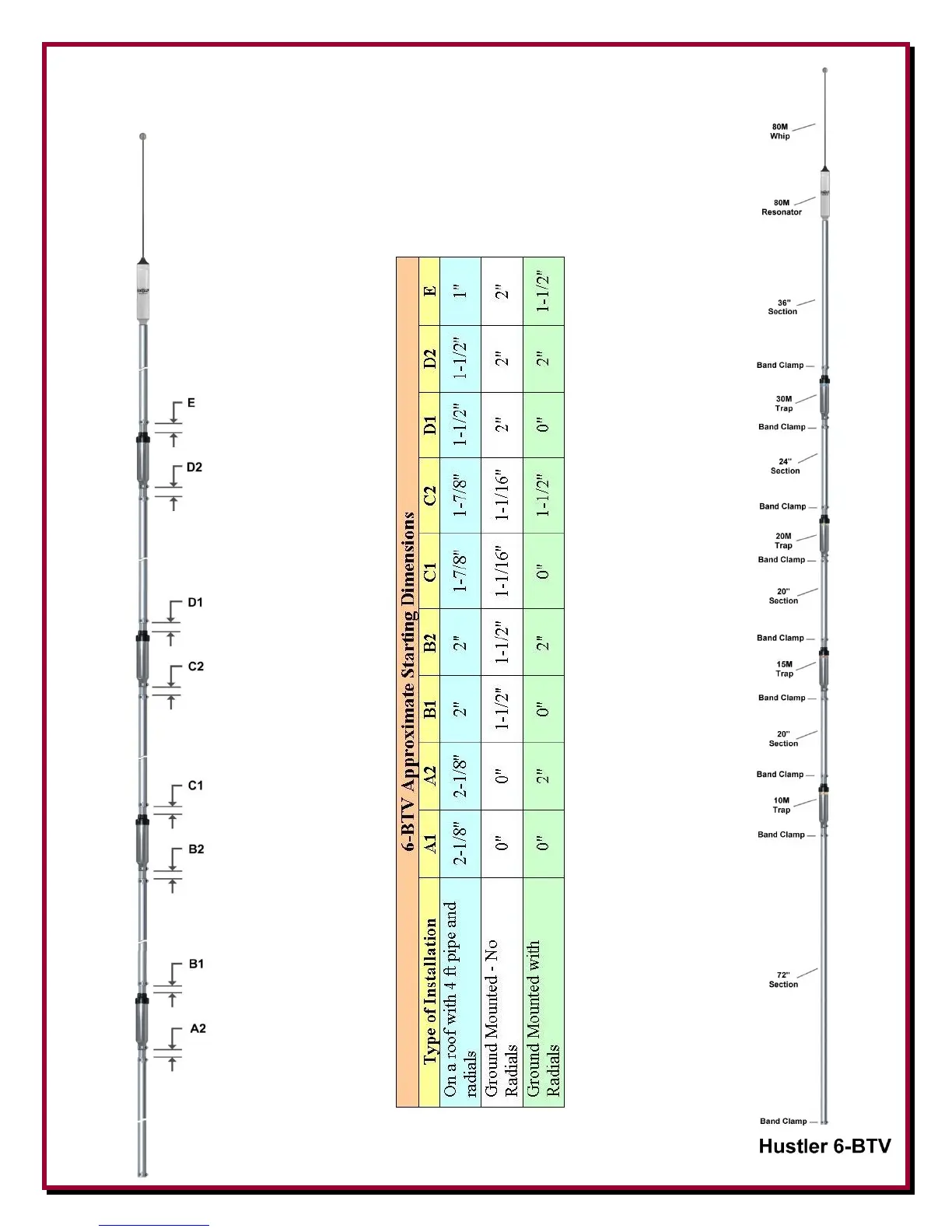

Assemble the 6-BTV as shown in these two pictures.
The dimensions between the aluminum sections
and the traps are shown in the chart below.
