DX Engineering 5-BTV - Antenna Section Dimensions for Tuning

- 45 -
vinegar smell) and it does not contain metal (PTX-82180 - Black RTV Silicone).
You must adjust each trap with the antenna completely assembled – traps cannot be adjusted before
assembly. It is not necessary to remove each trap from the larger tubing below it, or measure it, in

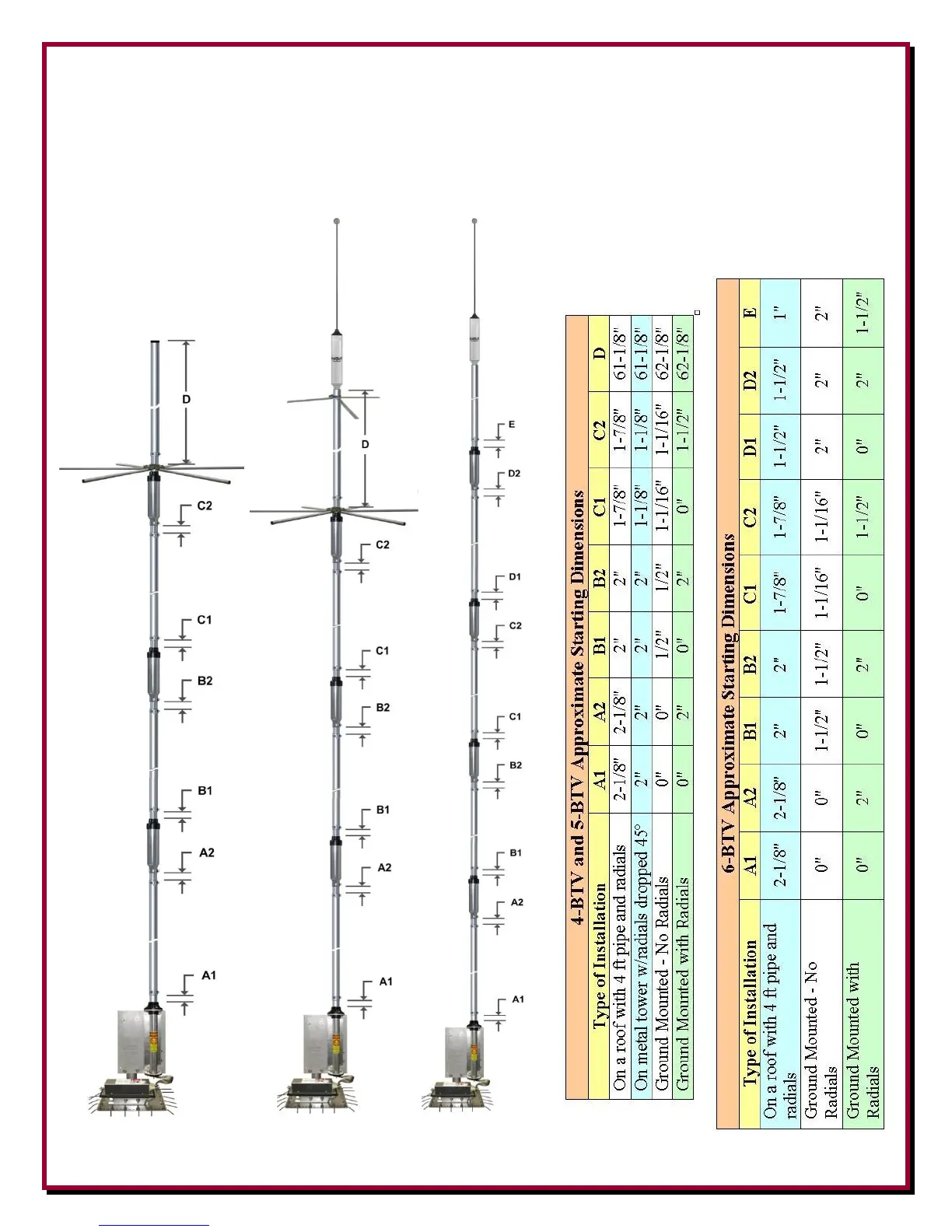

order to make the trap sleeve adjustment to tune the antenna. The lettered dimensions charted below
are only starting points and will normally be changed for fine tuning.
4-BTV 5-BTV 6-BTV
