Dymax ECE Series UV Flood-Lamp Systems User Guide
ECE ZIP Shutter Curtain Assembly Replacement
Dymax recommends that you check the ECE ZIP Shutter curtain for wear each time you change the lamp.
If it shows any signs of wear, replace it. Additional curtain assembly replacements can be purchased
through Dymax Customer Service.
CAUTION! SHARP EDGES! The edge of the stainless steel curtain is extremely
sharp. To prevent injuries, always wear gloves that are resistant to cuts when handling or
installing equipment. We recommend, at a minimum, CE Cut Level 5 gloves (included with
kit).

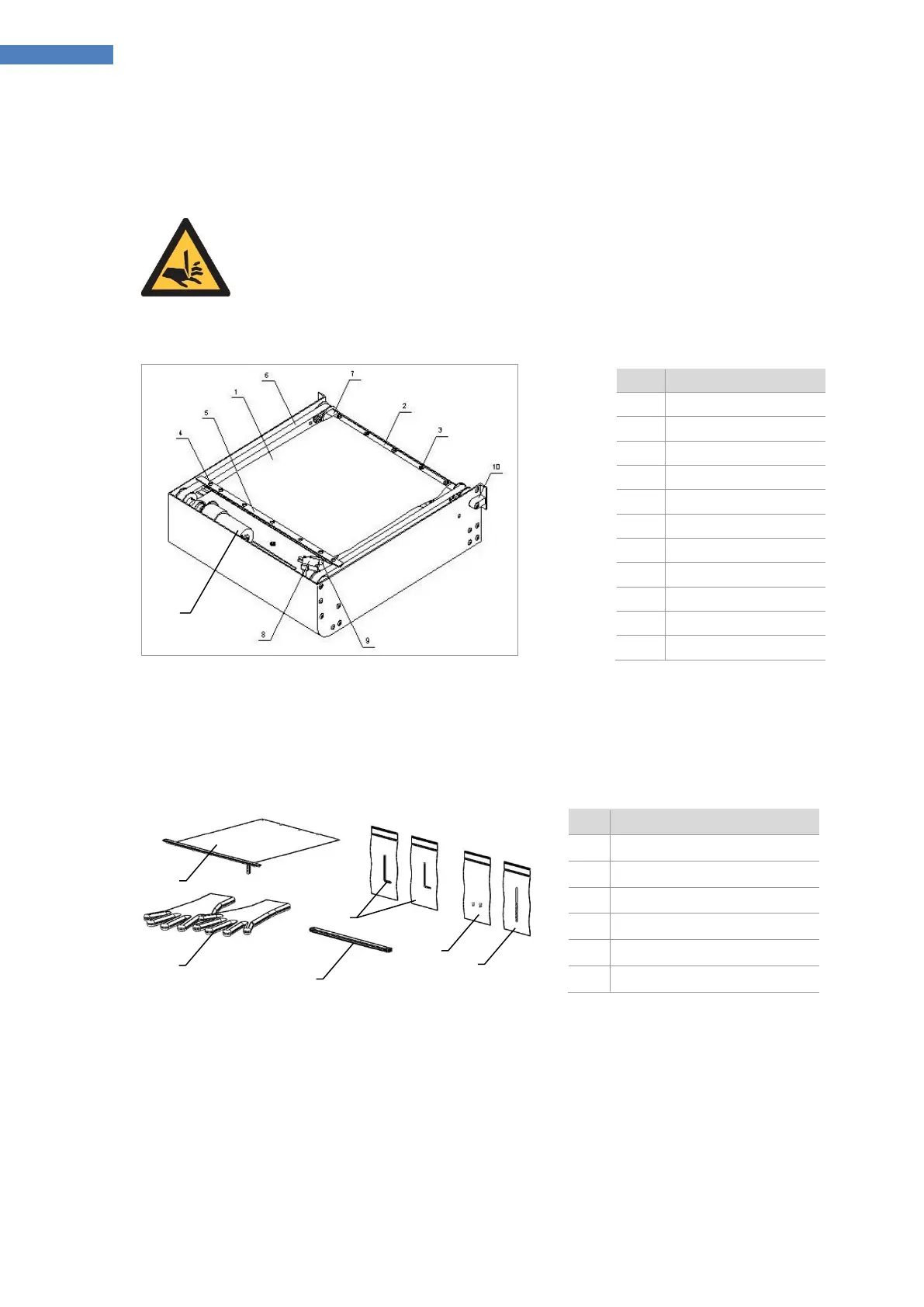

Figure 20. ECE ZIP™ Curtain Assembly Diagram (Bottom View)
1. The Stainless Steel Curtain Assembly Kit (PN 41097) will contain the items show in Figure 20. If you are
replacing a stainless steel curtain, items 3, 5, and 6 are not needed.
Figure 21. Stainless Steel Curtain Assembly Kit
2. After putting on the recommended cut-resistant gloves, remove the three Retaining Screws on each
side of the Lower Cover of the Shutter (Figure 23). Use the 2-mm Allen Wrench provided to do so.
#
Description
1
Curtain
2
Roller Bar
3
Screws (5)
4
End Screws (2)
5
Clamp Bar
6
Belts
7
Roller and Pulley
8
Limit Switch
9
Limit Switch Standoff
10
Belt Tension
11
Belt Drive Motor
11
2
1
3
5
6
4
#
Description
1
SS Curtain Assembly
2
Cut-Resistant Gloves (Level 5)
3*
Black Protective Wear Strip
4
Allen Wrenches
5*
M3 x 6 mm Screws (Qty: 2)
6*
Drill Bit #30
*Not needed if replacing a stainless steel curtain
