9

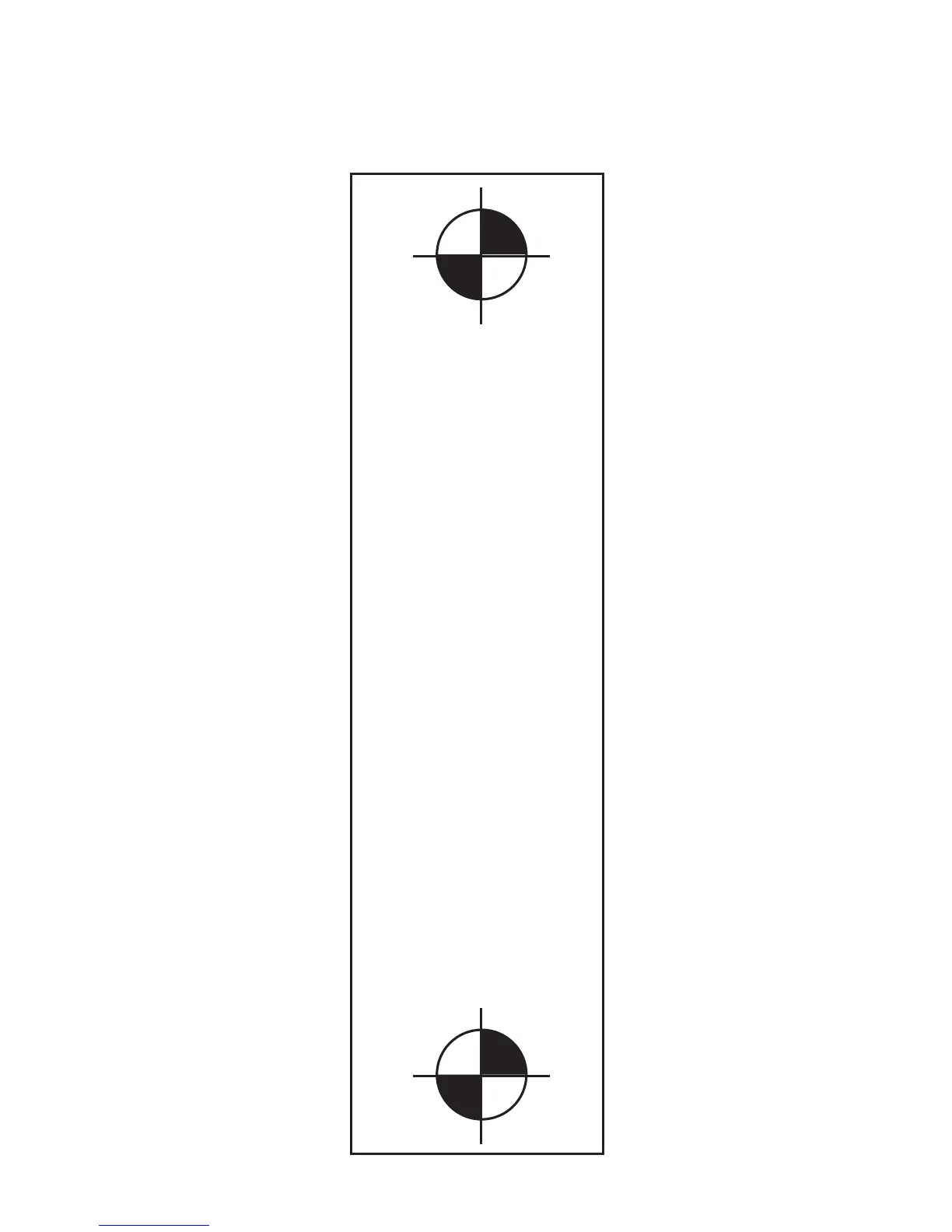

Mounting Template
When mounting the scale display to a non-magnetic surface, use the template below to
determine the location for the screws.
4 3/4 in
120 mm
