ASSEMBLY INSTRUCTIONS

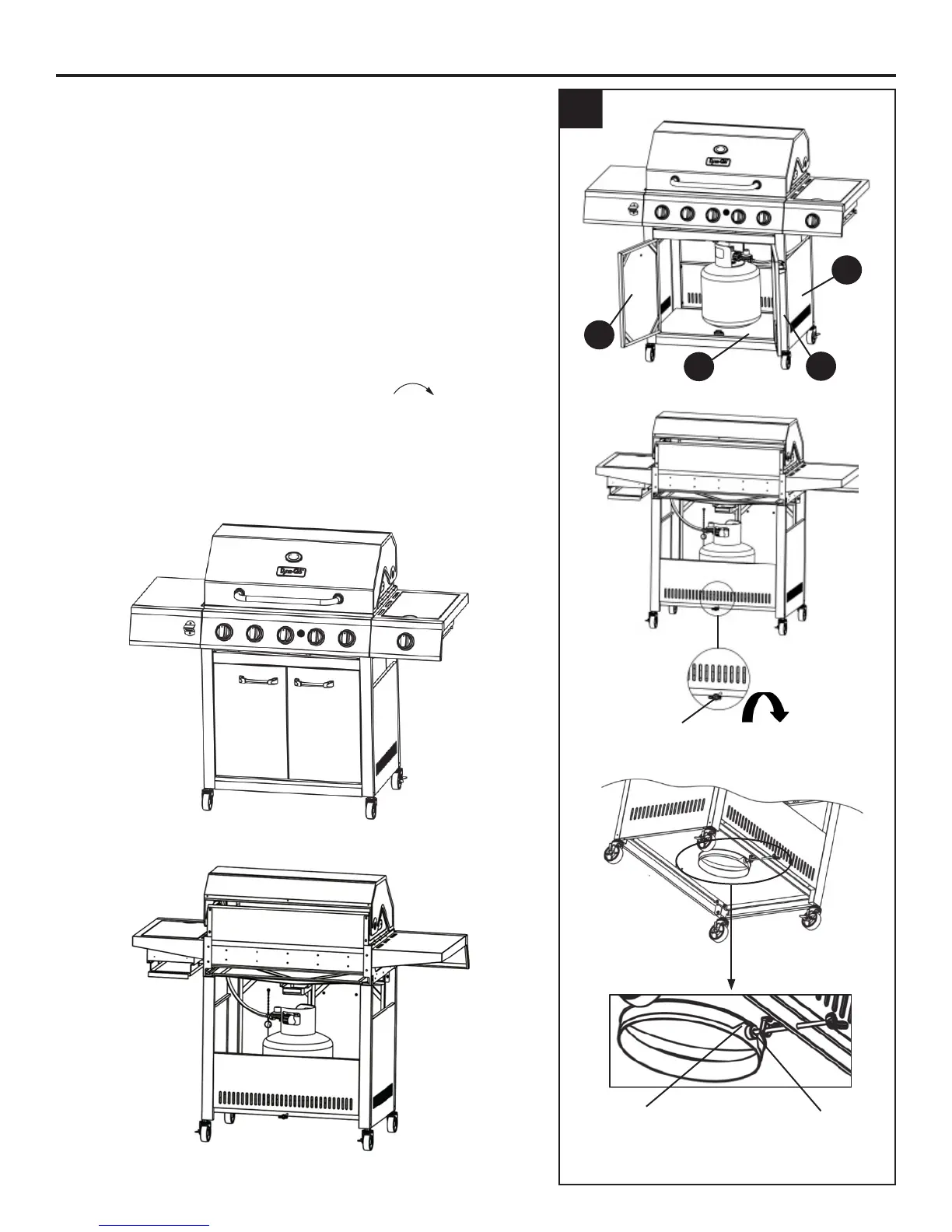

19. Open the left door assembly (R) and right
door assembly (Z),insert hose/regulator
assembly into the cart assembly through the
clearance above cart Right side panel
assembly (A1). Place gas cylinder (sold
separately) into the nesting hole located in
the Bottom shelf (U). Rotate the gas
cylinder until the hose/regulator coupling aligns
with the threaded valve of the cylinder. Hand-
tighten the hose/regulator coupling to the
threaded valve of the LP gas cylinder.
Tighten the tank screw clockwise in the
rear of cart until the cylinder is secured in
place inside the nesting hole of the Bottom
shelf (U).
19
Tank
Screw
U
R
A1
Front View
Rear View
Fully Assembled
Z
Tank
Screw
LP Gas
Cylinder
