ASSEMBLY INSTRUCTIONS

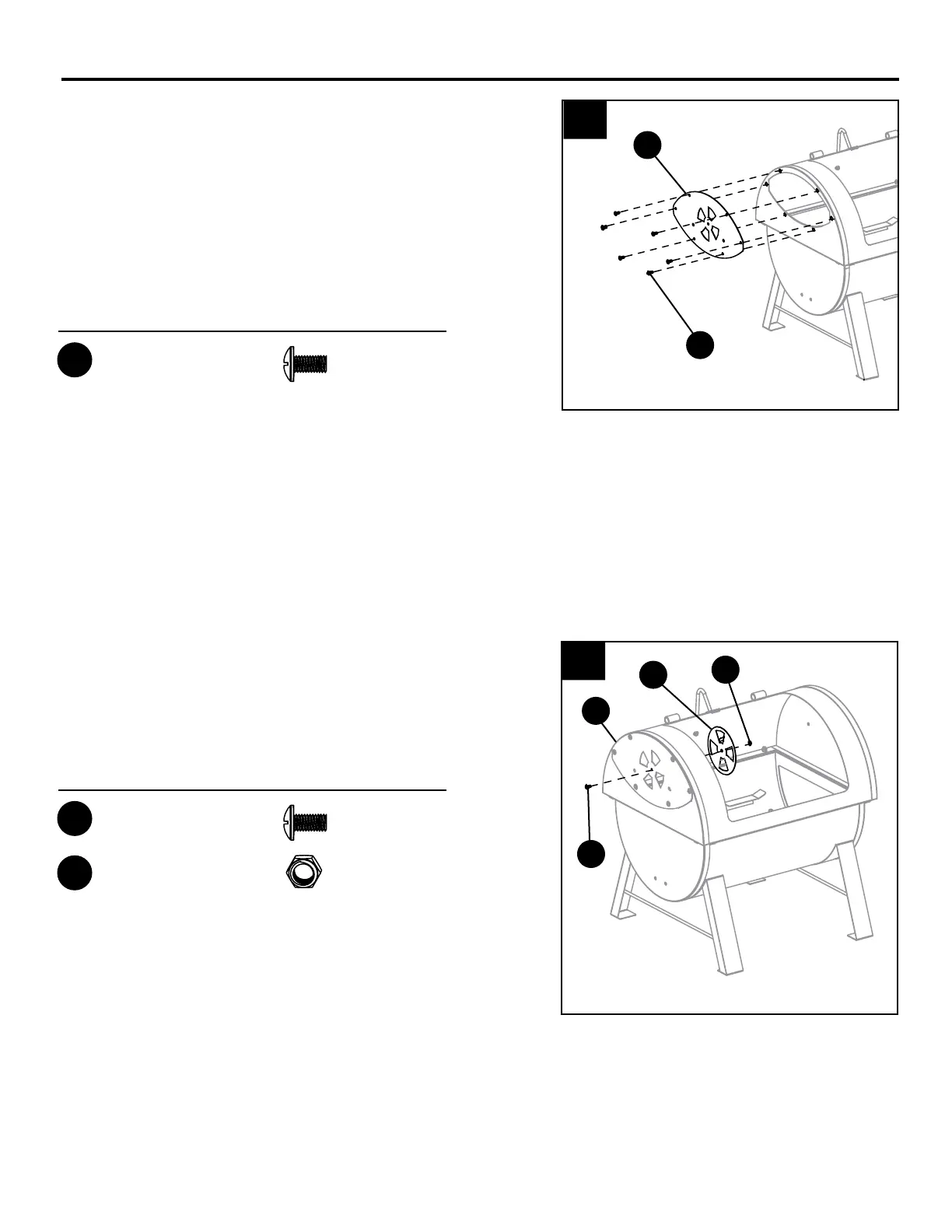

5. Attach the rebox adapter plate (M) using six
M6 x 12 bolts (AA).
6. Attach the damper plate (H) to the inside of the
adapter plate (M) using one M6 x 12 bolt (AA) and
one M6 lock nut (CC).
M
6
Hardware Used
AA
M6 x 12mm
Bolt
x 6
M
5
AA
CC
Hardware Used
AA
M6 x 12mm
Bolt
x 1
CC
M6 Nut Lock
x 1
H
AA
