9
ASSEMBLY INSTRUCTIONS

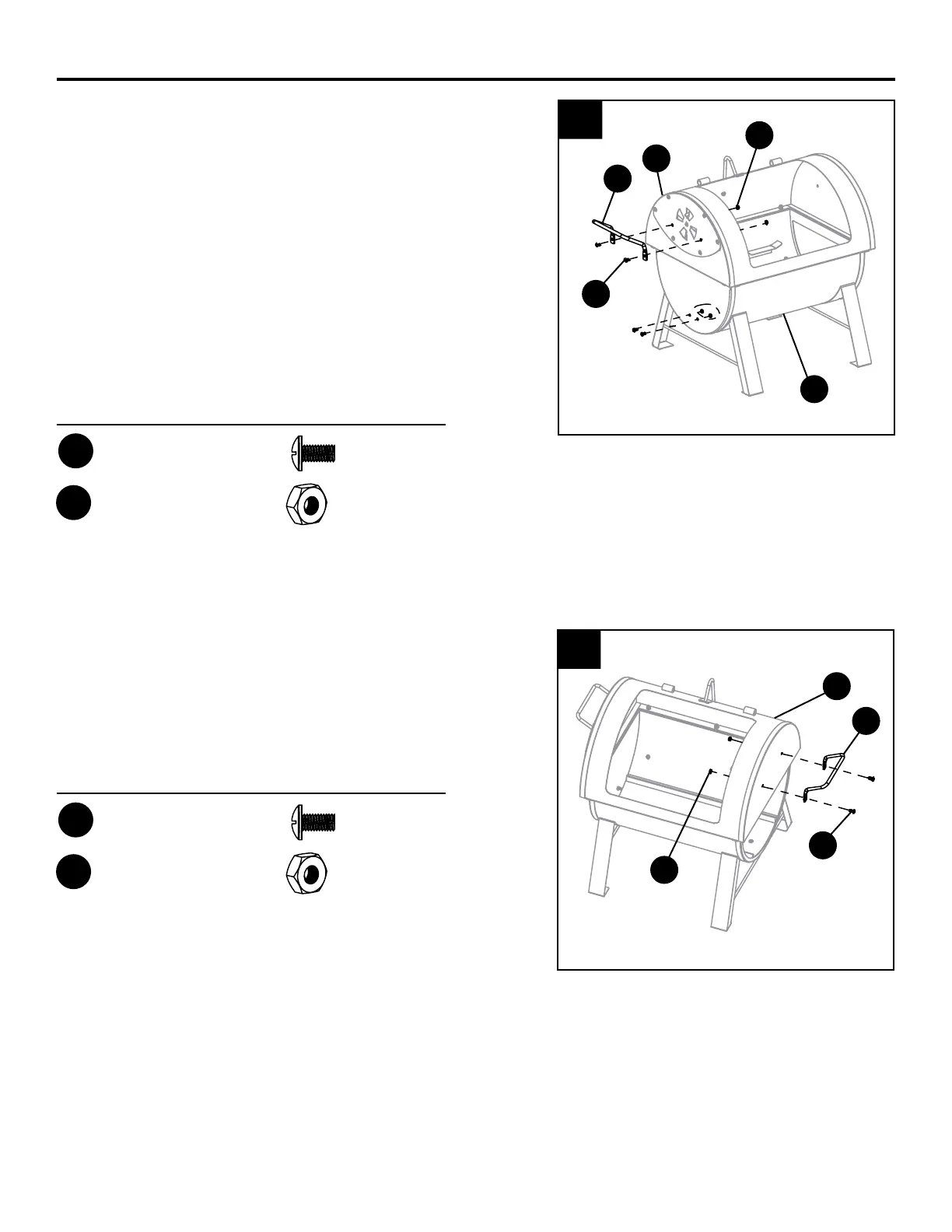

7. Attach the side handle (E) to the adapter plate (M)
using two M6 x 12 bolts (AA) and two M6 nuts (BB).
Use two M6 x12 bolts (AA) and two M6 nuts (BB)
for lling the two holes on the bottom section of
the rebox (K).
Note: This grill is also compatible as an offset
smoker box. The bottom holes are pre-drilled for
use with a support bracket (not included). For
more information on using this grill as an offset
smoker box, see Page 13.
8. Attach the other side handle (E) to the top section
of the rebox (L) using two M6 x 12 bolts (AA)
and two M6 nuts (BB).
M
AA
7
8
Hardware Used
BB
M6 Nut
x 4
AA
M6 x 12mm
Bolt
x 4
E
BB
K
Hardware Used
BB
M6 Nut
x 2
AA
M6 x 12mm
Bolt
x 2
E
AA
L
BB
To Next Page
