10
ASSEMBLY INSTRUCTIONS

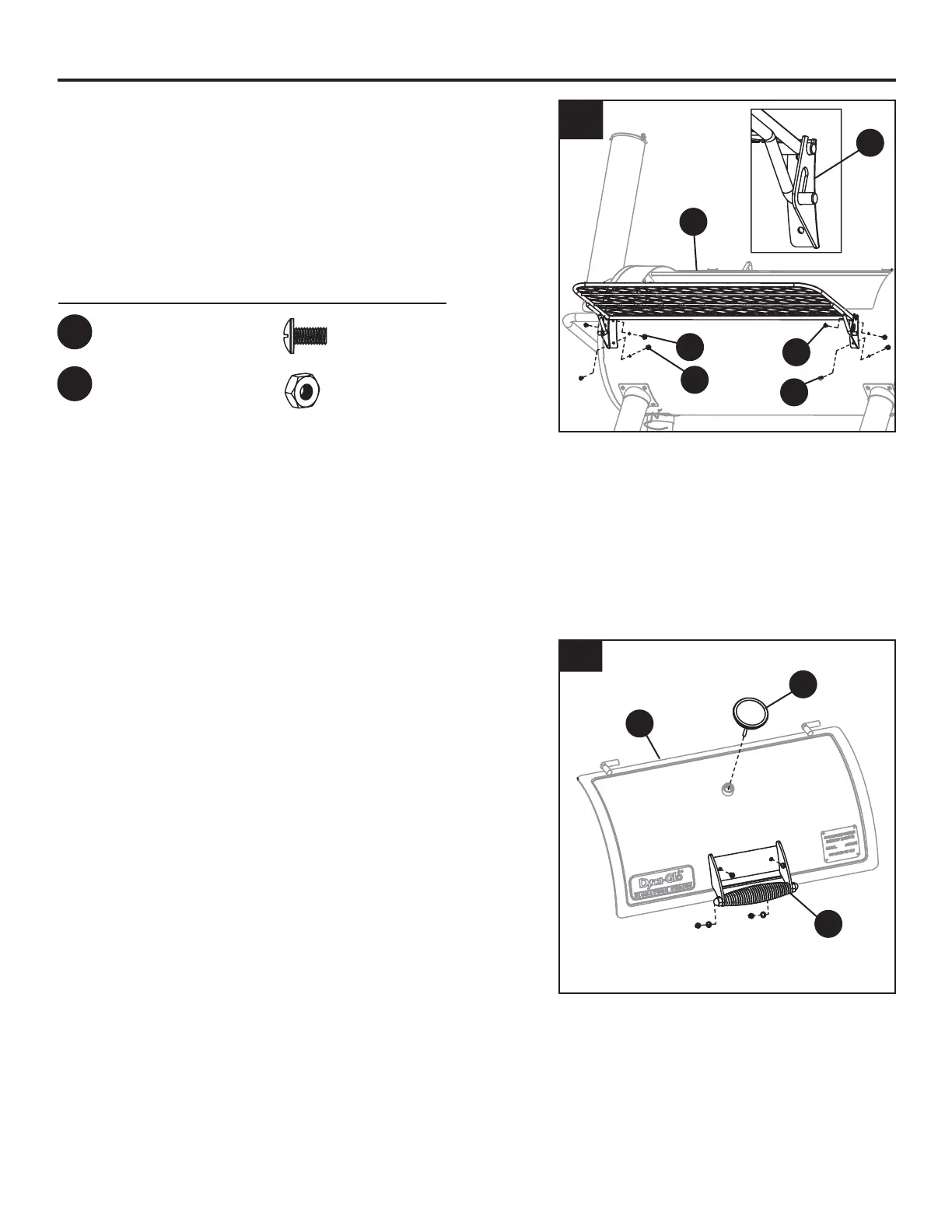

9. Attach the right shelf bracket (S) to the grill
body (G), using two M6 x 12 bolts (AA) and two
M6 nuts (BB), and insert the shelf support wire
into the bracket, as shown. Insert the shelf
supports into the left shelf bracket (R), before
securing the bracket with two M6 x 12 bolts (AA)
and two M6 nuts (BB).
10. Attach the temperature gauge (B) by inserting the
probe through the threaded opening on the lid (A)
and turning clockwise. Do not remove the
pre-installed nut prior to attaching the gauge.
NOTE: The alignment of the temperature gauge
can be adjusted by turning the pre-installed nut
clockwise (or counter-clockwise) prior to installing.
Attach the lid handle (D) to the lid (A) using two
pre-installed bolts & nuts and at washers
10
S
D
9
Hardware Used
AA
M6 x 12mm
Bolt
x 4
A
B
BB
AA
BB
M6 Nut
x 4
G
R
S
To Next Page
