Dyna-Glo DGSS443CB - Page 11

11

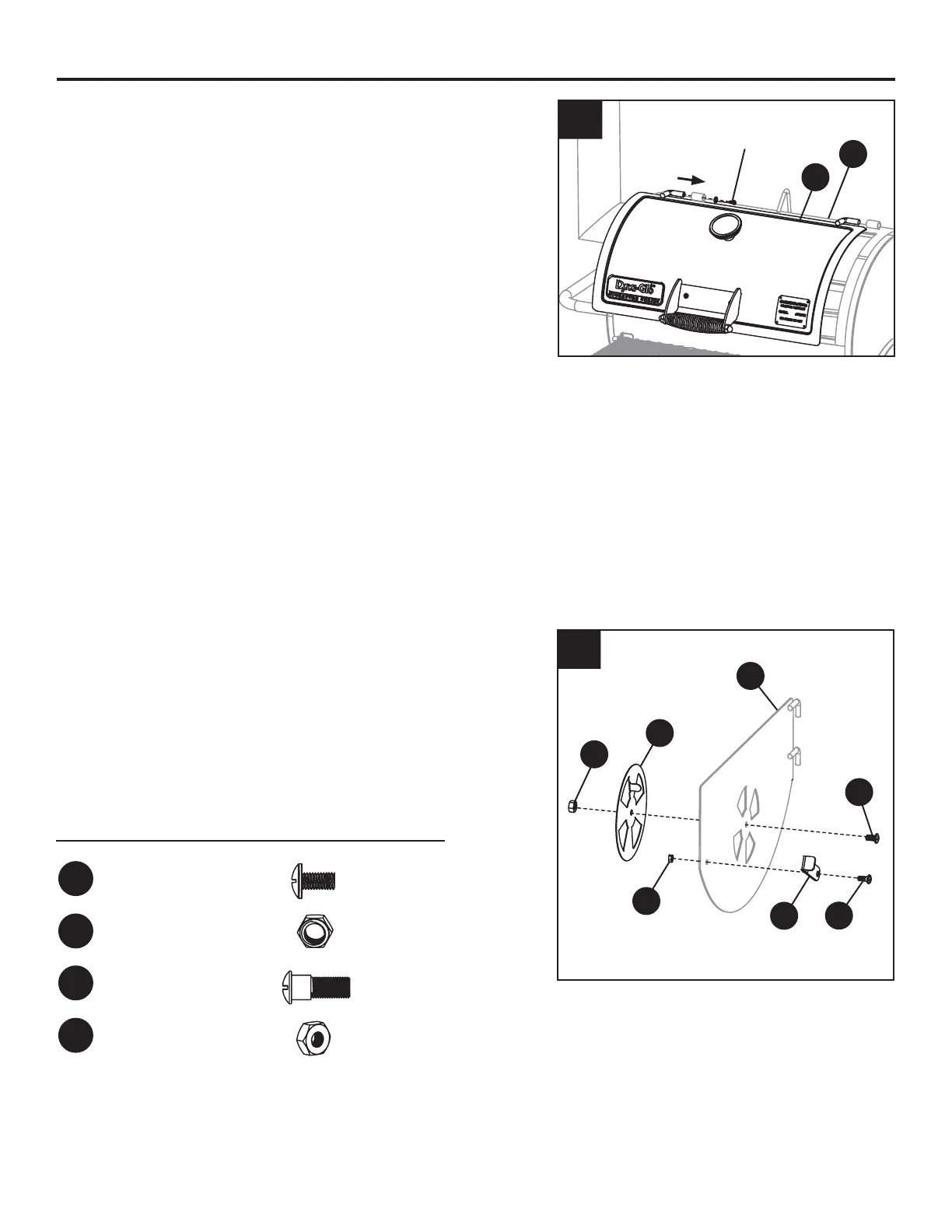

ASSEMBLY INSTRUCTIONS
11. Attach the lid assembly (A) to the hinges on the
grill body (G) using the pre-installed bolt
and washer.
12. Attach the side damper plate (V) to the inside of
the the access door (W) using one M6 x 12 bolt
(AA) and one M6 lock nut (EE).
Attach the door latch (U) to the outside of the
access door (W) using one M5 x 12 bolt (GG) and
one M5 nut (HH).
U
11
12
G
A
Pre-installed
Hardware
EE
V
W
GG
AA
HH
Hardware Used
AA
M6 x 12mm
Bolt
x 1
EE
M6 Lock Nut
x 1
GG
M5 x 13mm
Bolt
x 1
HH
M5 Nut
x 1
