ASSEMBLY INSTRUCTIONS

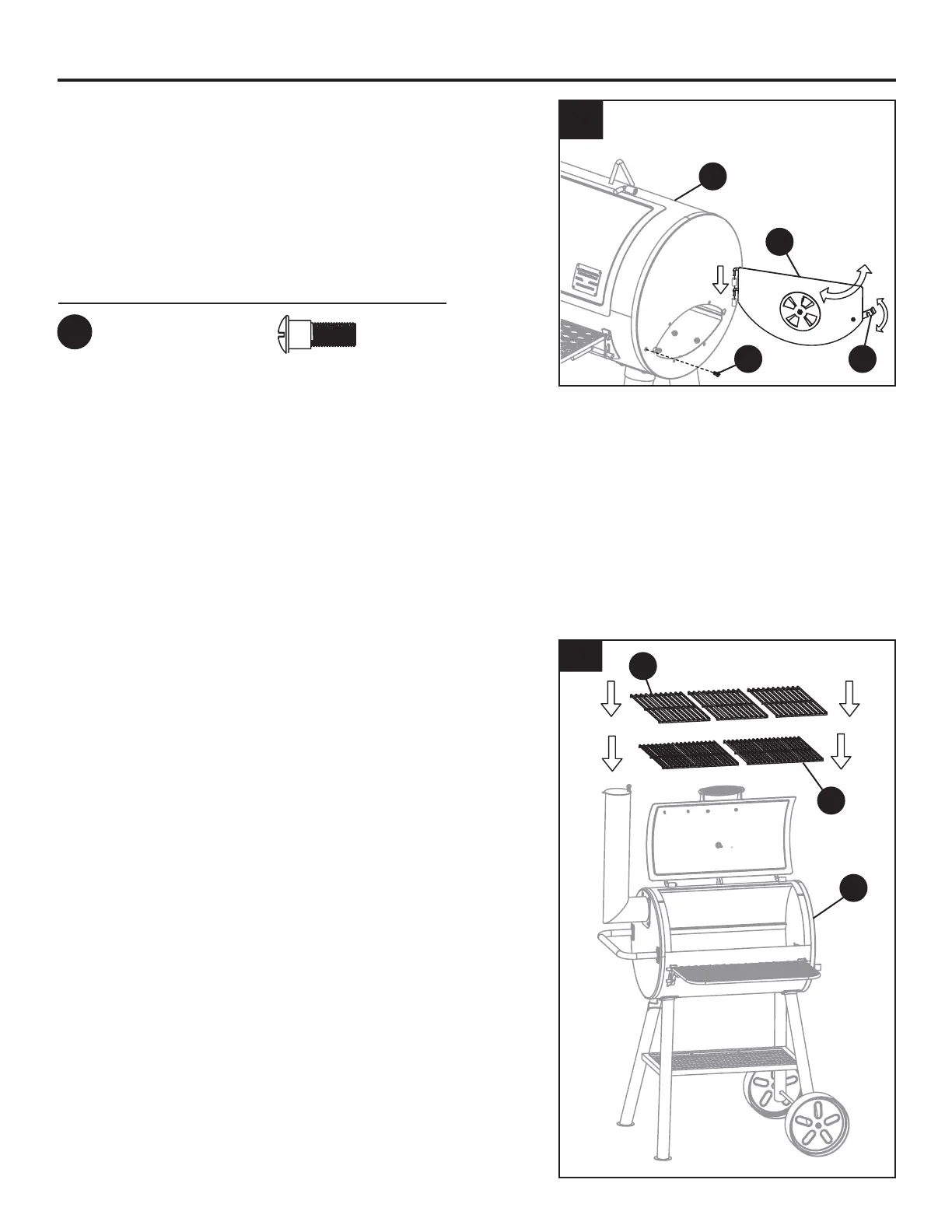

13. Screw one M6 x 14 shoulder bolt (FF) into the grill
body (G). Attach the access door (W) to the grill
body (G) by sliding the hinge rods into the hinge
openings on the grill body (G).
Latch the access door (W) by pivoting the door
latch (U) onto the M6 x 14 bolt on the grill body (G).
14. Install the charcoal grates (X) on the bottom
support rails inside the grill body (G). Install the
cooking grates (Y) on the top support rails inside
the grill body (G).
14
13
Hardware Used
FF
M6 x 12mm
Bolt
x 1
X
Y
G
U
W
G
FF
