5
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
2. ASSEMBLY
For KFA50H/75H Models only
Tools Required
• Medium Phillips Screwdriver.
1. Assembling Handle & Cord Wrap
1) Lift front guard for arrow direction and make
sure that guard’s wedged portion fits into the slit
hole on the upper housing.
2) Align the holes in the upper housing with ttwo
mounting holes on the handle as shown in Figure 6.
3) Secure handel with Screws with provided.
4) Insert card wrap into the rectangle holes on the
supportor and align the hole on the cord wrap with
the mounting hole on the side cover as shown in
Figure 6. (KFA75H Model only)
5) Secure cord wrap with Screws with provided.
For KFA125H/210H2 Models only
Tools Required
• Medium Phillips Screwdriver.
• 3/4 inch socket or adjustable wrench
1. Assembling Handle & Wheel and Cord Wrap
1) Slide threaded axle through the rear section of the wheel support frane.
2) Slide one axle bushing on to each side of the axle. Slide one wheel on to each side of the axle.
Attach one cap nut on to each side of the threaded axle and tighten well.
3) Place heater on wheel support frame. Align the holes on fuel tank flange with holes on wheel support frame.
4) Position the Handles on top of fuel tank flange.
Insert screws through handles, fuel tank flange and wheel support frames as shown in Figure 8 and
attach nut finger tight after each screw is inserted.
5) Align the hole on the handles with the mounting hole on the Cord Wrap.
Insert Screws through Cord Wrap, handles and attach nut finger tight after each screw is inserted.
6) After all screws are inserted, tighten nuts firmly.

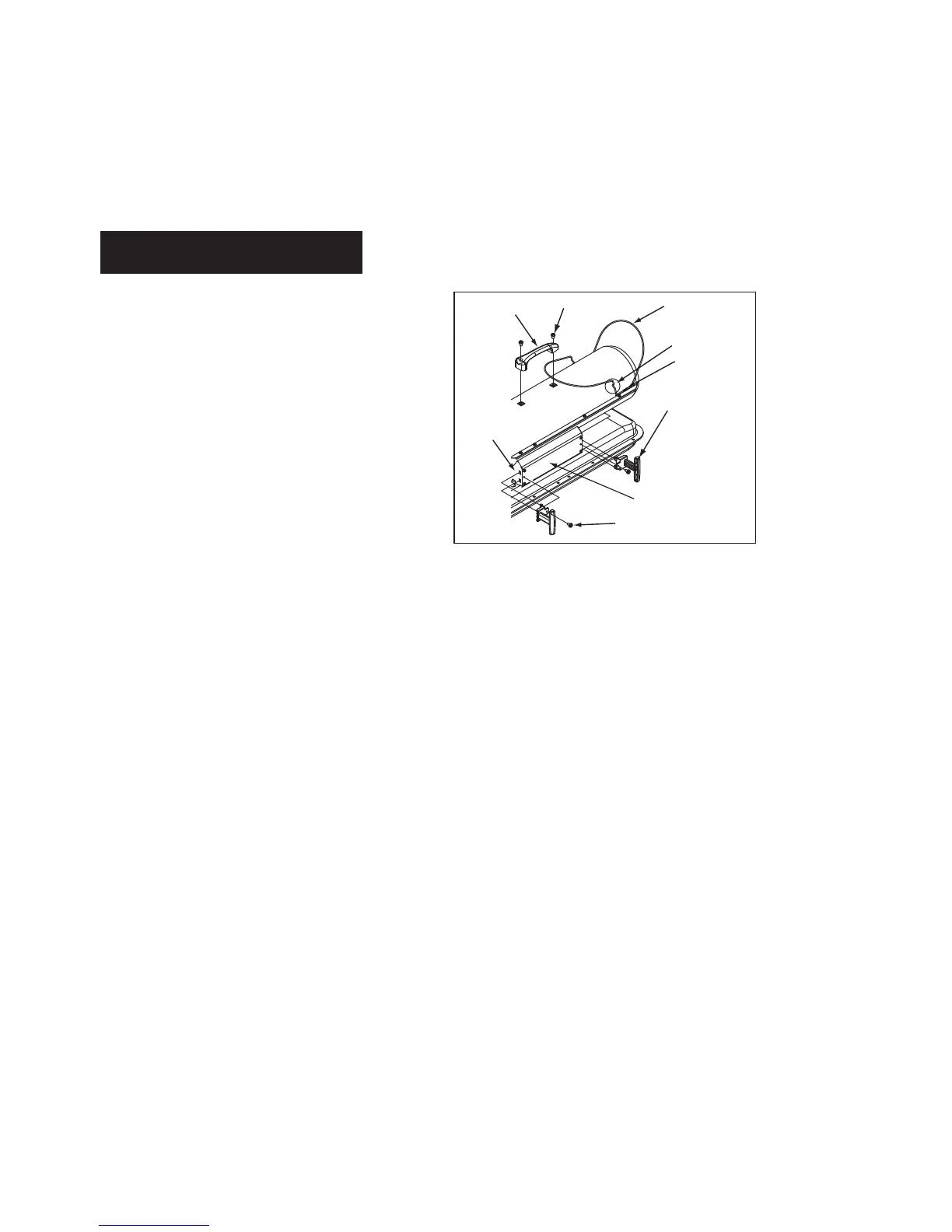

Figure 6. Assembling Handle & Cord Wrap
Handle
Screw
Frong Guard
Slit Hole
Cord Wrap
Screw
Side Cover
Suppotor
Wedged Portion
To Next Page
