11
ASSEMBLY INSTRUCTIONS

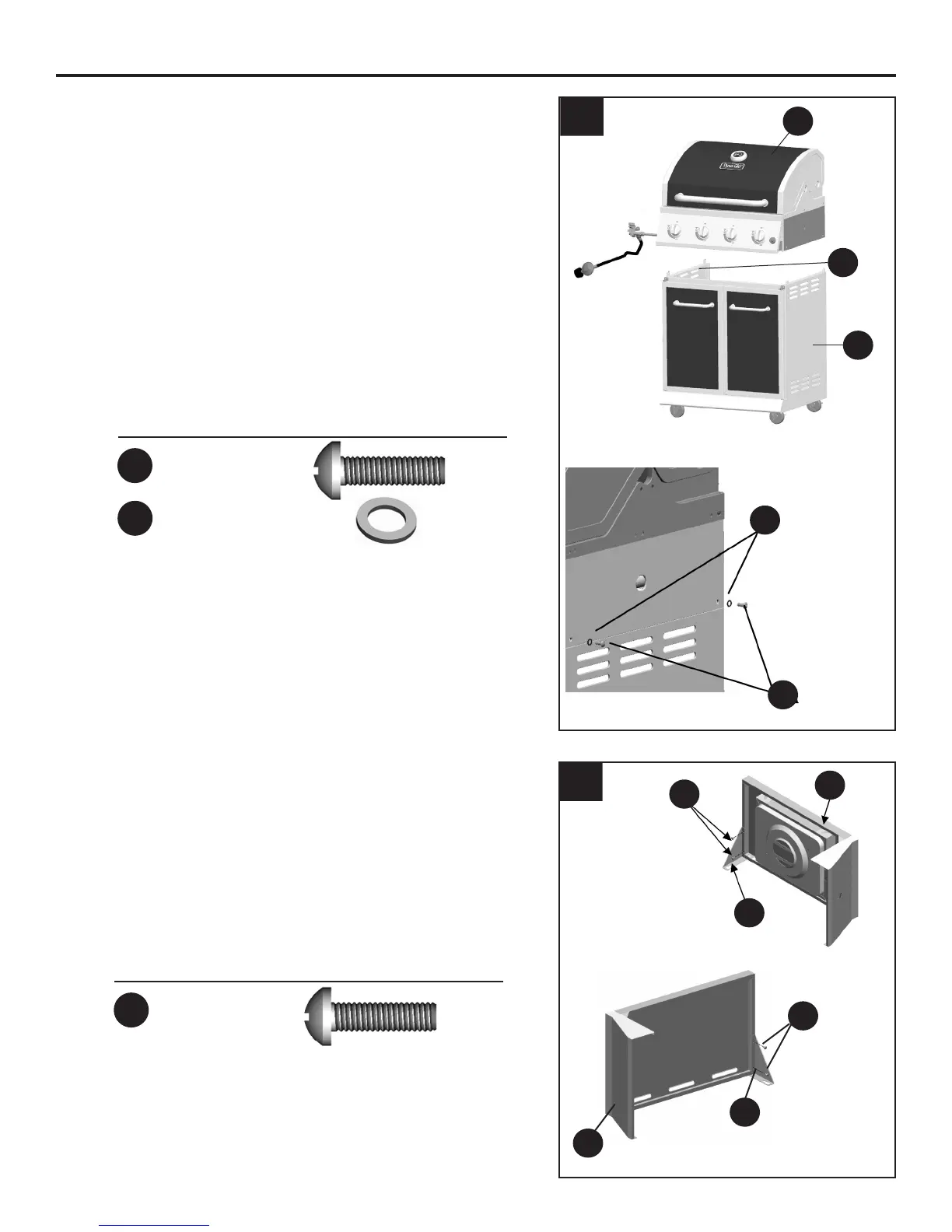

9. Carefully place the grill body (C1) onto the cart
left side panel and cart right side panel (H&E).
Adjust the grill body (C1) so that the holes in
the grill body (C1) are aligned with the holes in
the tabs of the cart side panels (H&E).
NOTE: Make sure the gas hose/regulator
assembly is outside the cart. Fasten the grill
body (C1) using 2 screws (AA) and plain
washer (BB) on each side.
C1
9
H
E
BB
AA
Hardware Used
AA
M6x12 Screw
x 4
BB
M6 Plain Washer
x 4
10. Secure support for left side burner
table (Q) to left side burner table assembly (T)
using 2 screws (DD).
Secure support for right side table (X) to right
side table assembly (Z) using 2 screws (DD).
10
Q
T
DD
Hardware Used
DD
M4x12 Screw
x 4
Z
X
DD
To Next Page
