12
ASSEMBLY INSTRUCTIONS

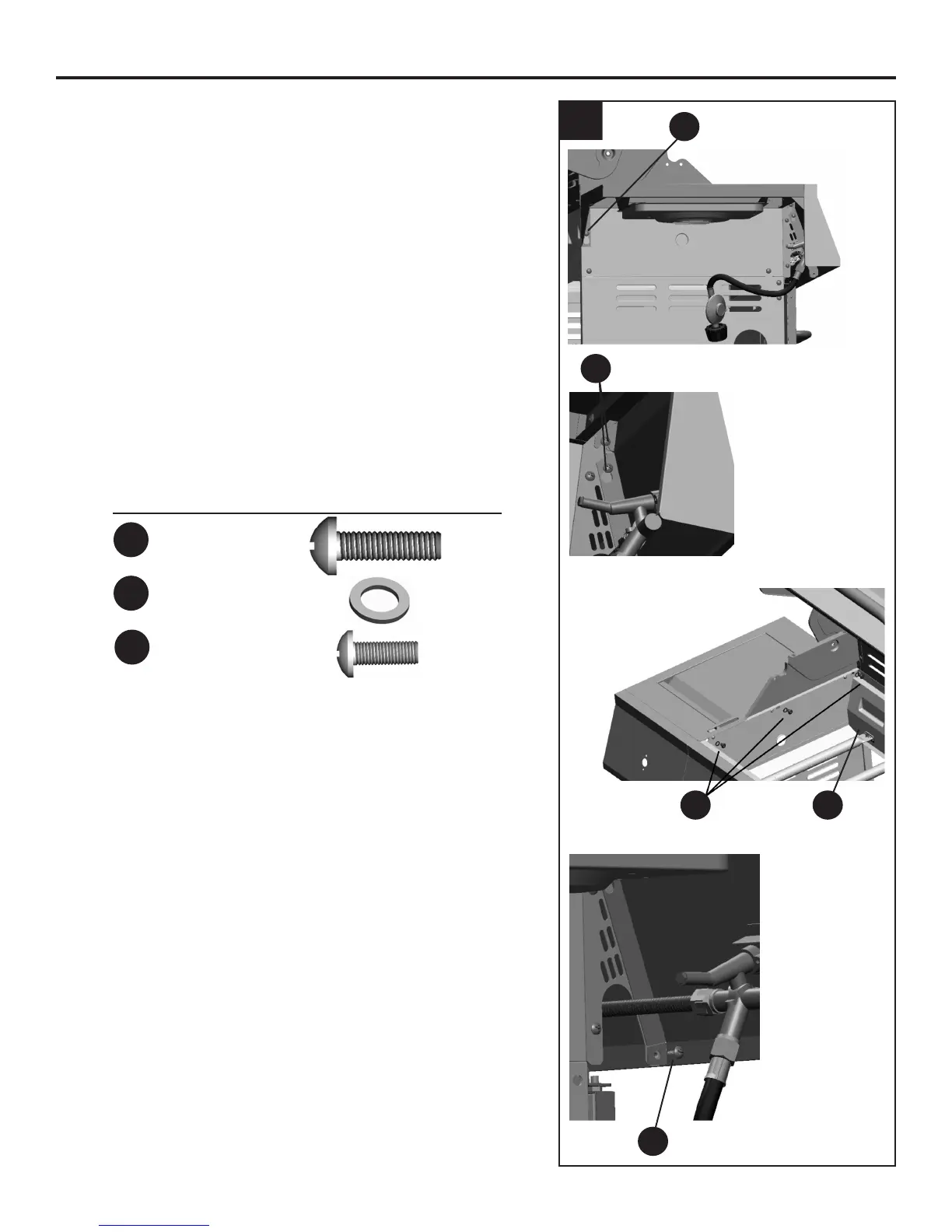

11. Insert 1 pc M6x12 Screw (AA) and 2 pcs
M4x12 Screw (DD) to grill body (C1),
leaving 4-6mm clearance from screw head to
grill body (C1). Align left side burner table
assembly (T) to the 3 inserted screws. Insert 3
screws (AA) with plain washers (BB) from the
holes of grill body (C1) out to the left side
burner table assembly (T). Secure using 1
screw (DD). Adjust left side burner table
assembly (T) correctly then tighten all screws.
11
AA
AA
DD
DD
C1
Hardware Used
BB
M6x12 Screw
M4x12 Screw
x 4
x 3
DD
Plain
Washer
x 3
AA
