Dynacraft MY LITTLE PONY 4x4 User Manual

9

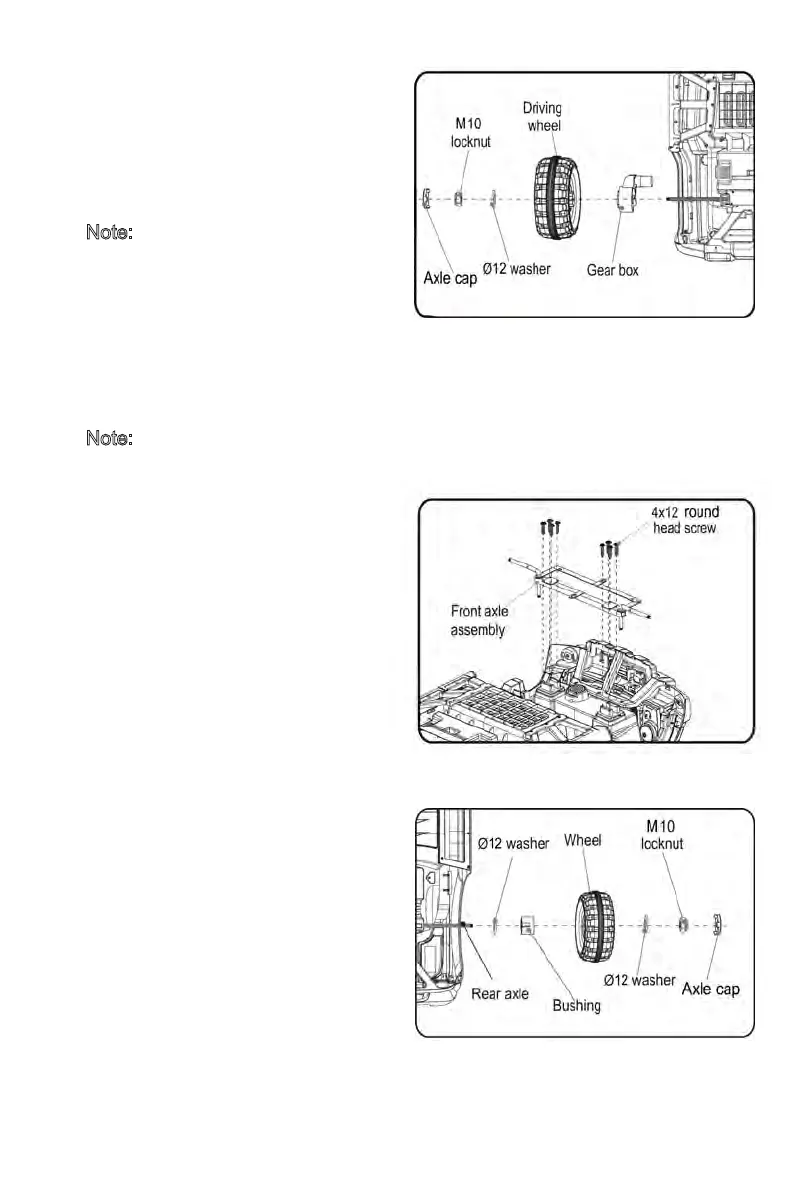

2. Driving Wheel Assembly
. Turn the vehicle body upside down.
3. Front Axle Assembly
. Turn the vehicle body upside down.
. Fit the front axle assembly to the
vehicle body as shown. Then use a
screwdriver to tighten four 4x12
round head screws on each side to
. Slide the gear box through the axle
into the vehicle body, make sure the
motor and motor power wire are
inserted into the vehicle body.
Note:
Note:
The gear box shall be installed
onto the Right side of vehicle
(riding position).
. Slide the driving wheel onto the axle
and make it match up with the gear box.
.elxa eht ot no rehsawe a Ø12 dilS .
. Install the M10 locknut and tighten it.
. Fasten the axle cap.
To asse ,edis rehto eht no leehw raer eht elbm refer to the front
wheel assembly information at page 10.
secure the front axle assembly.
4. Front Wheel Assembly
Ø
Ø
. Turn the vehicle body upside down.
. Remove all parts from front axle.
saw 21t a iF . her onto the axle.
. Fit a bushing onto the axle.
. Slide a wheel onto the axle, make the
bushing match inside the wheel.
. Install a
tighten it. (Note: Do not over-tighten)
12 washer and locknut, then
. Fasten the axle cap.
. Repeat above operation for the front wheel on the other side.
