After assembling any wheel onto the axles, make sure to check the
gap between the screw thread and the outside of the wheel (refer to
the adjacent diagram). If the gap is too big, add two or three washers
on the axle to the inside of the wheel. After tightening the nut on the
outside of the wheel, please turn the wheel with your finger to check if
the wheel can run smoothly. This is a very important step because if
the wheel can run
smoothly, it is ok; but if the nut presses the wheel
and the wheel can’t run smoothly, the motor will be broken easily!
If the wheel does not run smoothly, you will need to decrease one
or two washers to make sure the wheel can run smoothly!
Note: If the wheel nuts are loose, the wheels will not engage
the forward gear. Tighten the nut with the wrench.
GAP
IMPORTANT! CHECK GAP AFTER ASSEMBLING WHEELS
5
5

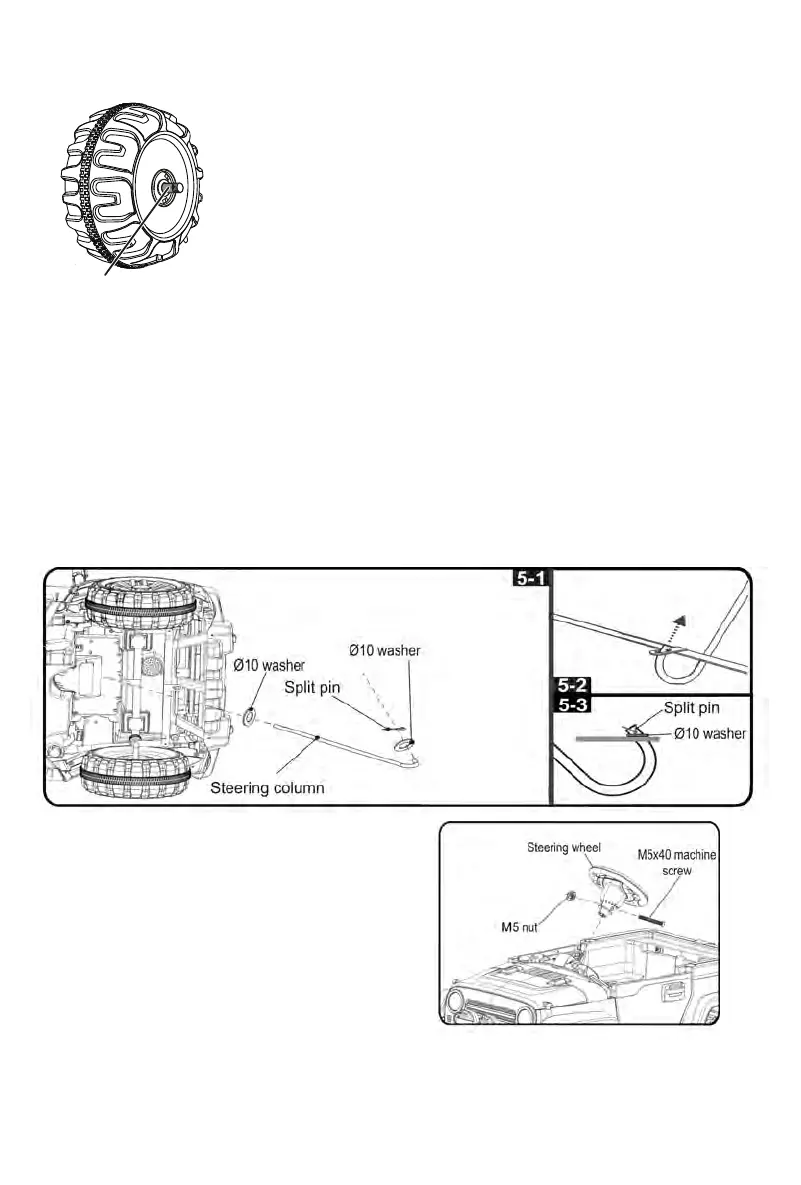

5. Steering Column Assembly
Turn the vehicle on its side as shown in picture below. .
.
.
.
Slide a 10 washer then insert the straight end of steering shaft through
the hole in the vehicle body until it sticks out of the hole on the top of the
>1-5 erutciP< .ydob elcihev
Insert the bent end of steering column through the hole in the front axle
<Picture 5-2>
Fit a
Ø
Ø
10 washer and insert a split pin into the hole in the bent end of the
steering column, use a standard slip joint pliers to open and split the pin ends
(to assure the washer will not fall out) .<Picture 5-3>
linkage.
6. Steering Wheel Assembly
Remove the M5x40 machine screw
Turn the vehicle body upright.
and
M 5 nut from the steering wheel with a
screwdriver.
.
.
Insert the steering wheel onto the end
of the steering column, line up the hole
in the steering wheel and the hole in
steering column, reinsert the M5x40
machine screw and
M5 nut as
shown
and tighten securely with a screwdriver.
.
