Dynamo Power DP7100 - Generator Head Assembly Diagram (Figure 5-3)

GENERATOR PARTS DIAGRAMS AND LISTINGS

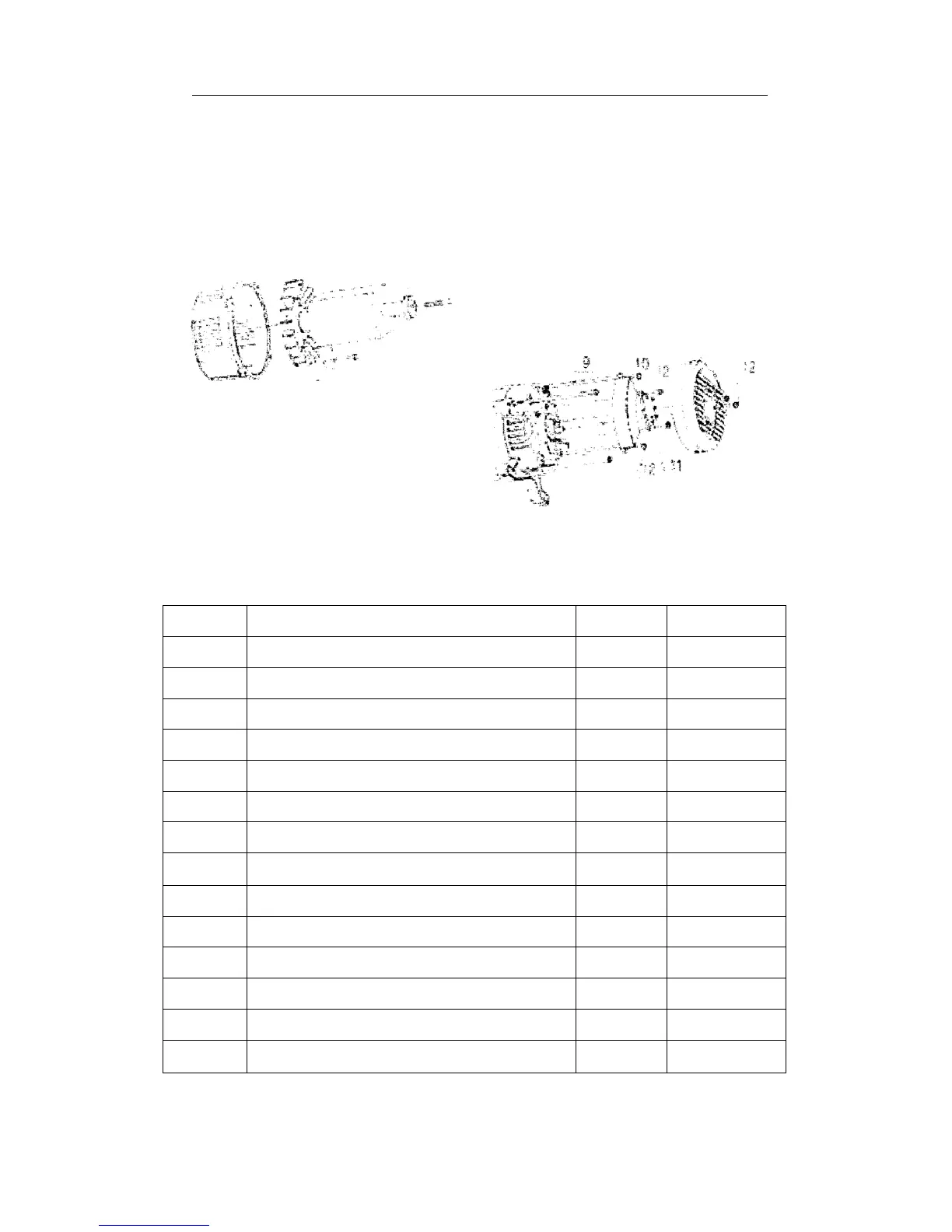

Figure 5-3. Generator head assembly
Table 5-3. Please refer to figure 5-3
Number
Part Description
Quantity
Part Code
1
Front end cover
1
1000-B-001
2
Diode 3510
1
1000-B-002
3
Bolt M5 x 16
2
1000-B-003
4
Fan Blade
1
1000-B-004
5
Bearing 6204(GB/T 307)
1
1000-B-005
6
Rotor Unit
1
1000-B-006
7
Center bolt M10x216 (GB/T5789-1986)
1
1000-B-007
8
Guard board of motor
1
1000-B-008
9
Installing bolt M6x180(GB/T5789-1986)
4
1000-B-009
10
Capacitance
1
1000-B-010
11
Wiring seat
1
1000-B-011
12
Heterotypic bolt M5x14
6
1000-B-012
13
Stator unit
1
1000-B-013
14
Dust cover
1
1000-B-014
 ;
