13CA 262/362/512 M262EN2
EVERY 10 HOURS OF OPERATION (Daily)
Diesel engine
– Check oil level

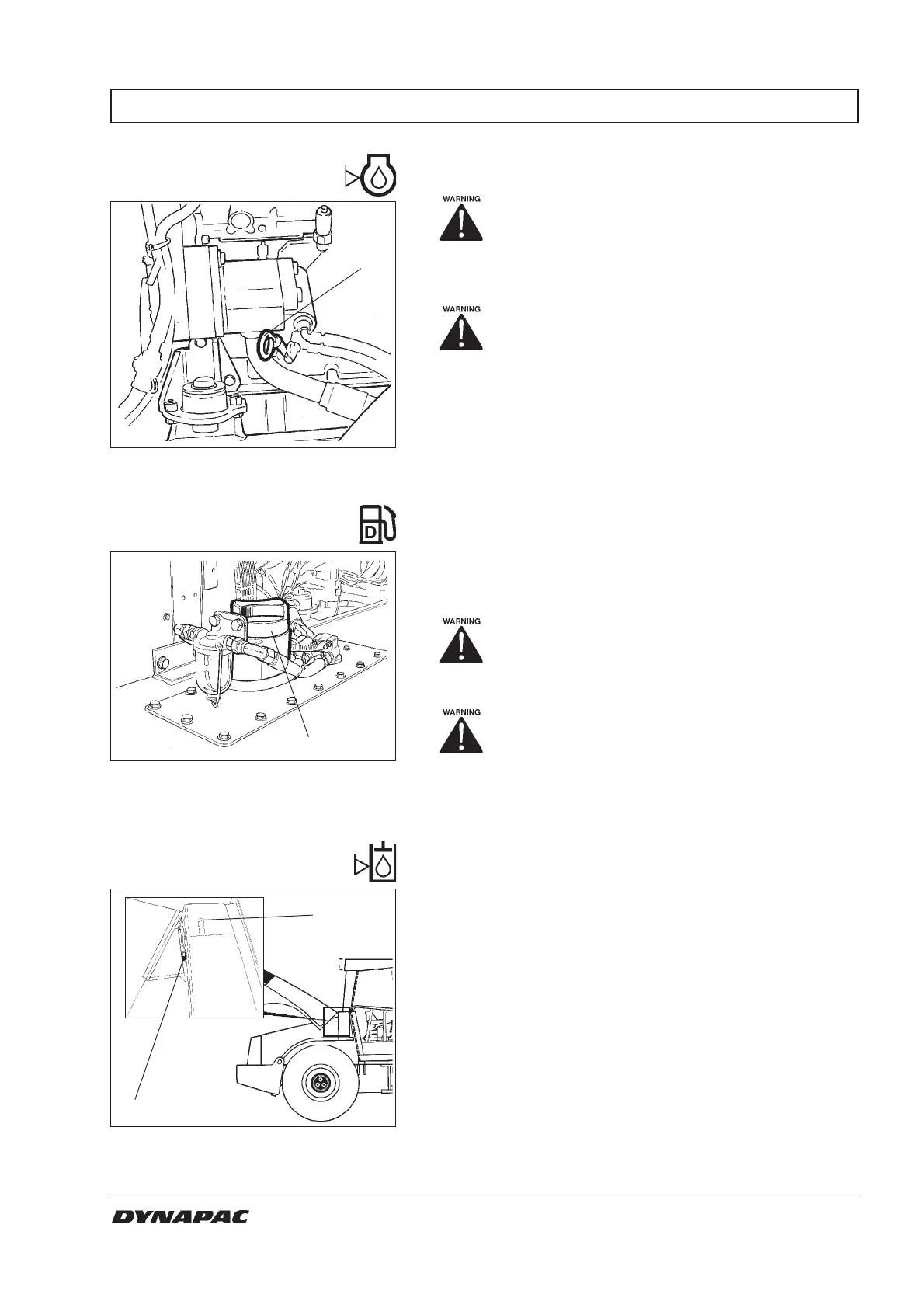

Fig. 8 Engine compartment
1. Oil dipstick
Place the roller on a level surface. Switch
the engine off and push in the reserve/
parking brake knob for all checking and
adjustments on the roller, unless otherwise
specified.
Danger of burns. Take care not to touch
any hot parts of the engine or the radiator
when removing the dipstick.
The dipstick is located on the engine’s right side.
Pull up the dipstick (1) and check that the oil level is
between the upper and lower marks. For further details,
refer to the engine manual.
1
Refuel daily with diesel fuel up to the lower edge of the
filler pipe (1). Follow the engine manufacturer’s
specification with regard to the quality of diesel fuel.
Switch off the diesel engine. Short-circuit
(press) the filler gun against a non-insula-
ted part of the roller before refuelling, and
against the filler pipe (1) while refuelling.
Never refuel while the engine is running,
do not smoke, and avoid spilling fuel.
The fuel tank holds 320 litres (84.5 gal).
1
Fig. 9 Fuel tank
1. Filler pipe
Fuel tank – Filling
1
Fig. 10 Hydraulic fluid reservoir
1. Sight glass
2. Filler pipe
Position the roller on a level surface and check that the
sight glass reading (1) is between the max. – min.
marks. Top off with hydraulic fluid according to the lu-
bricant specification if the level is too low.
Hydraulic reservoir
– Check fluid level
2
