36 CA 262/362/512 M262EN2
ELECTRICAL SYSTEM, FUSES, RELAYS
The electrical regulating and control system is
protected against overload by 27 fuses and 12 relays.
The number depends on how much extra equipment is
fitted on the machine.
The four fuse boxes (1,2,3,4) and the relays are
located behind the lower instrument plate, which can be
removed by turning the four quick-screws (5) a ¼-turn.
The machine is equipped with a 12 V electrical system
and an alternator.
Connect the battery to the correct polarity
(– to ground). The cable between battery
and alternator must not be disconnected
when the engine is running.

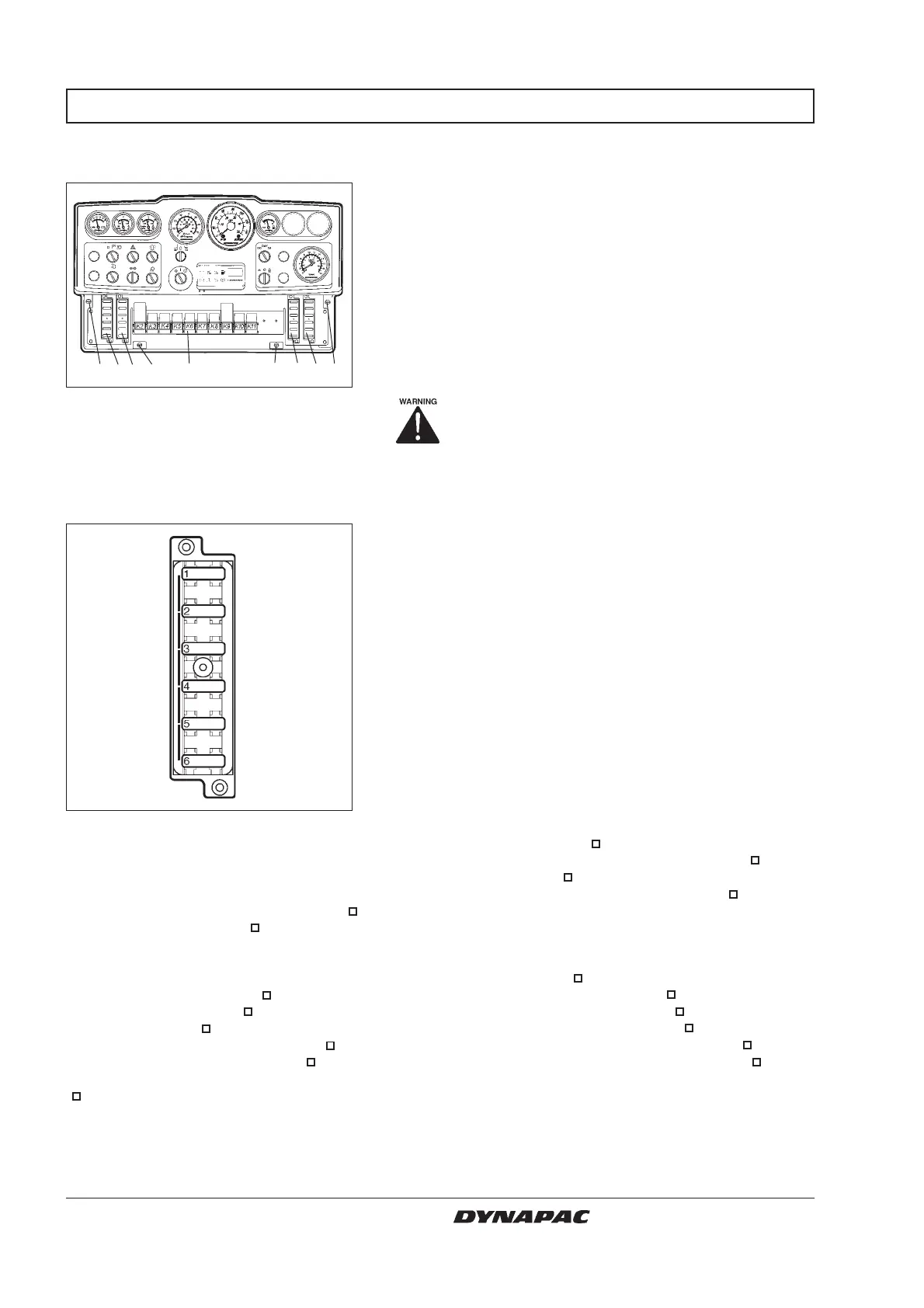

Fig. 61 Instrument panel
1,2,3,4. Fuse boxes
5. Quick-screws
6. Relays
5 3 4 5
Fuses and relays
5 1 2 5
Fuses on the machine
The figure shows the rating and function of the different
fuses.
All fuses are flat pin fuses.
The tachograph and memory for the radio are protected
at the battery master disconnect switch by a 10A fuse.
6
Fig. 62 Fuse box, left side (1)
7.5A 1. Brake valve, starter relay, hourmeter
7.5A 2. VBS relay
7.5A 3. Indicating panel
7.5A 4. Horn
7.5A 5. Low/High speed/Strike-off blade
3A 6. Reversing alarm
Fuse box, left side (2)
7.5A 1. Instrumentation
3A 2. Compaction meter
7.5A 3. Hazard beacon
7.5A 4. Anti-spin
15A 5. Windscreen wiper, utility cab
5A 6. Interior lighting, utility cab
Fuse box, right side (3)
20A 1. Working lights, left
20A 2. Working lights, right, instrument illumination
7.5A 3. Headlight, left
7.5A 4. Headlight, right, instrument illumination*
5.
–
6.
–
Fuse box, right side (4)
10A 1. Hazard beacon
10A 2. Direction indicators, main fuse
7.5A 3. Position light, left, front and rear
5A 4. Position light, right, front and rear
5A 5. Direction indicator, left, front, rear and side
5A 6. Direction indicator, right, front, rear and side
*
When driving lights are fitted = Optional
