Dismantling of
the pump

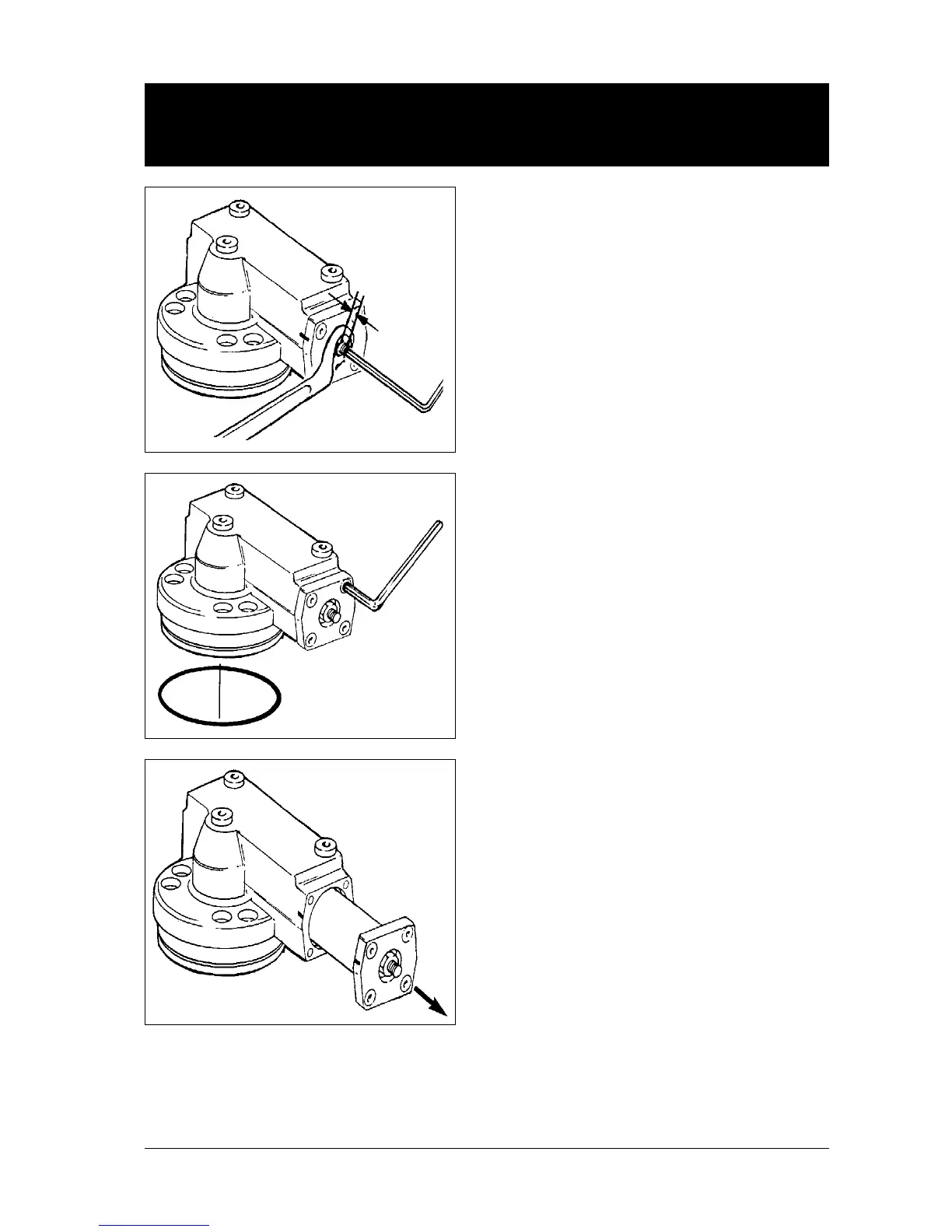

9. Mark cover.
Record measure of the adjustment
screw.
Loosen locknut, hold adjustment screw.
10. Unscrew locking screws.
Remove O-ring
11. Pull out control piston.
