Dynapac CC 102 - Adjustment instructions Hydraulic zero position

P/N 35 84 70
W-1012-2EN Hydr Propulsion Pumps CC 102/102C/122/122C 39
Adjustment instructions
Hydraulic "zero position"
HW
Attention!
Observe safety regulations!
1

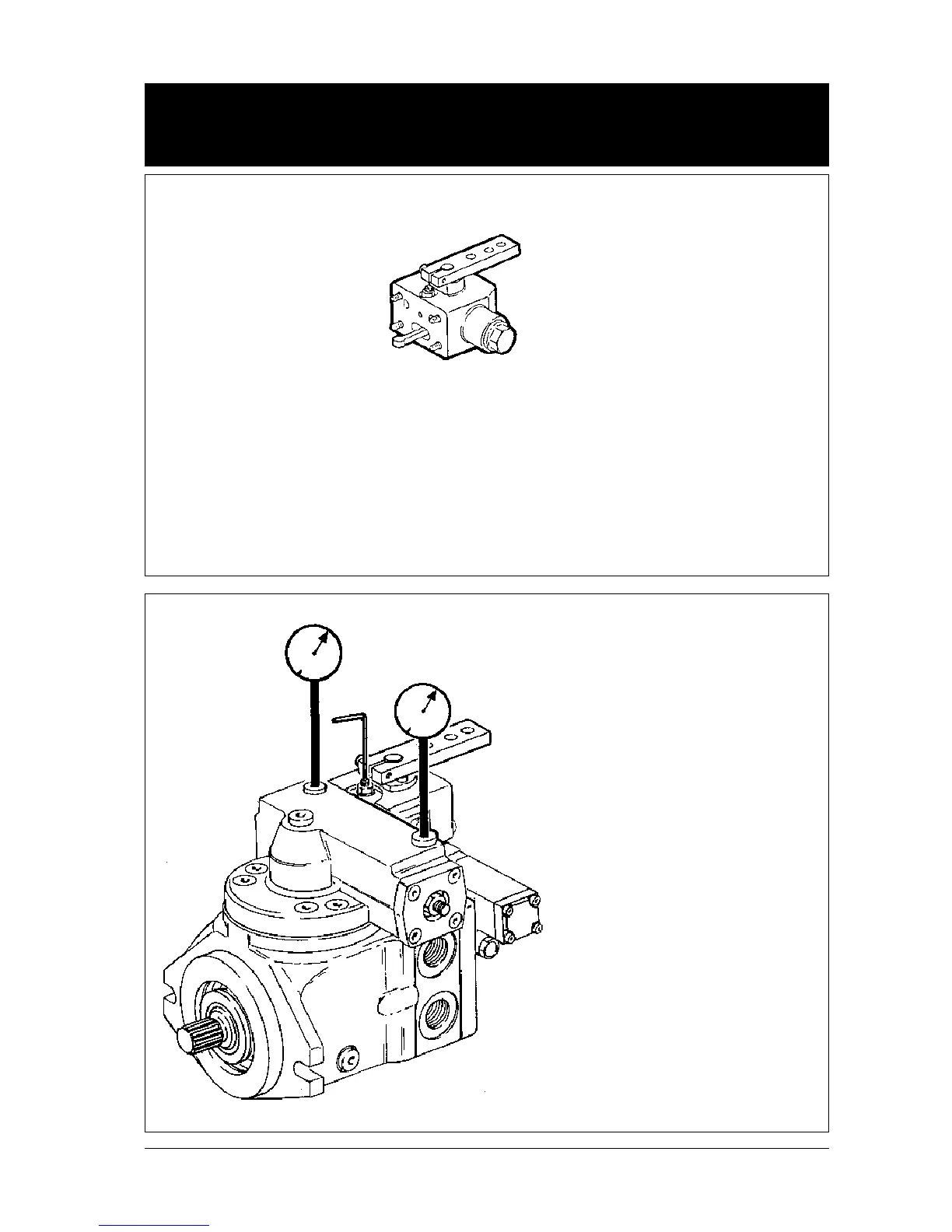

Connect manometer to X
1
and X
2
.
Adjust zero position so that at blocked
drive both manometer indicate the
same pressure value.
Note:
Eccentric adjusting
- Do not turn over ±90°.
2
