Dynapac CC 102 - Sealing of the Drive Shaft

P/N 35 84 70
W-1012-2EN Hydr Propulsion Pumps CC 102/102C/122/122C 9

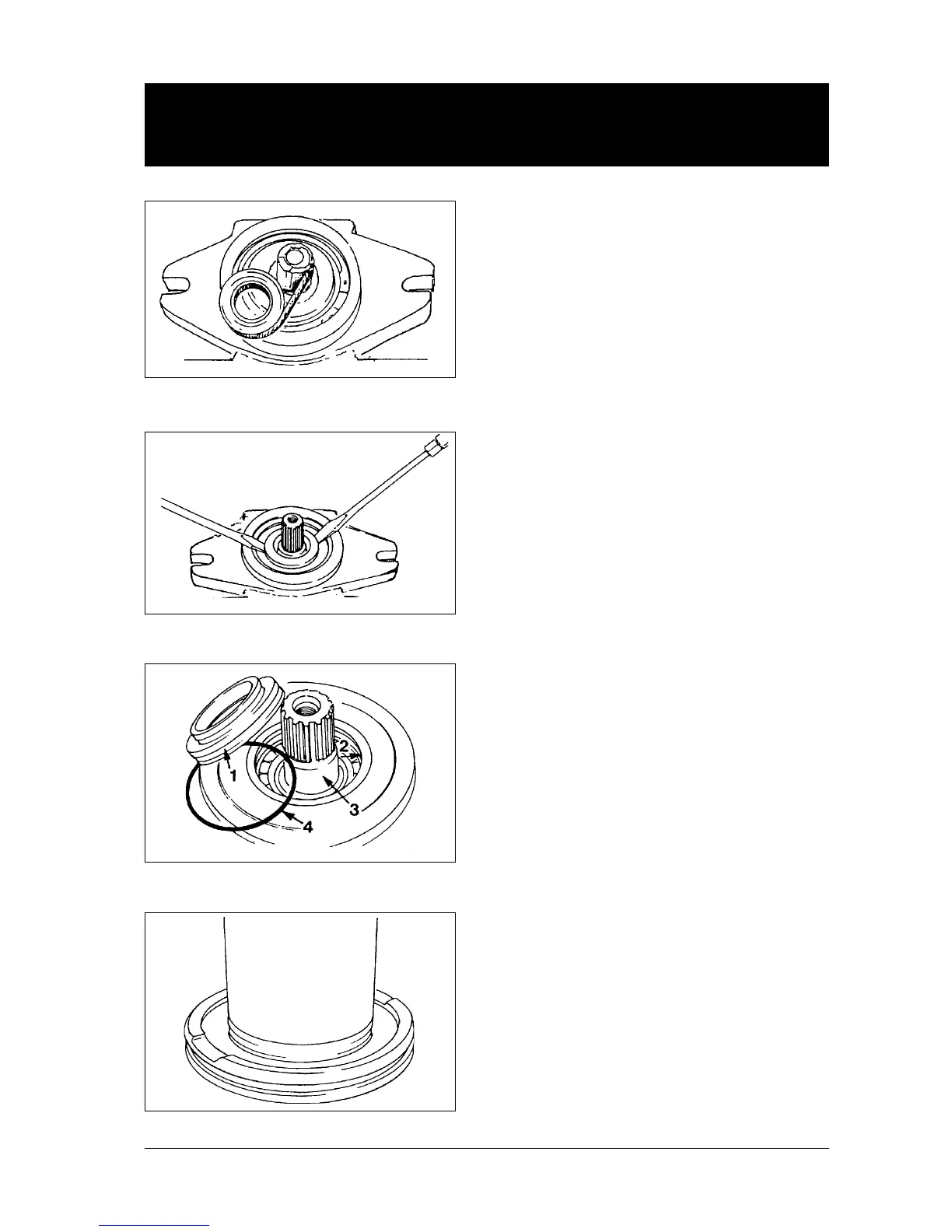

Sealing of the
drive shaft
3. Inspect:
1.Groove
2.Bore
3.Shaft
4.O-ring
1. Protecting the drive shaft.
2. Loosen retating ring and remove it.
Press-off the front cover.
4. Press in new shaft seal into correct
position with a suitable bush.
Assemble in reversed order.
Check correct seat of the circlip.
