W-1012-2EN Hydr Propulsion Pumps CC 102/102C/122/122C 25
Dismantling of
the pump

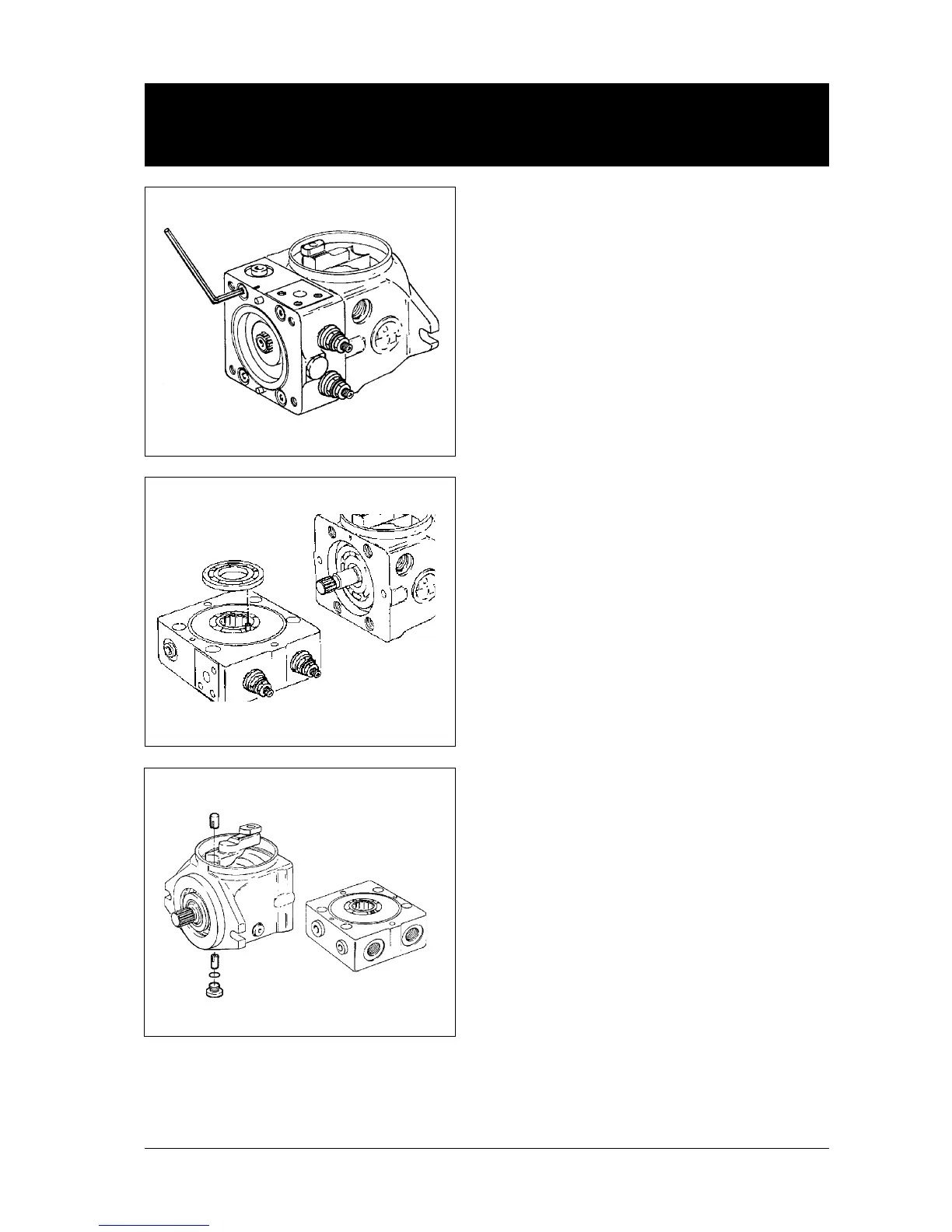

12. Release port plate fixing.
Lift port plate. If necessary use screw-
driver, but only in this position in the
corners.
(Opposite sides: sealing surfaces)
13. Lever off control plate - note positions of
locating pin and hole drilling.
14. Remove joint pins.
