34 Hydr Propulsion Pumps CC 102/102C/122/122C W-1012-2EN

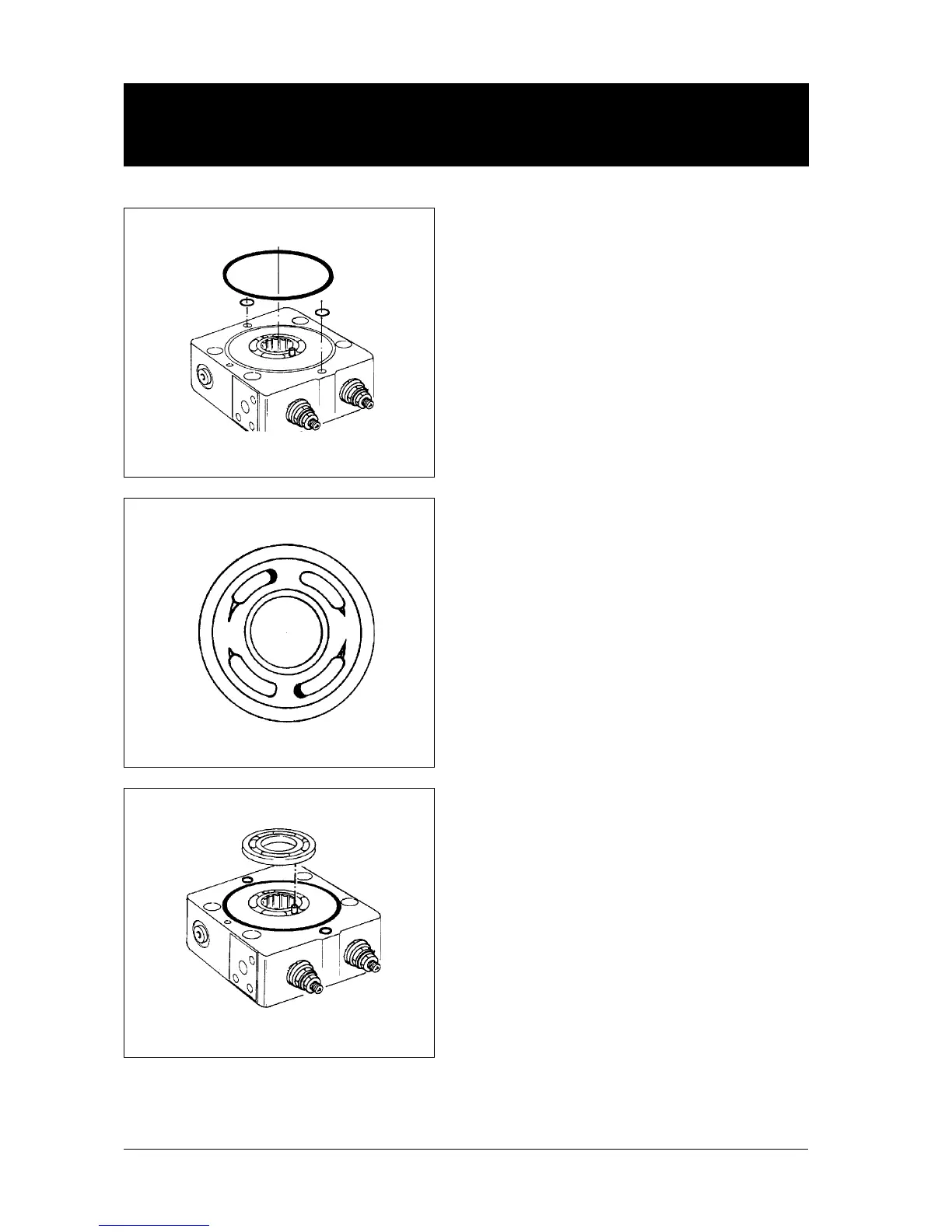

Pump assembly
13. Control plate, clockwise - located in
direction of rotation. When the casting
of the housing are visible trough the
hole in the valveplate.
12. Insert O-ring with grease.
Insert fixing pin (1).
14. Place control plate with grease.
Control plate, clockwise - located in
direction of rotation. Web of the port
plate visible. As in above.
Attention!
Noise notches are ground in required
direction of rotation.
