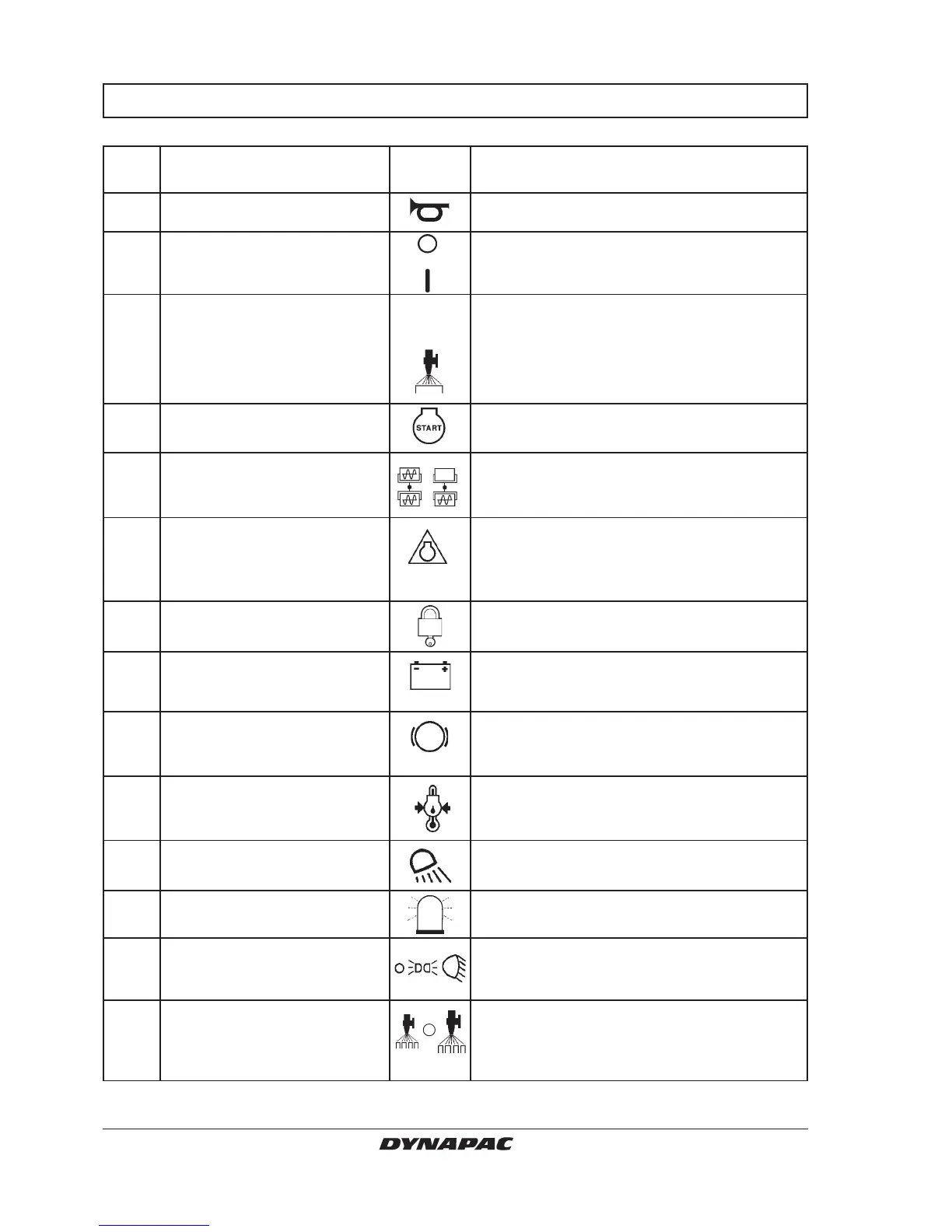

Items Designation Symbol Function
in fig. 7
1 Horn, switch Press to sound the horn.
2 Main power switch In position O the electric circuit is broken.
In position I all electric switches and lamps
except the starter motor circuit are powered.
3 Sprinkler system, drum Regulates the flow of water to the drum.
MAN mode gives continuous watering.
Watering is OFF in 0 mode.
The AUT mode gives automatic switching of
watering ON/OFF while driving forward and
reverse.
4 Starter contact Press to run the starter motor.
5 Vibration switch Middle position=Vibration switched OFF.
(Optional) Left position= Vibration on both drums (not C)
Right position=Vibration on one drum.
6 Reserve brake//Parking brake Press to activate the reserve brake. Press
when the machine is stationary to activate the
parking brake.
Pull out to release both brakes.
7 Instrument protection Lower over the instrument plate as protection
against weather and sabotage.
8 Warning lamp, If the lamp lights while the engine is running,
battery charging the alternator is not charging.
Stop the engine and locate the fault.
9 Brake warning lamp The lamp lights when the parking or reserve
brake knob is pushed in and the brakes are
applied.
10 Warning lamp, oil pressure, The warning lamp lights if lubricating oil
or excessive temperature pressure is too low. Stop the engine andof
engine oil. remedy the cause. See engine manual.
11 Working lights backwards, Turn right to switch on the working lights.
switch (Optional)
12 Hazard beacon, Turn right to switch on the hazard beacon.
switch (optional)
13 Working lights forward, Turn right to the first position to switch on the
switch (Optional) parking lights and to the second position to
switch on the forward working lights.
14 Sprinkler system, Regulates the flow of fluid to the tires
tires (Combo) Turn left=continual operation.
Turn right=intermittent operation.
MAN
O
AUTO
STOP
INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION
