8 Long-Term Care Bed • D100 (Reorder No. 12001)

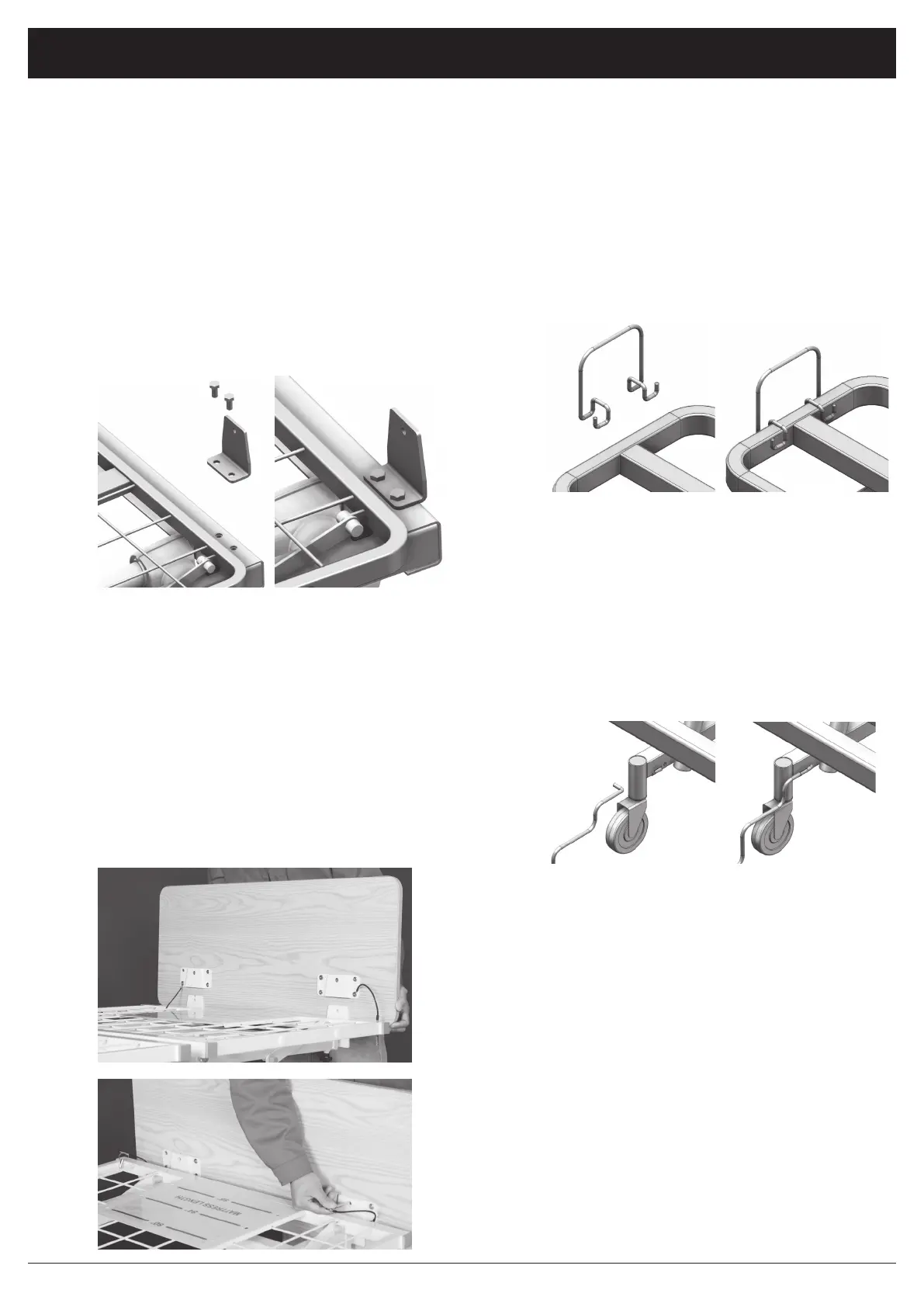

2.1 ASSEMBLING THE HEAD/FOOT-
BOARD INSERTION PLATES TO
THE BED
1. With the bed raised to its highest position, step on
the locking levers to lock all casters of the bed.
2. Align the insertion plate with the mounting holes
on both ends of the bed frame. Secure it with M10
hex bolts.
3. Repeat the same procedure until all four insertion
plates are installed.
2.2 ASSEMBLING THE HEADBOARDS/
FOOTBOARDS ONTO THE BED
1. With the mounting plates on the headboard facing
the bed, slide the mounting plate groove onto the
headboard mounting bracket’s vertical support.
2. Insert the lock pin through the mounting plate into
the headboard to secure the headboard in place.
Repeat on the other mounting plate.
3. Repeat the same procedure for the footboard
installation.
2.3 INSTALLING THE MATTRESS
RETAINING SYSTEM
1. Snap the mattress retainer onto the edge of bed
frame and push it down rmly.
2. Repeat the procedure until all six mattress retain-
ers are installed. There should one retainer on
either side of the bed and two on both ends of the
bed.
2.4 INSTALLING THE WALL
BUMPER BAR
1. Insert the ends of the wall bumper bar through the
mounting holes at the foot end of the bed support
frame.
2. Rotate to wall bumper bar parallel to the oor and
ensure the bar sits within the holding clips next to
the mounting holes.
ASSEMBLY INSTRUCTIONS (Continued)
