Long-Term Care Bed • D100 (Reorder No. 12001) 9
ASSEMBLY INSTRUCTIONS (Continued)

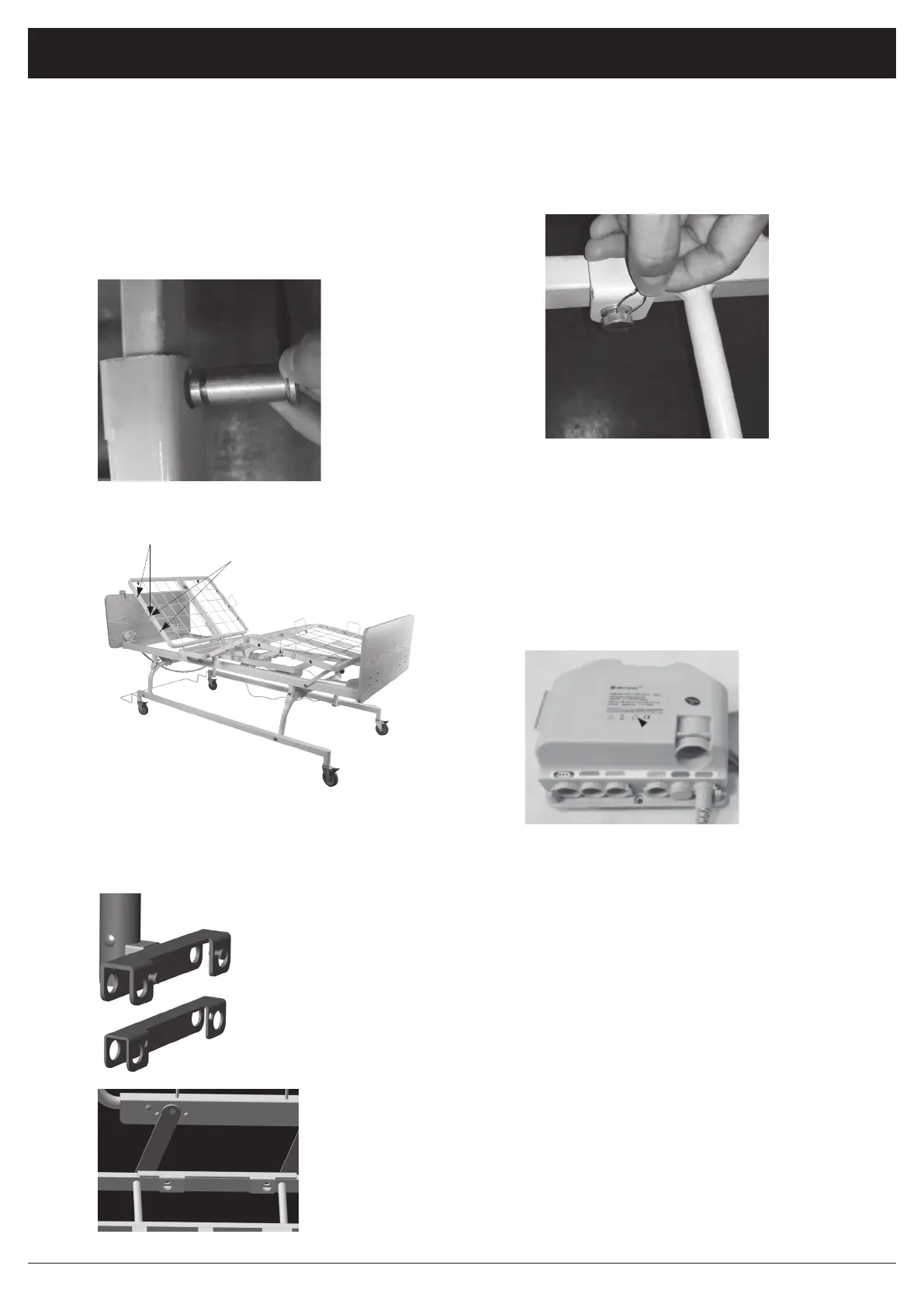

2.5 INSTALLING THE RAILS OR
ASSIST BARS
1. Before installing the rails or bars, the bed should
be in the at position.
2. Unclip the metal snap ring and remove the metal
pins from the rail mounting brackets.
3. Remove cover for the appropriate holes.
Holes for Swing Rails
Holes for Assist Bars
4. Place the rail bracket onto the edge of the bed
decking. Align the rail bracket mounting holes
with the bed deck mounting holes. Slide the
U-shaped insert into the assist bar bracket.
5. Re-insert the metal pins from the outside edge of
the bed through the mounting holes and secure
with the snap rings on the inside edge of the bed.
Make sure the snap rings are positioned in the
groove of the metal pins.
6. If the bed rail or bar has additional Allen screws,
tighten the Allen screws next to the metal pins.
7. Repeat the same procedure to install the other rail.
2.6 CONTROL BOX CONNECTIONS
Upon opening the control box, each motor connection
port is numbered for ease of identication.
1 2 3 4 5 6
1. Battery Backup Port
2. Backrest Motor
3. Knee-break Motor
4. Bed Lift Motor
5. Spare
6. Port for hand pendant or staff control
To Next Page
