DS471LT4 User Manual 26

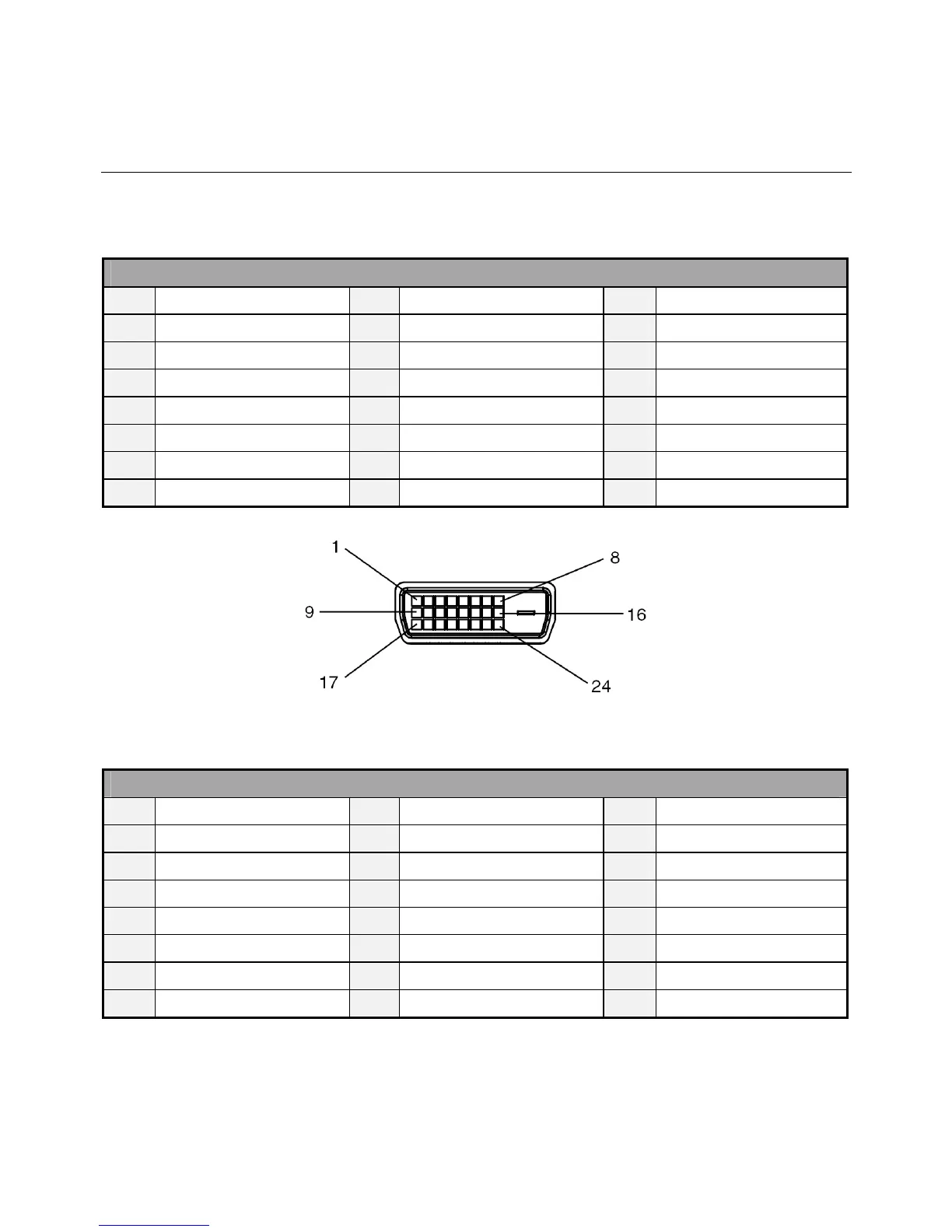

Pin Assignments
Digital RGB Output (DVI-D): DVI
PIN ASSIGNMENT OF DVI CONNECTOR
01 TX2- 09 TX1- 17 TX0-
02 TX2+ 10 TX1+ 18 TX0+
03 Shield (TX2 / TX4) 11 Shield (TX1 / TX3) 19 Shield (TX0 / TX5)
04 NC 12 NC 20 NC
05 NC 13 NC 21 NC
06 DDC-Serial Clock 14 +5V power 22 Shield (TXC)
07 DDC-Serial Data 15 Ground 23 TXC+
08 NC 16 Hot plug detect 24 TXC-
Digital RGB Input (DVI-D): DVI
PIN ASSIGNMENT OF DVI CONNECTOR
01 RX2- 09 RX1- 17 RX0-
02 RX2+ 10 RX1+ 18 RX0+
03 Shield (RX2 / RX4) 11 Shield (RX1 / RX3) 19 Shield (RX0 / RX5)
04 NC 12 NC 20 NC
05 NC 13 NC 21 NC
06 DDC-Serial Clock 14 +5V power 22 Shield (RXC)
07 DDC-Serial Data 15 Ground 23 RXC+
08 NC 16 Hot plug detect 24 RXC-
