Connecting Multiple Displays for Video Wall Applications

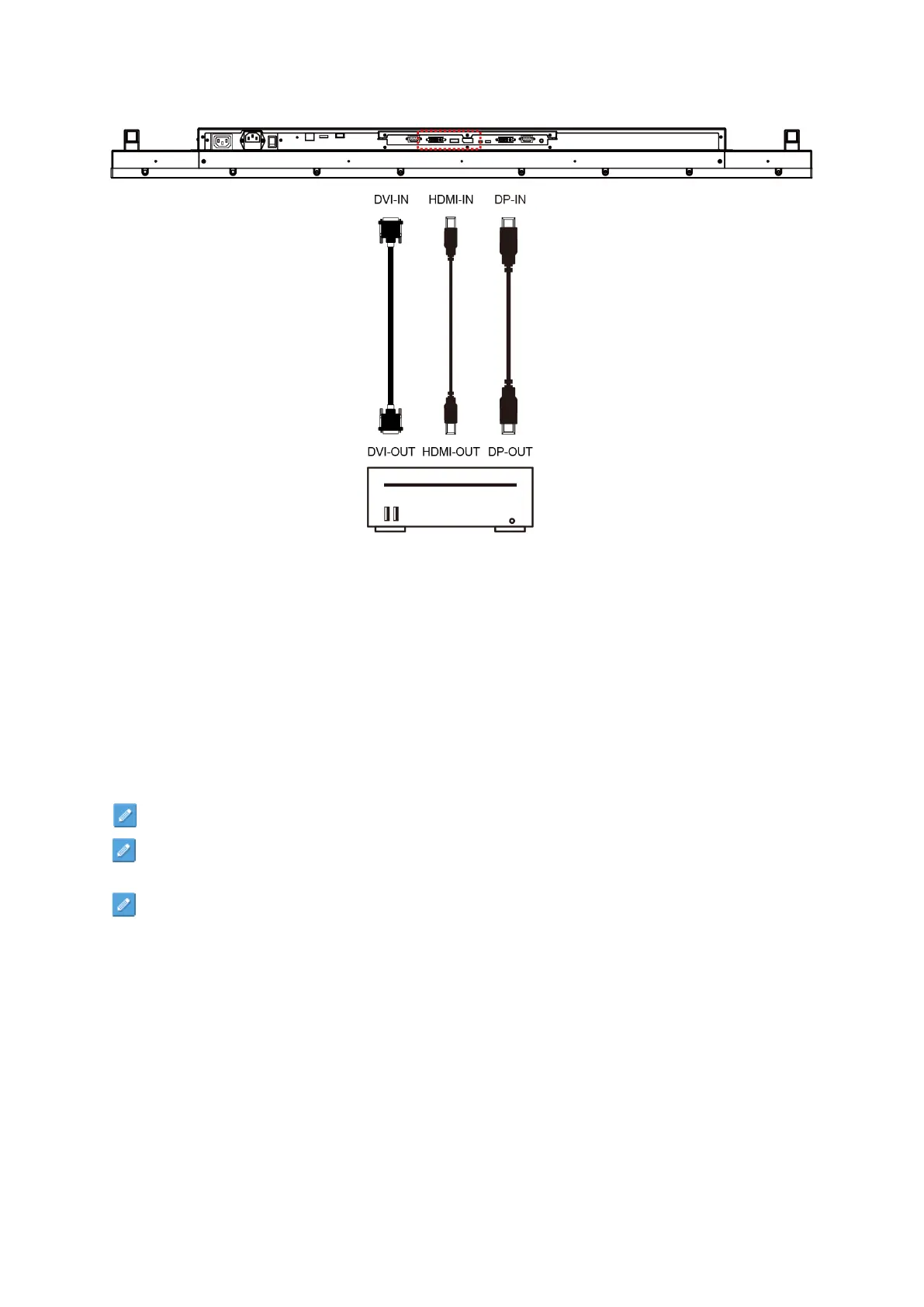

To daisy chain multiple displays for a video wall application, connect a video source to the 1
st
display
into the chain with the supplied DVI cable (or DP cable, HDMI cable) and RS-232 cable. Connect the
DVI-OUT of the 1
st
display to the DVI-IN of the 2
nd
display. Using the RS-232 cable provided,
connect the RS-232 OUT of the 1
st
display to the RS-232 IN of the 2
nd
display. Repeat the
connection for the remaining displays. Use the OSD Menu or Display Manager software to configure
the size of the video wall and the position of each display.
Note: The maximum number of DS552LT5’s in a Video Wall is 15 x 15.
Note: The DynaScan “Display Manager” application is required to be installed on the PC in order
to use the External Control feature.
Note: The Daisy Chain Setting (video wall function) only supports a resolution of 1920 x 1080
(1080p).
