Dynascan DW551DR4 - Input; Output Terminals

15

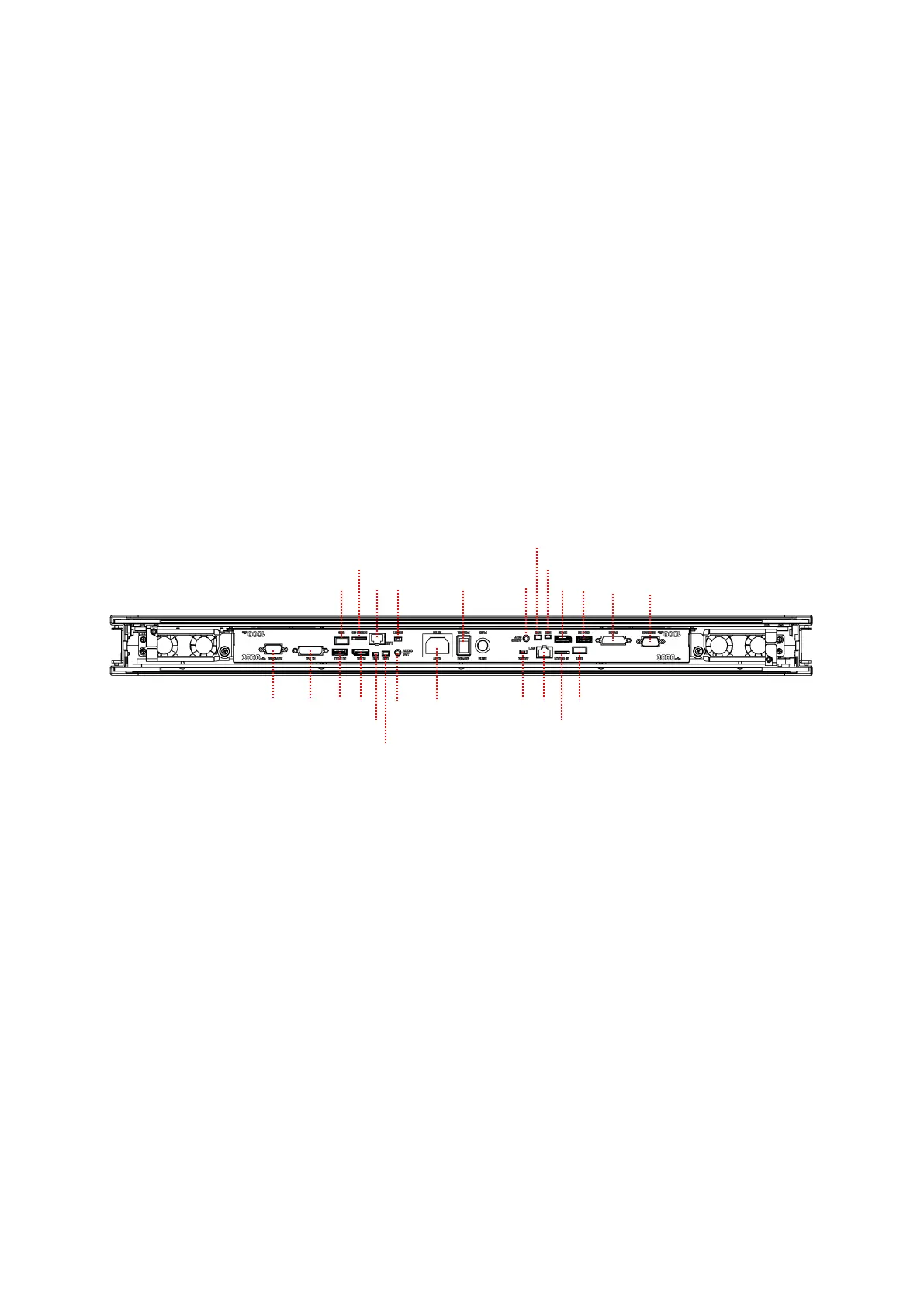

Input / Output Terminals
A. RS-232 (IN): RS232C network input connection for remote control from PC.
B. DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device via a
DVI-HDMI cable.
C. HDMI (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable.
D. DP (IN): Connect the DP output of a PC or an AV device via a DP cable.
E. Extension Connector: Extension Connector for optional IR Extension sensor kit (ESK302).
F. Thermal: Extension Connector for optional Extension thermal kit (ETK302).
G. Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device.
H. AC (IN): Connect the supplied power cord to the wall outlet.
I. Power Switch: Press to switch the main power on/off.
J. Reset: Press to reboot the internal player.
K. RJ-45 (IN): RJ45 network input connection.
L. Micro SD card: Support for up to 32GB.
M. USB port: Support for USB flash drive storage, mouse and keyboard.
A
B
F
C
D
E
E
B
A
F
G
D
C
G
H
I
J
J
K
K
M
M
N
N
