▪ Balanced (XLR) connection from preamplifier/processor to first subwoofer inputs.
▪ The first subwoofer’s input sensitivity should be set to match the preamplifier/processor outputs.
▪ In order to time-align the subwoofers the latency of the second subwoofer needs to be accounted for. This is done by
adding 0.86 m to the left and right distance setting in the first subwoofer. The distance used in the setting should be the
distance from the listening position to the second subwoofer plus 0.86 m. The subwoofer distance should be set as the
distance to the first subwoofer. See Calculation.
▪ Balanced connection from first subwoofer outputs to second subwoofer inputs.
▪ The second subwoofer’s input sensitivity should be set to 0 dB.
▪ Balanced connection from second subwoofer’s outputs to the active main speaker’s inputs.
▪ The second subwoofer should be distance-aligned as described above.
▪ The subwoofers should be level-aligned using their volume setting.
Calculation
First Subwoofer Second Subwoofer
Left Speaker Distance
distance to second
subwoofer + 86 cm
Left Speaker Distance distance to left speaker
Right Speaker Distance
distance to second
subwoofer + 86 cm
Right Speaker Distance distance to right speaker
SUB Distance distance to first subwoofer SUB Distance
distance to second
subwoofer

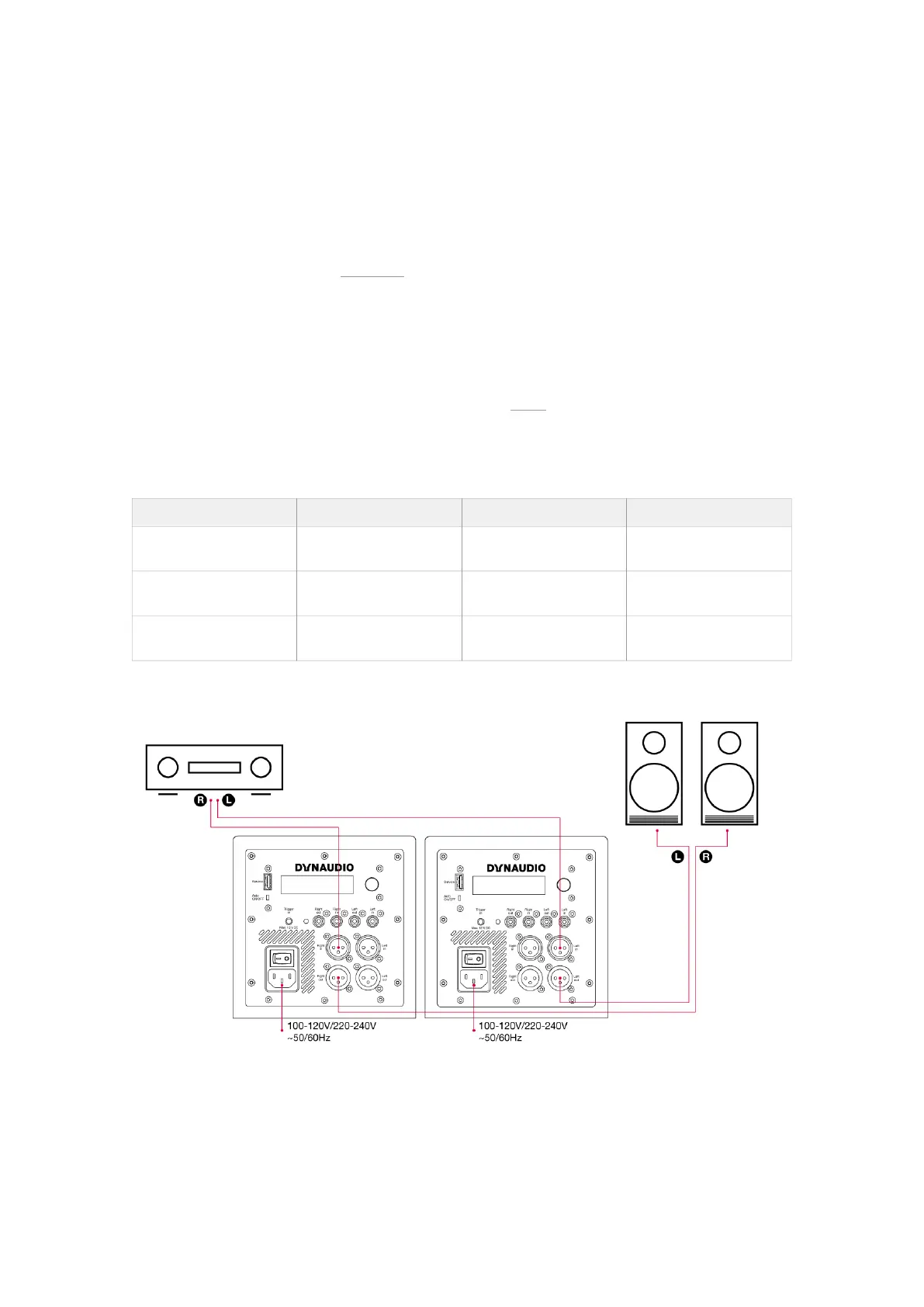

Connection Scheme 3
▪ Stereo subwoofers.
▪ Left balanced (XLR) connection from preamplifier/processor to left subwoofer, left input.
▪ Balanced connection from left subwoofer output to the left active main speaker.
Installation 17
