Connecting

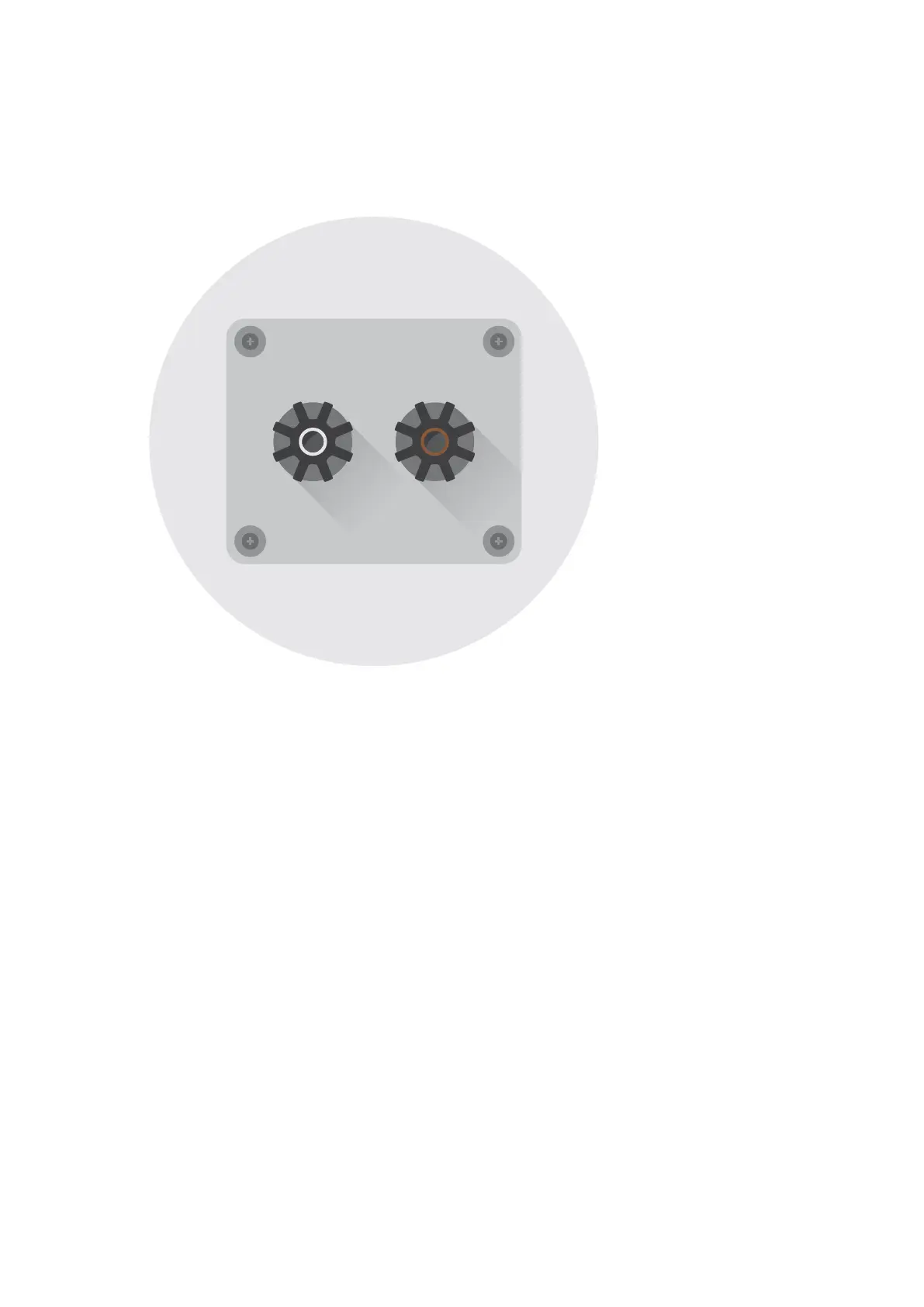

Figure 1: Binding posts at rear of cabinet (example)
Connect a two-pole (+/-) loudspeaker cable to the binding posts, located at rear of the cabinet (see Figure 1). The
high quality, gold-plated binding posts can accommodate dierent connection systems:
4.0 mm banana plugs
The pins can be put directly into the binding post without any tightening necessary.
Cable spades
Loosen the binding posts, insert the spade into the opening, and secure the spade by tightening the posts.
Bare wires
Loosen the binding posts and place the cable into the binding posts. Tighten the posts.
Note
▪ With every connection system, ensure that the contact is tight and has a proper contact area.
▪ Connectors with similar gold plating as binding posts will typically oer the best results and remain corrosion-free.
▪ Please ensure that the positive and negative cables do not make contact with each other. Tighten the posts, and check
the contact after a few days to make sure that it hasn’t loosened.
