DYNO INSTALLATION
Load Cell Calibration
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
12 With the calibration arm and weights secured, click Next to calibrate.
13 Remove the calibration arm and weights and click Finish.

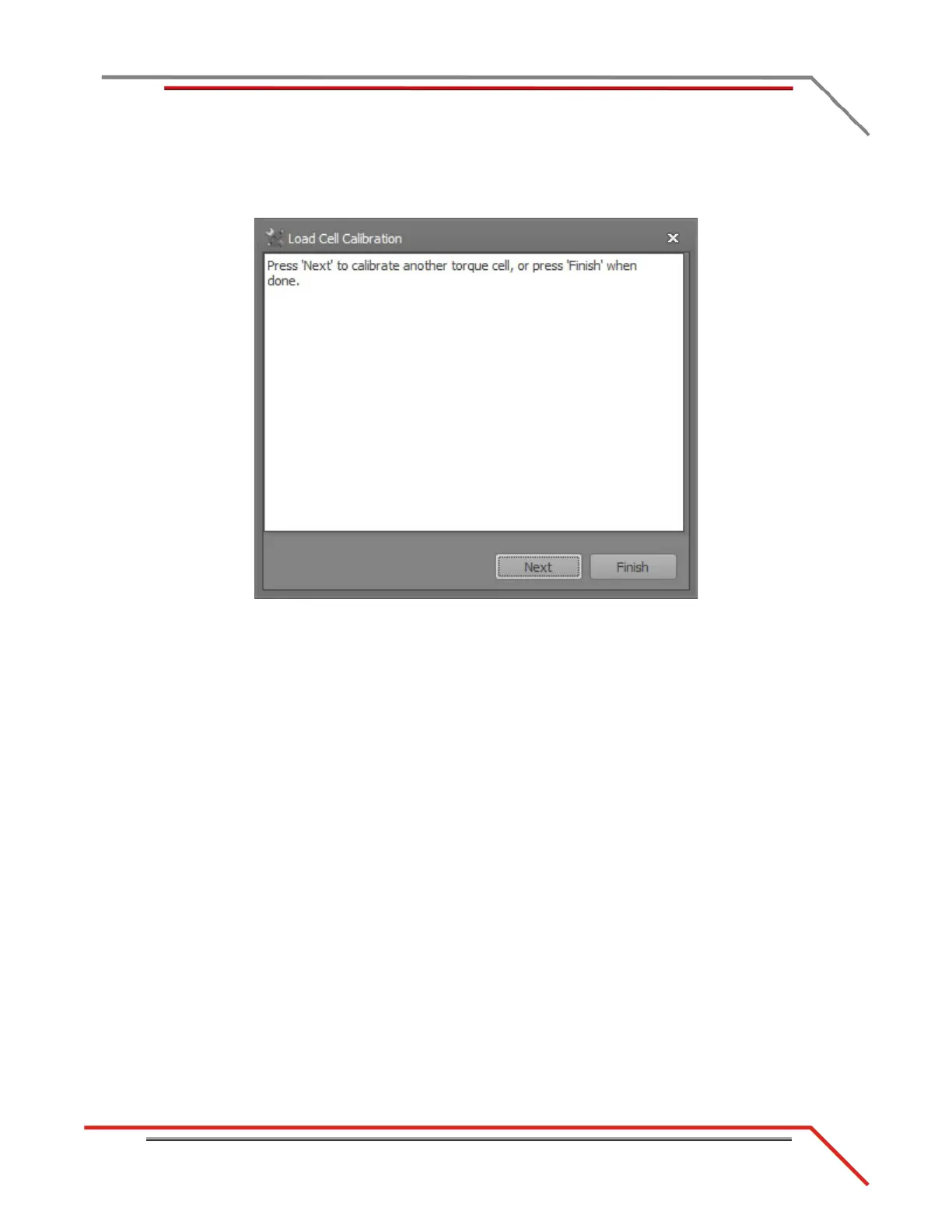

Figure 2-46: Finish Calibration Window
14 Confirm the calibration was successful.
For more information refer to the Power Core Online Help.
