CHAPTER 2
Load Cell Calibration
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
2-48
If you do not have enough room to use the bolt pattern closest to the end of the
calibration arm, use the bolt pattern in the center of the arm as shown in 
Figure 2-45.

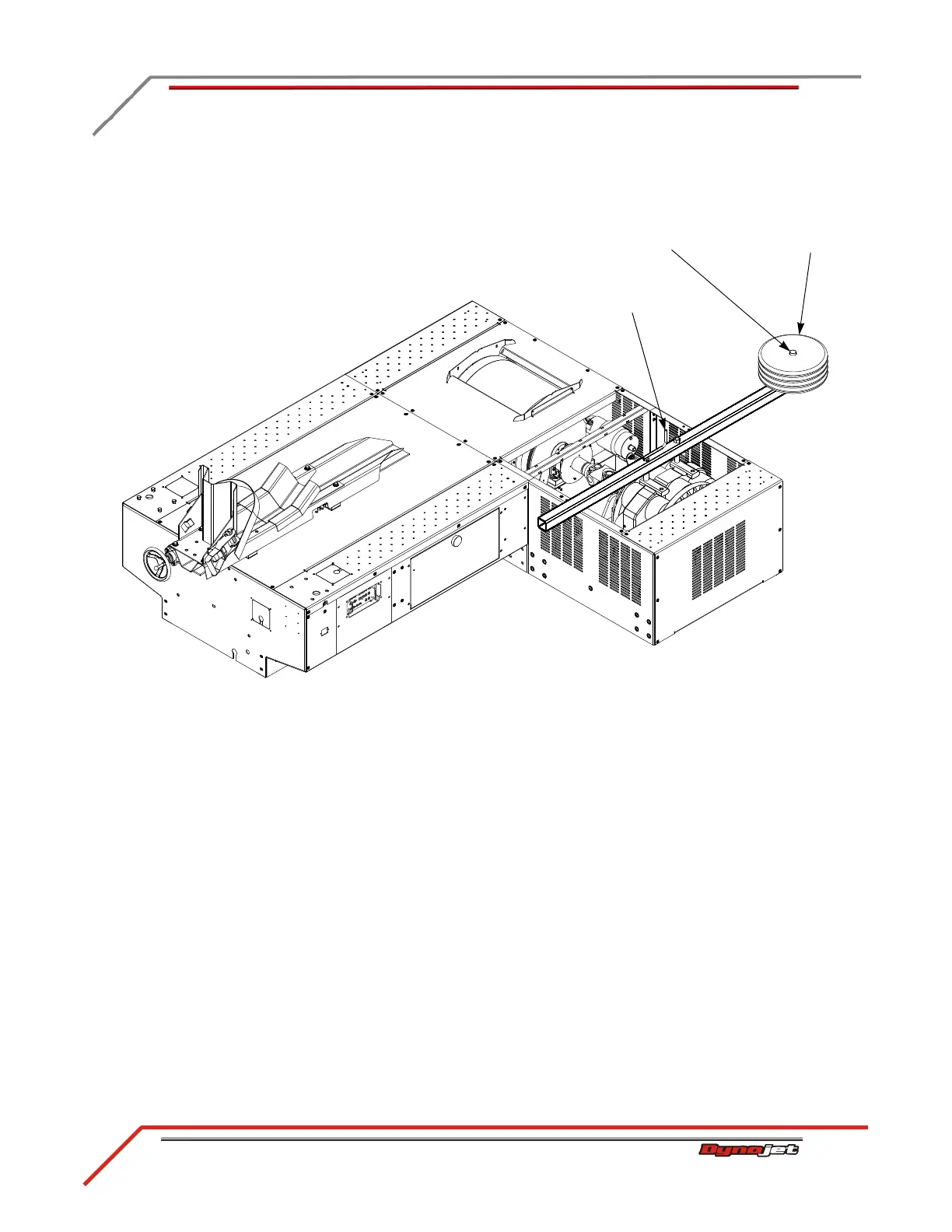

Figure 2-45: Install the Calibration Arm and Weights Using the Bolt Pattern in the Center
T075M
weights
weight support pin
secure arm to brake by
tightening handle
