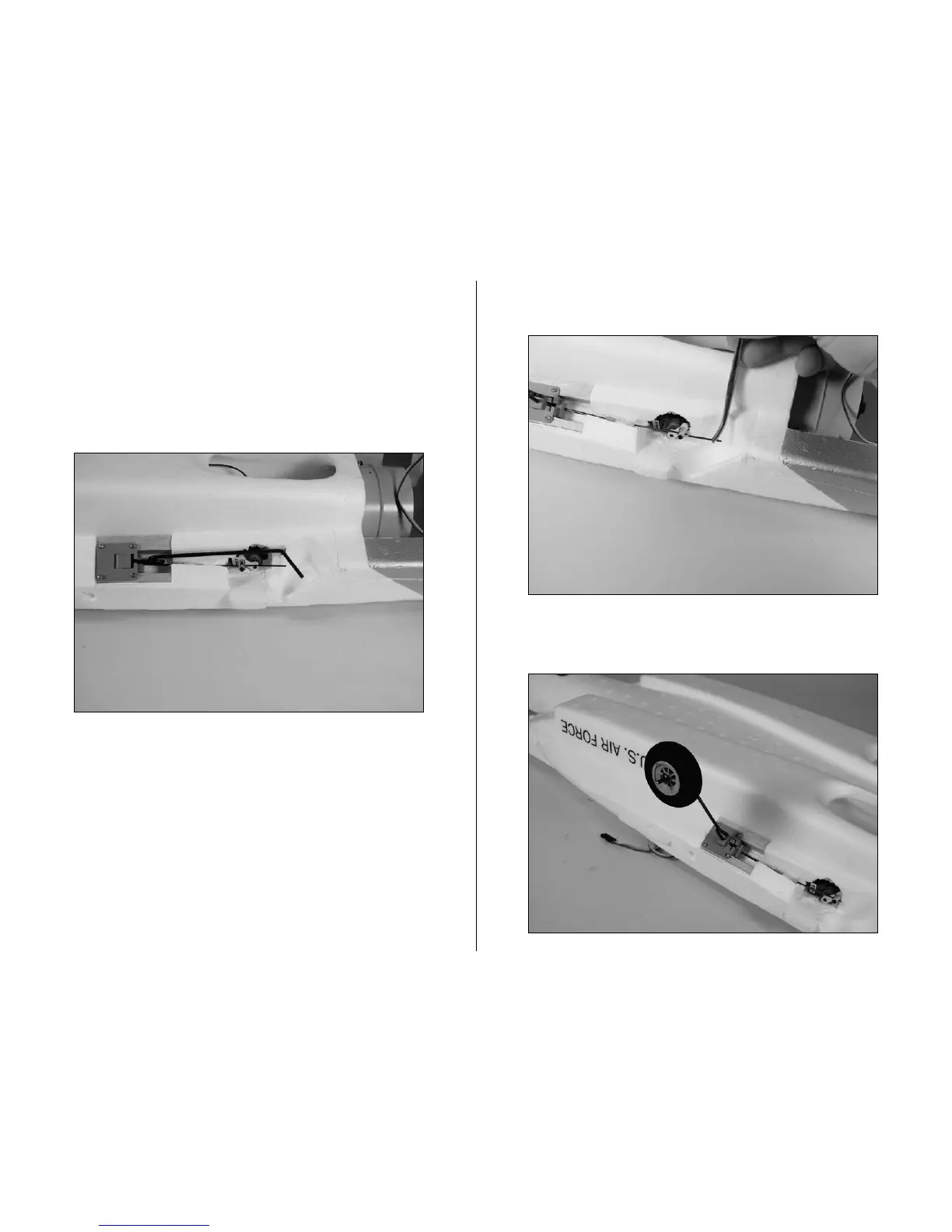

10. Use the radio to move the servo to the "up" position,
then move the retract linkage. Check the line made on
the wire to see if it is in the same location as it was in the
"down" position. If not, use the end point adjustment of
the radio to fine-tune the servo so the line on the pushrod
is in the same position when the servo is in both the "up"
and "down" positions. Once the servo has been adjusted,
use a 1.5mm hex wrench to tighten the setscrew and
secure the pushrod.
11. Use side cutters to cut the excess wire that may
interfere with the operation of the retract.
12. Slide the wheel onto the gear. Press a spring washer
onto the wire to secure the wheel.
