22 E-flite F-15 Eagle ARF Assembly Manual

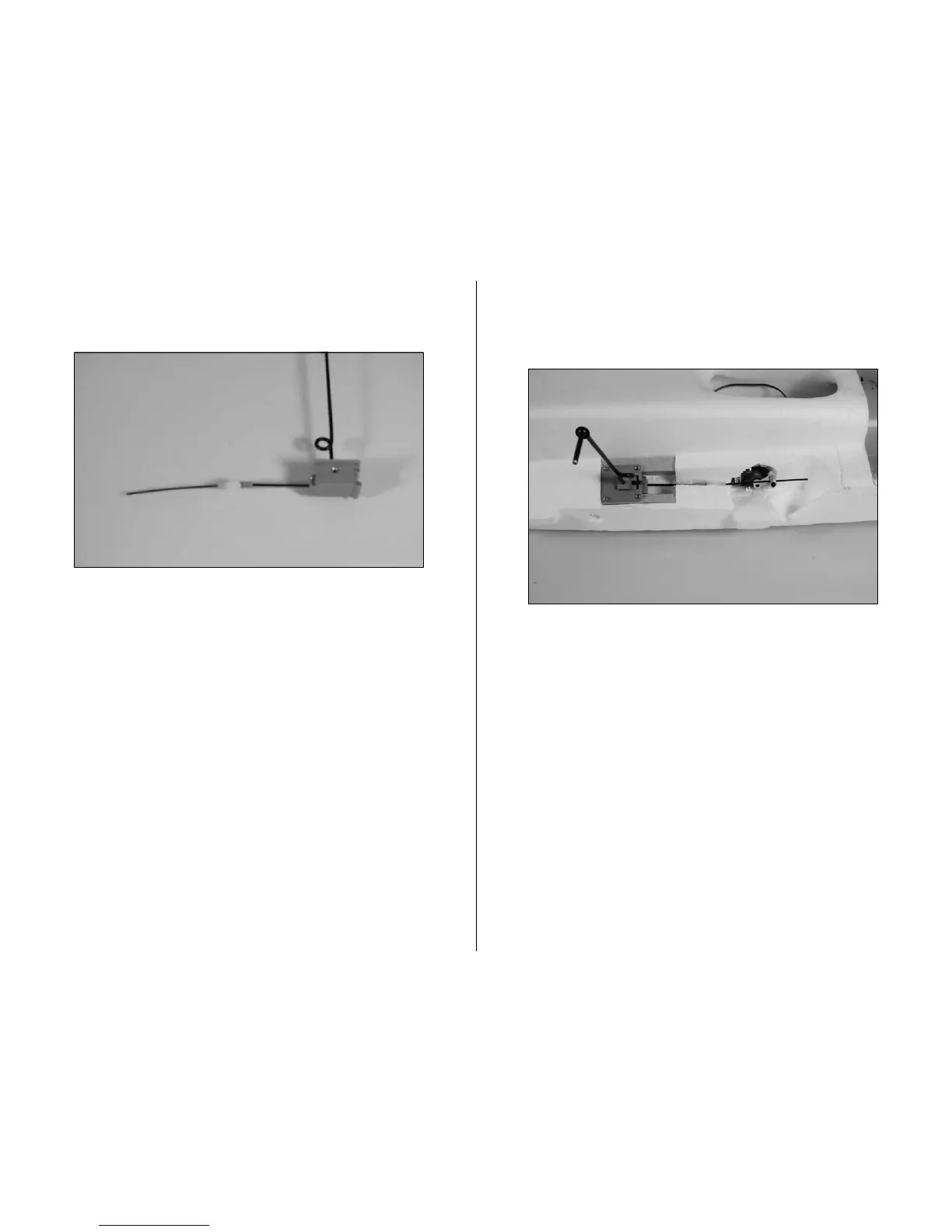

8. Attach the clevis from a 127mm pushrod to the retract
actuator. Slide the tubing over the clevis to secure the
clevis and prevent it from opening accidentally.
Important: You may need to shave the plastic retract
connector on the retract actuator arm to ensure the clevis
pin snaps closed.
9. Move the retract to the "down" position. Use the radio
system to move the retract servo to the "down" position.
Mark the pushrod wire against the connector. Do not
tighten the setscrew at this time.
To Next Page
