8 E-flite F-15 Eagle ARF Assembly Manual

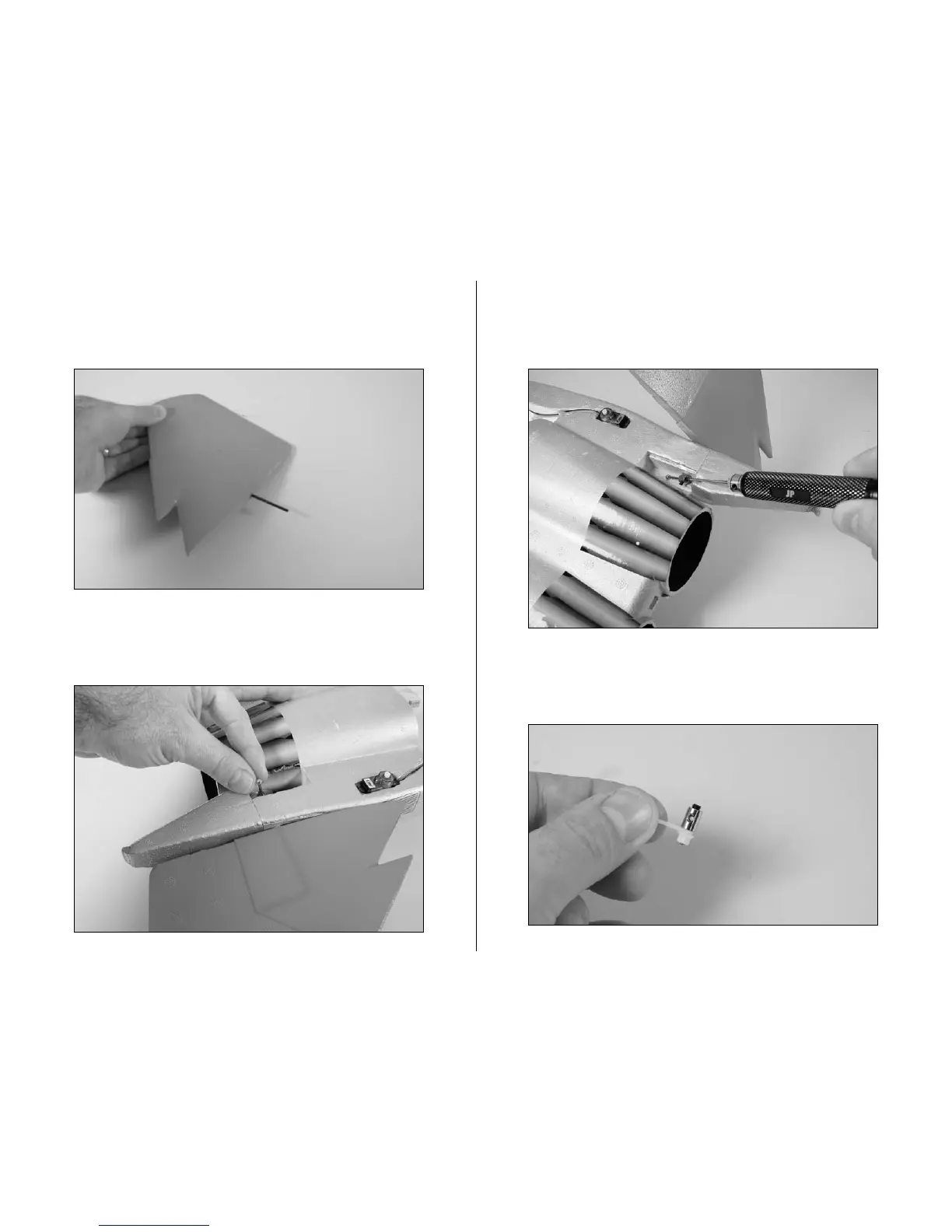

2. Locate the stabilator and look at the rod of the
stabilizer. You will note that one side of the control rod
has a flat area ground onto the rod. This will face to the
top of the fuselage when the stabilator is installed.
3. Slide the appropriate stabilator into the bushing in the
fuselage. As you slide the stabilator in position, slide it
into one of the control ball ends.
4. Once the stabilator is positioned, rotate it so the
setscrew can be accessed. After applying a drop of
threadlock on the setscrew, use a 1.5mm hex wrench to
tighten the setscrew onto the flat of the control rod.
5. Use a hobby knife to enlarge the outer hole of a servo
arm. Install the pushrod connector and secure it, using
the nylon nut supplied with your model.
