The MicroDock
E-MU 1616/1616M CardBus Digital Audio System 19
Computer Speaker Analog Outputs
These stereo mini-phone (3.5mm) jacks duplicate line level outputs 1-3 with a lower
output level to accommodate consumer speakers. These line level outputs are designed
to interface easily with powered speakers.
MIDI 1 & 2 In/Outs
MIDI input and output ports allow you to interface any type of MIDI equipment such as
keyboards, effect units, drum or guitar controllers (anything with MIDI). The MIDI
drivers were installed when you installed your PatchMix DSP software and the MIDI
ports will appear in your system control panel under “Sounds and Audio Devices”.
There are two completely independent set of MIDI input and output ports on the
MicroDock, which can be assigned in your specific MIDI applications.

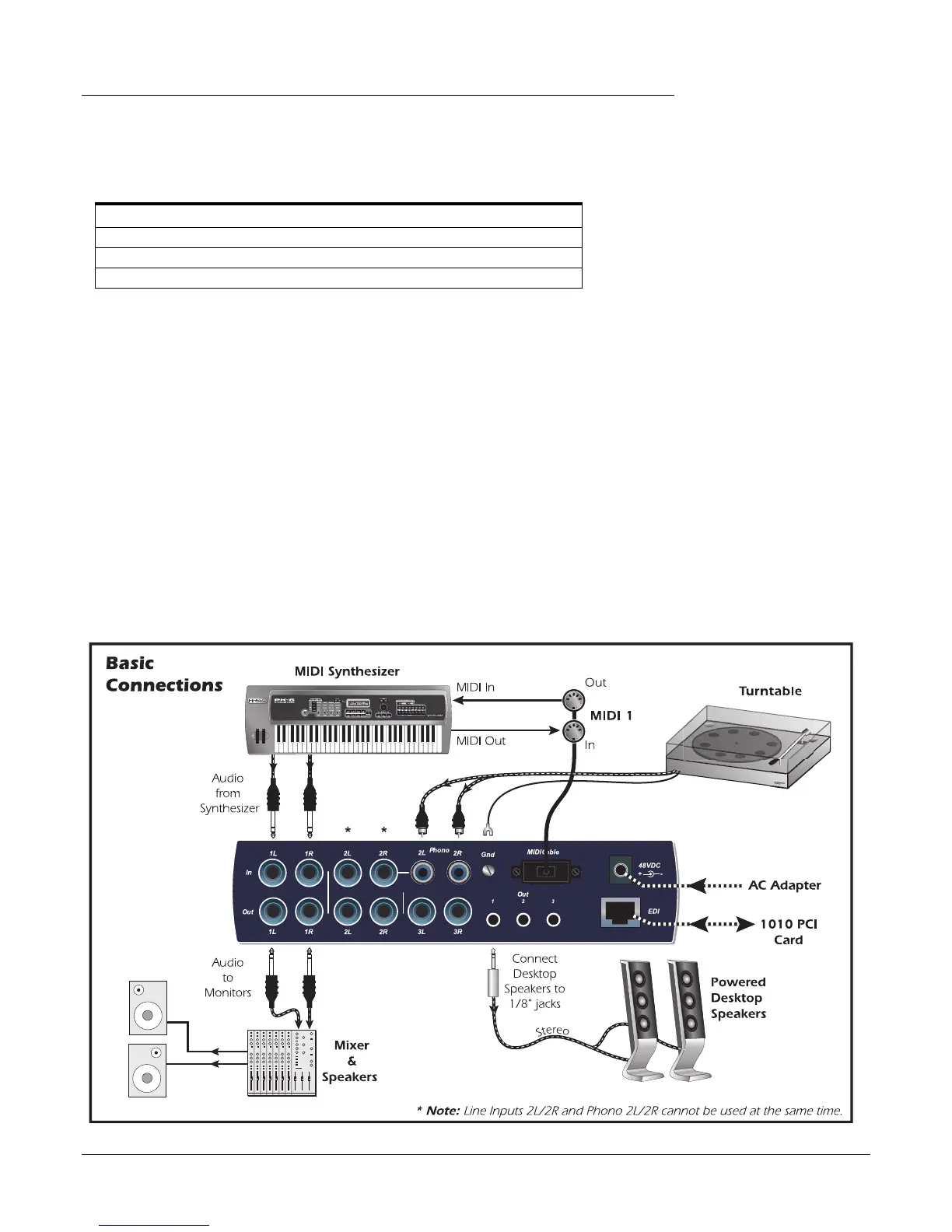

Connect the MIDI breakout cable to the D-connector on the MicroDock. Connect MIDI
Out to the MIDI In port of your synthesizer and MIDI Out of your synth to MIDI In of
the MicroDock MIDI cable.
EDI Connector (Card)
Connects to the MicroDock to the E-MU 02 CardBus card using a CAT5-type computer
cable. The cable supplied with the MicroDock is specially shielded to prevent unwanted
RF emissions.
Computer Speaker Output Duplicates Line Level Output
1 L/R Tip = 1L Ring = 1R
2 L/R Tip = 2L Ring = 2R
3 L/R Tip = 3L Ring = 3R
