4 - The PatchMix DSP Mixer
Mixer Strip Creation
E-MU 1616/1616M CardBus Digital Audio System 29
Mixer Strip Creation
f Adding or deleting a
strip “defragments” the
effect/DSP resources. If
any effect you wish to
add is unavailable
(greyed-out), try deleting
an unused strip to free up
resources.
PatchMix DSP is a dynamically configurable mixer. Each mixer session can contain an
arbitrary number of strips up to a limit set by the number of available input sources and
available DSP resources.
You must create a strip for each mono or stereo audio input, and for each ASIO stream
you wish to use in your software application. This is important because outputs will not
appear in your software application until you have created ASIO strips in PatchMix.
• Host refers to a computer application such as Cubase.
• Physical refers to hardware input or output such as a output jack.
To Add a New Strip:

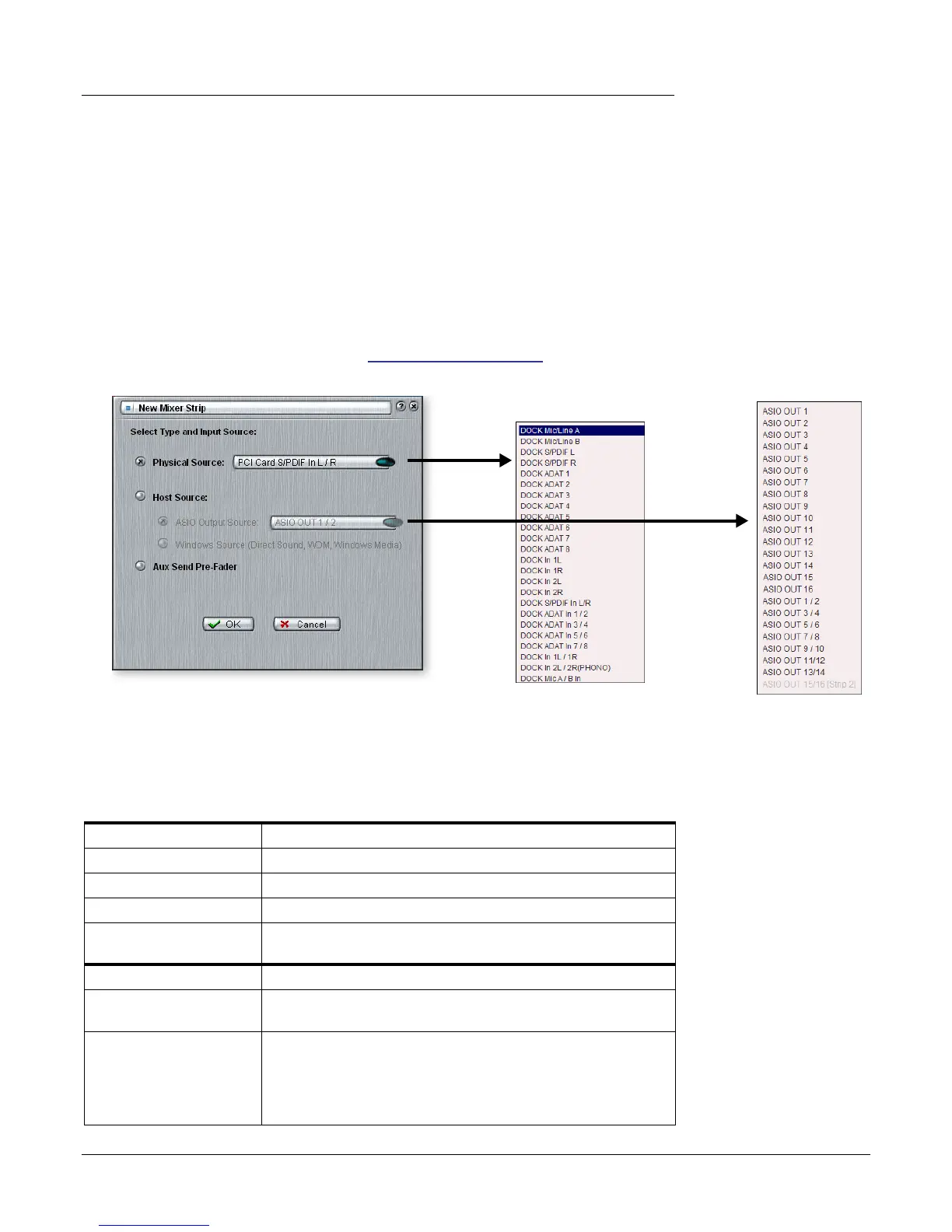

1. Click on the New Mixer Strip button. See Overview of the Mixer. The New Mixer
Strip Input Dialog appears:
2. Select the desired input to the mixer strip from the following choices:
Physical
Sources
ASIO
Sources
• Physical Source: Analog or digital input (Analog, ADAT, S/PDIF)
• Host - ASIO Source input Streaming audio from an ASIO software application.
• Host - WAVE input Window sound sources — WAVE, WDM, CD
PHYSICAL SOURCE Function
Physical: Dock Mic/Line 24-bit mono or stereo analog input on the MicroDock.
Physical: Dock In 24-bit mono or stereo analog inputs on the MicroDock.
Physical: Dock S/PDIF 2 channel digital audio from the S/PDIF input on the MicroDock.
Physical: Dock ADAT 2 channel (x4 strips) digital audio from the ADAT input on the
MicroDock.
HOST SOURCE Function
Host ASIO Output Source
From software application
Mono or stereo digital audio from an ASIO source (i.e. recording
or other software app.) ASIO Out 1-16, ASIO 1/2, 3/4, etc.
Host Windows Source
From Windows
Direct Sound, WDM, Windows Media
(Sound generated or handled by Windows.)
WAVE 1/2 - Default stereo source such as game sound, CD
player, beep sounds, etc.
WAVE 3/4, WAVE 5/6, WAVE 7/8 - Additional WDM channels
f CDs & MP3s: The
WAVE 1/2 strip is used
to playback CDs,
Windows Media Player,
and Direct Sound.
