3-Band EQ
This versatile equalizer provides two shelving filters at the high and low ends of the
frequency range and a fully parametric band in the center. Up to ±24 dB of boost or cut
is provided for each band.
E Note: The Wet/Dry
Mix control on an
equalizer should normally
be set to 100% wet or
unpredictable results may
occur.
Setting up a Parametric EQ
1. Turn up the gain on the band you are working with. This allows you to easily hear
the effect of the filter.
2. Reduce the bandwidth if you are working with a mid-band.
3. Adjust the Center Frequency to “zero-in” on the frequencies you wish to boost/cut.
4. Set the Gain to a positive value to boost frequencies or to a negative value to cut out
frequencies.
5. Widen the Bandwidth to create a more natural sound.
6. Adjust and tweak as needed.
Parameter Description
High Shelf Gain Sets the amount of cut (-) or boost (+) of the high frequency shelf.
Range: -24dB to +24dB
High Corner Freq. Sets the frequency where the signal begins getting cut or boosted with
the High Gain control. Range: 4kHz to 16kHz
Mid Gain Sets the amount of cut (-) or boost (+) of the mid frequency band.
Range: -24dB to +24dB
Mid Freq. 1 Sets the range of frequencies to be cut or boosted with the Mid Gain
control. Range: 200Hz to 3kHz
Mid Bandwidth Sets the width of the frequency range for the Mid Center Frequency
band that will be cut or boosted by the Mid Gain control. Range: 1
semitone to 1 octave
Low Shelf Gain Sets the amount of cut (-) or boost (+) of the low frequency shelf.
Range: -24dB to +24dB
Low Corner Freq. Sets the frequency where the signal begins getting cut or boosted with
the Low Gain control. Range: 50Hz to 800Hz

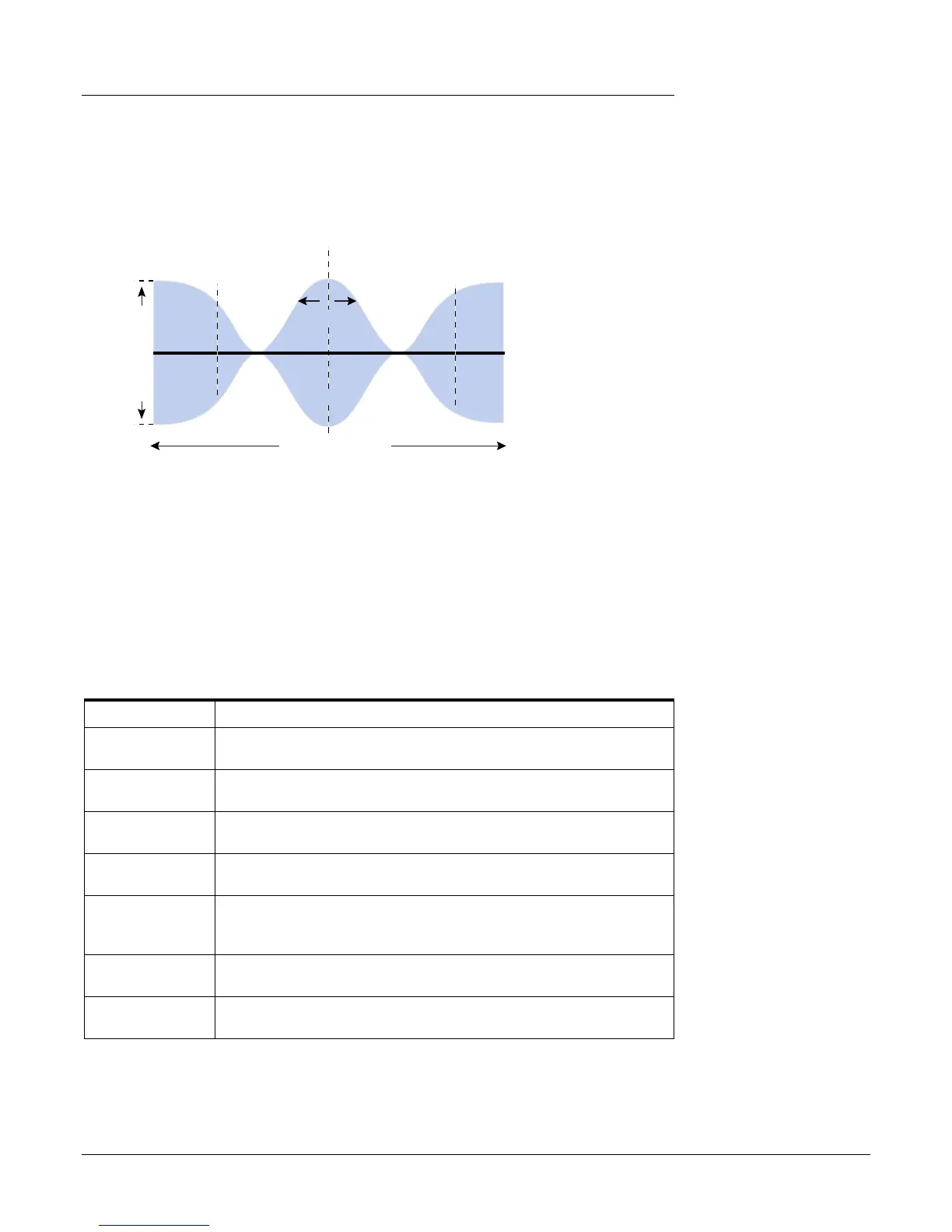

Frequency
Low Shelf Mid Band High Shelf
Boost
Gain
Cut
Corner
Freq.
Corner
Freq.
-
+
Center
Width
+24dB
-24dB
