Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notices, Cautions Warnings and Dangers.
B
FRAME

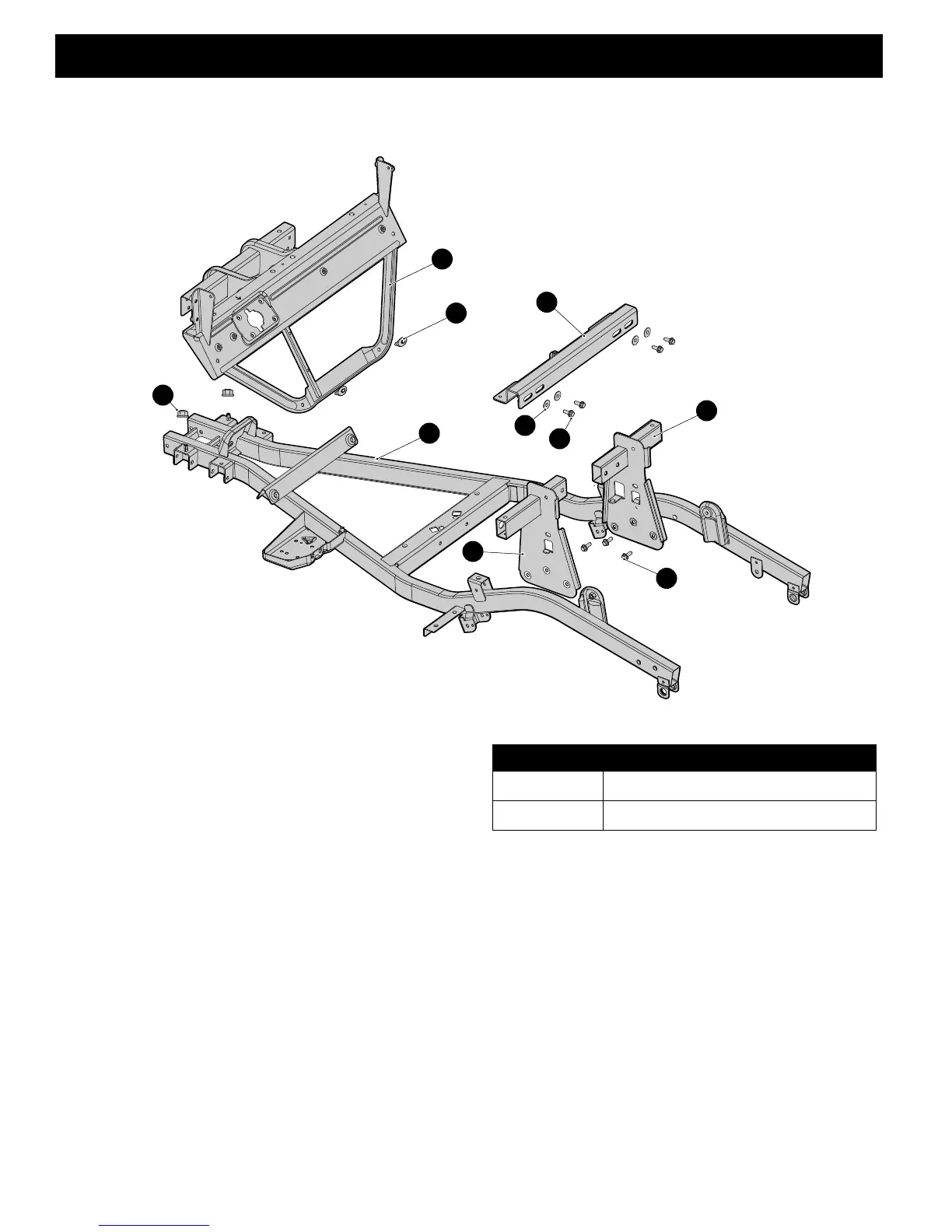

The vehicle frame is made up of five components, the
frame weldment (1), the IP support weldment (2), the
driver side seat support weldmtent (3), the passenger
side seat support weldment (4) and the seat belt center
front weldment (5).
The replacement of frame components will require the
removal of the Ops structure.
The front cowl, instrument panel, rear body and floor-
board will need to be removed before replacing the IP
support weldment (2).
The seat supports (3 & 4) and the seat belt center front
weldment can be replaced without removing the rear
body.
ITEM TORQUE SPECIFICATION
6, 7 15 - 17 ft. lbs. (20 - 23 Nm)
8, 10 32 - 36 ft. lbs. (38 - 43 Nm)
