BODY
Page C-7
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notices, Cautions, Warnings and Dangers.
B
B
Rear Bumper (Ref. Fig. 14)
Tool LIst Qty.
Ratchet........................................................................ 1
Ratchet Extension, 9".................................................. 1
Universal Joint............................................................. 1
Socket, 15mm ............................................................. 1
Torx Bit, T-47IP............................................................ 1
Torque Wrench, ft. lbs. ................................................ 1
NOTE — The rear bumper can be removed without
removing the rear body of the vehicle.
1. Remove two torx head screws (38) from the bag well
floor. If the rear body has been removed from the vehi-
cle go to step 2.
2. Remove four hex head bolts (39) securing the bumper
to the vehicle frame.
3. Pull the rear bumper backwards off the frame; lifting
the rear edge of the body may make removal easier.
Installation is in the reverse order of removal.
Replace any worn or damaged hardware with new as
required.
Floorboard
Tool LIst Qty.
Torx Bit, T-50................................................................1
Ratchet ........................................................................1
Insulated Wrench 9/16"................................................1
Torque Wrench, ft. lbs..................................................1
Before the floorboard can be removed the top and wind-
shield, the lower and upper rocker panels, the floor mat,
the pedal cover, accelerator and brake pedal assem-
blies, the instrument panel with trim, the seat back and
rear body must be removed. If the vehicle is equipped
with a 2 + 2 rear facing seat, this must also be removed.
1. Remove the two Torx screws (44) securing the front
seat support frame (45) to the floorboard (48).
2. Remove two Torx socket head cap screws (46) and
washers (47) that secure the floorboard (48) to the
vehicle frame
Installation is in the reverse order of removal.
Replace any worn or damaged hardware with new as
required.

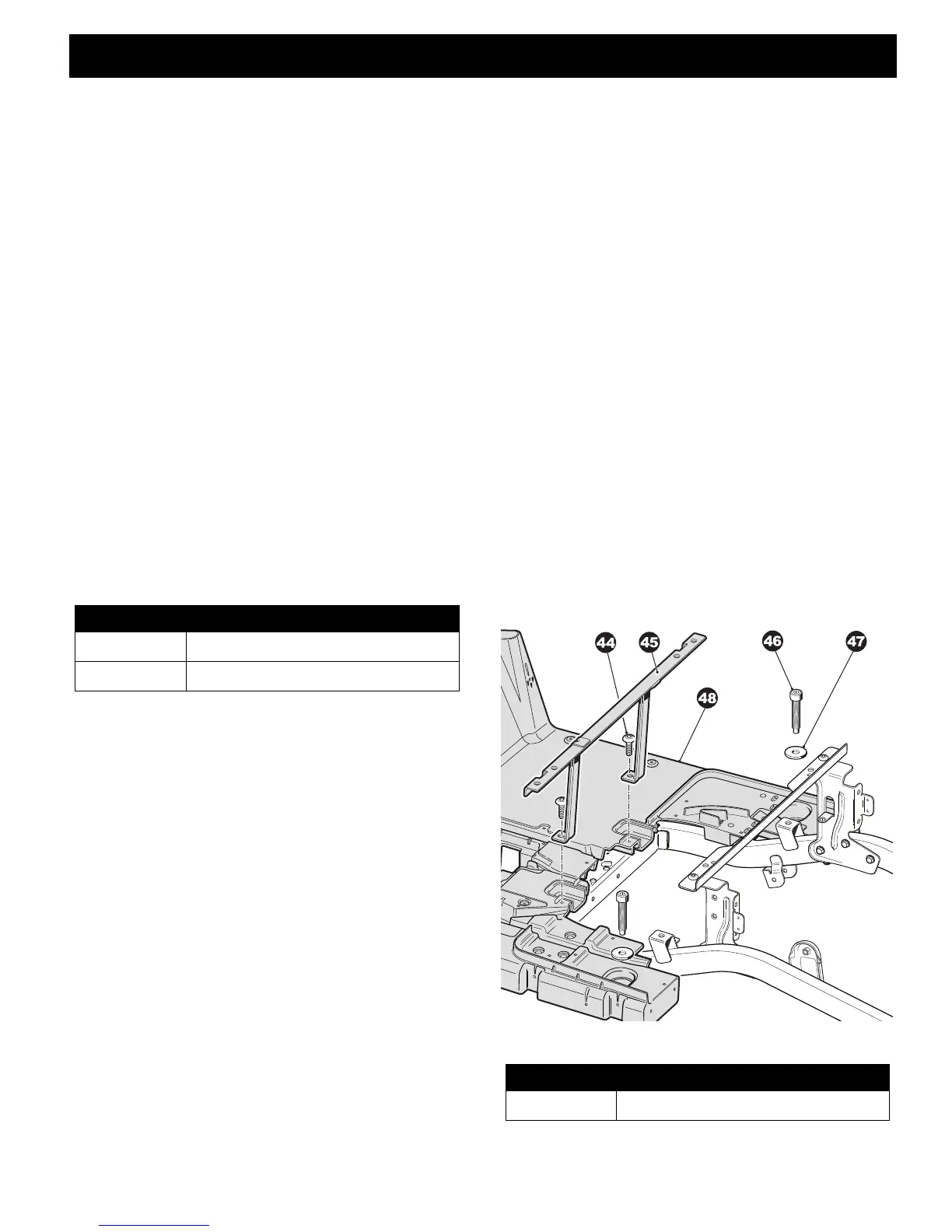

Front Seat Support and Floorboard
ITEM TORQUE SPECIFICATION
38 2 - 4 ft. lbs. (4 - 6 Nm)
37 10 - 13 ft. lbs. (14 - 17 Nm)
ITEM TORQUE SPECIFICATION
44, 46 13 - 16 ft. lbs. (18 - 22 Nm)
