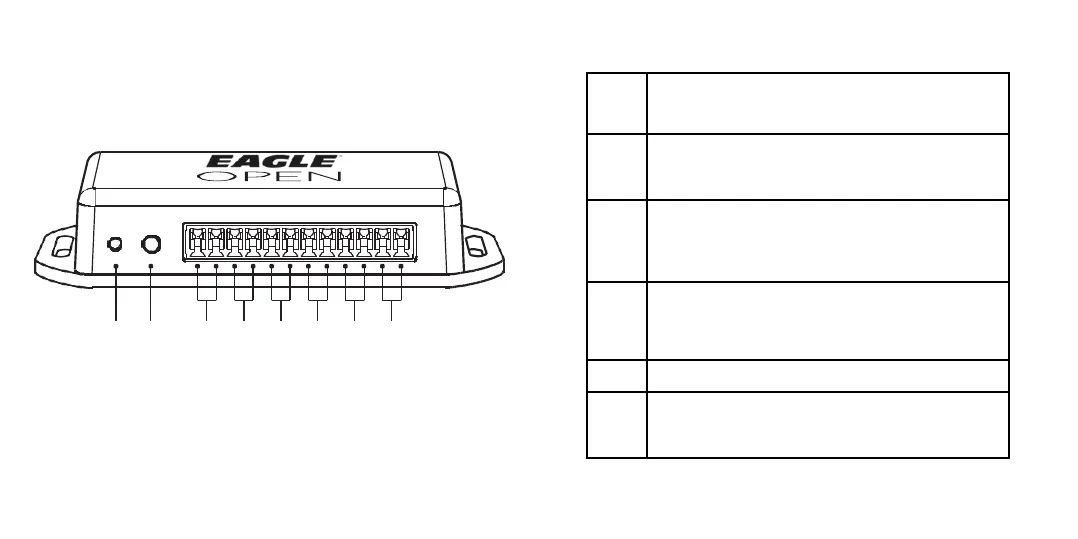

Eagle Access Control Systems EAGLE Open - EAGLE Open Port Definitions; Output Ports (OUT1, OUT2); Input Ports (IN1, IN2); Power and Reserved Ports (PWR, NC)

RESET STATUS
OUT1 OUT2
IN1 IN2
NC PW
R
OUT1
First output of the device.Shouldbe connectedto
the appropriateinputof the mainunit of the gate
system (type: drycontact)
OUT2
Secondoutputof the device.Shouldbe connectedto
the appropriate input of the main unit of the gate
system (type: drycontact)
IN1
First inputof the devicefor detectingclosed position of the
controlledgate in associationwithOUT1 (type:dry contact)
Theusage of the inputis optional,can be enabled/disabled
in the application.
IN2
Secondinputof the devicefor detectingclosed position of
the controlled gate in association with OUT2 (type: dry
contact) The usage of the inputis optional,can be
enabled/disabled in the application.
NC
Not connected. Reserved for futureuse.
PWR
Power supply input of the device (polarity independent, for
more informationplease see the electrical specificationof
the deviceat the end of thisdocument)
