Item Part No. Description
F9801 CX-098-020000-0
098 Pressing Arm
(Right)
F9802 B-024-050101-1
Cross Head Screw
M5x10
F9803 S-030-010414-0 Pneumatic Valve
F9804 CX-005-200000-0
Raise-Fall Switch Base
Plate
F9805 B-017-040161-0
Cross Flat Head Screw
M4*16
F9806 B-017-040301-0
Cross Flat Head Screw
M4*30
F9807 B-007-100121-0
Hex Socket Head Bolt
M10*12
F9809 S-010-050004-0
Quick Straight Union
M5-4
F9810 B-010-050161-0
Hex Socket Head Bolt
M5*16
F9813 S-012-010406-0 Quick Union 1/4-6
F9814 B-004-040001-1 Nut (Silver) M4
F9815 S-030-010818-0 Raise-Fall Control Valve
F9816 S-023-010801-6 Mufer (Brass)
F9817 S-012-010406-0 L-Union 1/4-6
F9814 B-004-040001-1 Nut (Silver) M4
F9815 S-030-010818-0 Raise-Fall Control Valve
F9816 S-023-010801-6 Mufer (Brass)
F9817 S-012-010406-0 L-Union 1/4-6
F9818 S-013-104206-0 T-Union 2X 6-4
F9820 S-017-010806-2 T-Union 1/8-2*6
F9823 C-007-181000-0
Control Valve Protect
Cover Right)
F9827 CA-005-209800-2 Complete 098 Cylinder
F9828 S-012-010406-0 Quick Union 1/4-6
Item Part No. Description
F9829 CX-098-040000-0
Pressing Roller
Bracket Support
F9830 C-098-060100-0 Tire Pressing Roller 1
F9831 B-055-300002-0 Snap Ring 30(Hole)
F9832 CX-098-050000-0
Tire Pressing Roller
Shaft
F9833 C-098-060200-0 Tire Pressing Roller 2
F9800
Complete 098
Assist Arm

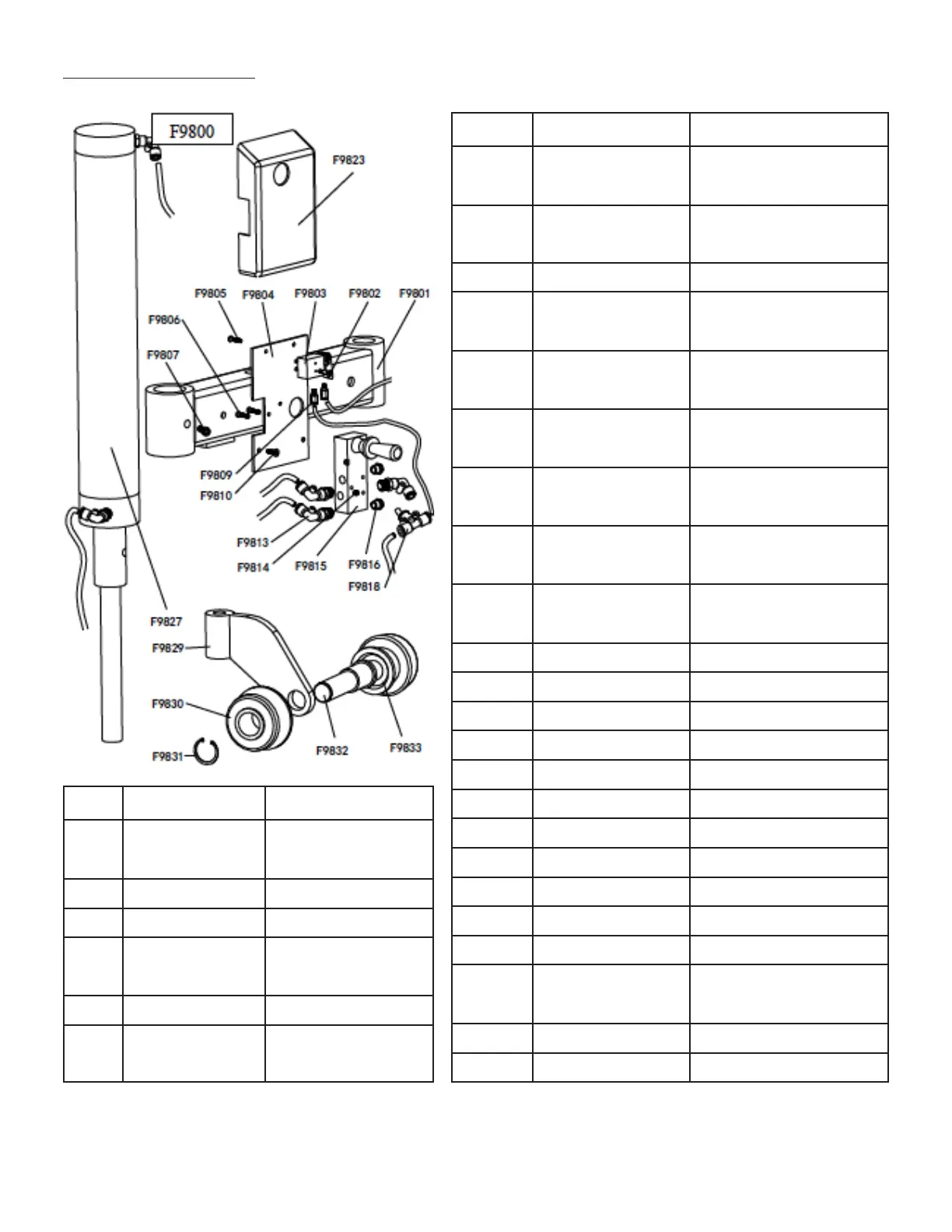

7. EXPLOSIVE VIEW 9
