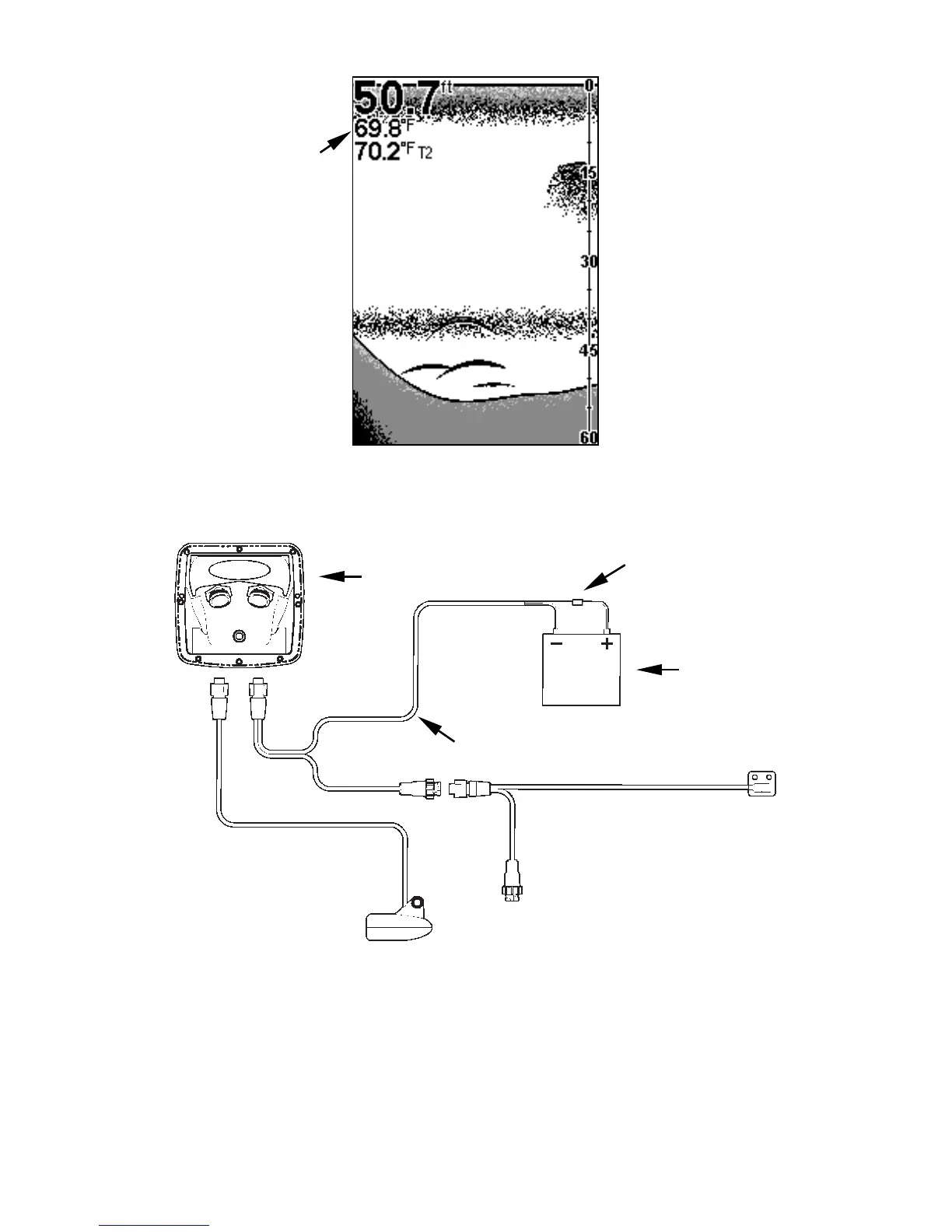

Full Chart page showing dual temperature display.
See the following charts for sample sensor combinations and cable con-
nections.
TriFinder 2 with external temperature sensor. This unit has a power
cable with a connector for sensors. Transducers with built-in temp
sensors are not compatible with TriFinder 2 units.
TS-1X
temperature sensor
Transducer with no
temperature sensor
Power/sensor cable
12-volt battery
3-amp fuse
TriFinder 2
rear view
Temp sensor display,
from an external TS-1X,
or combo speed/temp
sensor
