of the bracket base firmly against the cables, thus pinning them in place
against the side of the hole. Finally, fasten the bracket to the dash.
Attach the unit to the gimbal bracket using the supplied gimbal knobs
and washers. Slide the rubber washers onto the gimbal knobs then
loosely screw the knobs into their sockets. Slide the unit into the
bracket with the rubber washers to the outside of the bracket arms. Tilt
the unit to the desired viewing angle and tighten the knobs finger tight
Portable Sonar Installation
Like many Eagle products, the TriFinder 2 sonar is capable of portable
operation by using the optional PPP-10 portable power pack. The power
pack and portable or floating transducers expand the uses for your so-
nar. You can use your TriFinder 2 on your boat or take it to the dock,
on a float tube, on an ice fishing trip or use it as a second sonar in a
friend's boat.
The PPP-10 package includes the power pack, battery adapter and a
portable transducer. Batteries are not included. The power pack has a
storage compartment for the portable transducer. The pack can be used
with eight "D" cell alkaline batteries or an optional sealed, rechargeable
battery. For set-up directions, refer to the pack's instruction sheet, part
988-1047-45.

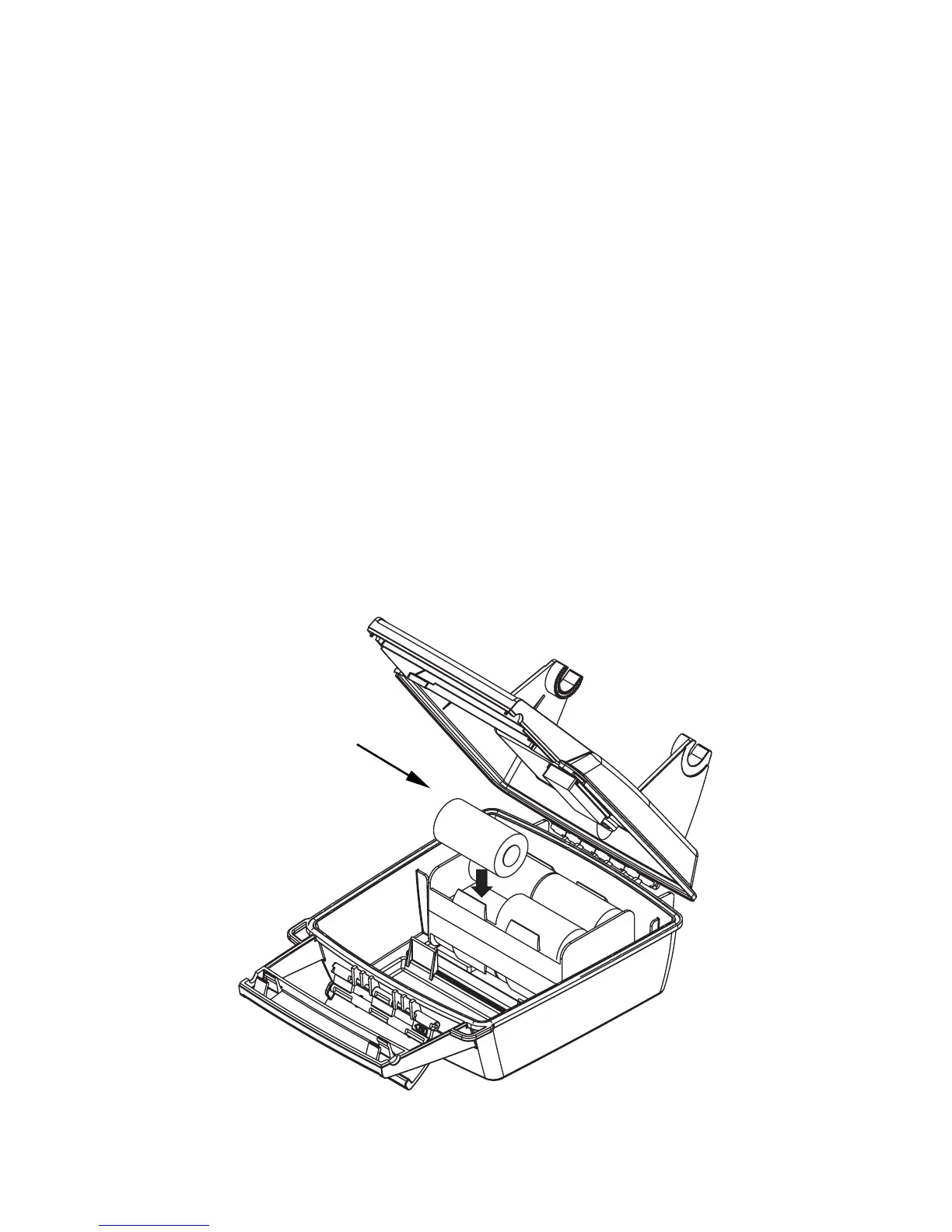

Install batteries in power case battery adapter.
"D" cell battery
