Fasten all the front clear panels and back panels:
1. Fit the 2 pieces of Aluminum profile moulding No.5 onto the No.3 fixed clear panels and No.4 side clear panel. Then use a philips screwdriver
to fasten the 2 pieces of aluminum profile moulding to the No.1 side panel and No.2 back panel with 4x50mm self- locking screws.

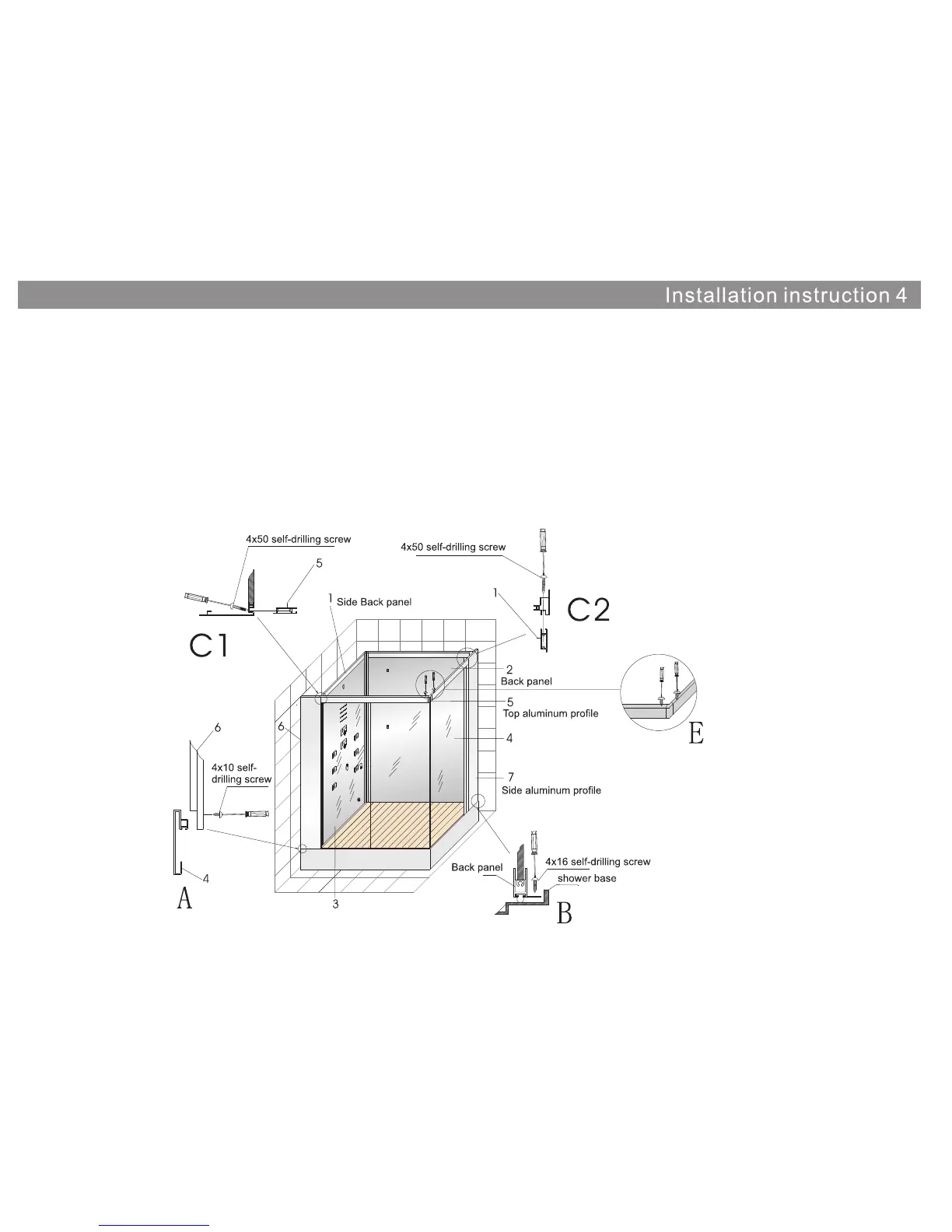

As illustrated in Drawing C1 and C2.
2. Use the plastic 90 degree bracket to join the 2 pieces of aluminum profile moulding together. Then use a screwdriver to fasten them
to the No.3 and No.4 clear panels with4x50mm screws. As illustrated in drawing E.
3. Use a philips screwdriver to fasten the aluminum profile of No.6 clear panel to the skirt of the shower base with 4x10mm screws.
Illustrated in Drawing A.
4. Fasten the No.1 and No.2 panels to the shower base with 4x16mm screws. Illustrated in drawing B.
Fixed front clear Panel
Fixed clear End panel
